Name: SO01221
SKU: 70251

Visa alla mått +

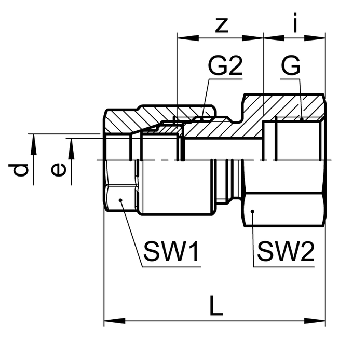

Artikelnummer	d	GxG2	bar	SW1	SW2	L	i	z	e
2481201060	4	1/8x1/8	125	12	14	31	10	14	4
2481201065	4	1/4x1/8	125	12	17	32.5	11	15	4
2481201082	5	1/8x1/8	125	12	14	31	10	14	4
2481201084	5	1/4x1/8	125	12	17	34	11	15	4
2481201135	6.35	1/8x1/8	125	12	14	32	10	14	4
2481201140	6.35	1/4x1/8	125	12	17	34	11	15	4
2481201145	6.35	3/8x1/8	125	12	22	35.5	12	15	4.5
2481201150	6.35	1/2x1/4	125	14	27	38	14	16	6.4
2481201230	9.52	1/4x3/8	125	17	17	39.5	11	16.5	8.4
2481201235	9.52	3/8x3/8	125	17	22	40.5	12	16.5	8.5
2481201240	9.52	1/2x3/8	125	17	27	43	14	17	8.5
2481201244	9.52	3/4x3/8	125	17	32	46	17	17	8
2481201432	12.7	3/8x1/2	100	22	22	45.5	12	19	10.5
2481201434	12.7	1/2x1/2	100	22	27	48	14	19.5	12.5
2481201436	12.7	3/4x1/2	100	22	32	50	17	19.5	12
2481201502	14	3/8x1/2	64	22	22	47.5	12	19.5	10.5
2481201504	14	1/2x1/2	64	22	27	50	14	20	12.5
2481201506	14	3/4x1/2	64	22	32	53	17	20	12
2481201536	15	3/4x1/2	64	22	32	53	17	20	12

Datablad

Produktblad

SO01221
