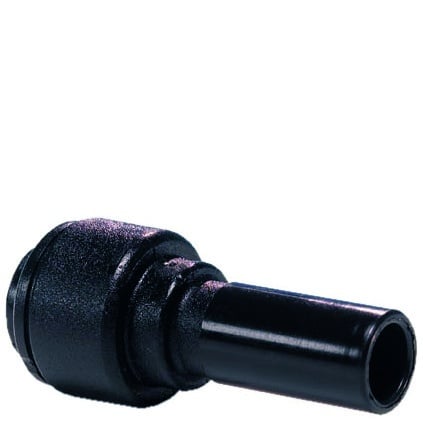

Name: PM06
SKU: 35981

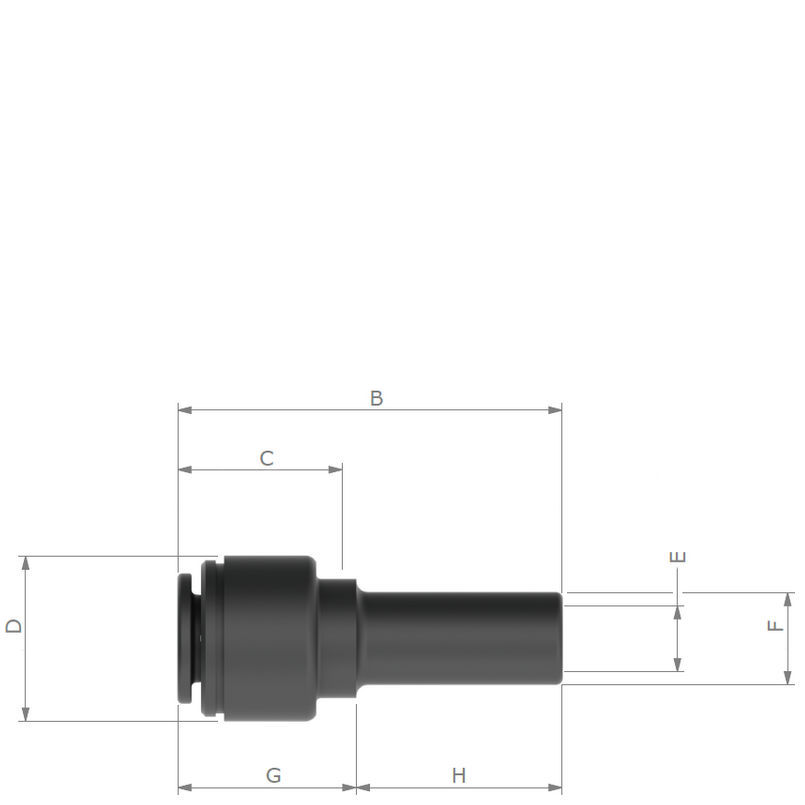

Artikelnummer	d×d1	Slangansl.	B	C	D	E	F	G	H
PM060504E	5×4	4	34.6	14.3	13	2.5	5	18.1	16.5
PM060604E	6×4	4	36.3	14.3	13	2.5	6	18.3	18.3
PM060605E	6×5	5	36.1	14.3	13	3.4	6	18.1	18
PM060804E	8×4	4	37.2	14.3	13	3.5	8	18.1	19.1
PM060805E	8×5	5	37.2	14.3	13	3.4	8	18.1	19.1
PM060806E	8×6	6	37.4	15.7	15	4.8	8	18.3	19.1
PM061006E	10×6	6	40.5	15.7	15	4.8	10	18.3	22.2
PM061008E	10×8	8	40.4	16.7	17.8	6.3	10	18.2	22.2
PM061208E	12×8	8	40.5	16.7	17.8	6.3	12	18.2	27.5
PM061210E	12×10	10	50	19.7	19.8	7.6	12	22.5	27.5
PM061510E	15×10	10	55.3	19.7	19.8	7.6	15	22.6	32.7
PM061512E	15×12	12	60.2	25.9	23	9.1	15	27.7	32.5
PM061815E	18x15	15	70.5	28.7	26.7	12.1	18	34.4	36.1
PM062215E	22×15	15	69.6	27.8	27	12.1	22	33.5	36.5
PM062218E	22x18	18	71.6	31	31.1	16	22	35.5	36.1
PM062815E	28x15	15
PM062822E	28x22	22

Datablad

Produktblad

PM06
