Name: 4568
SKU: 37362

Visa alla mått +

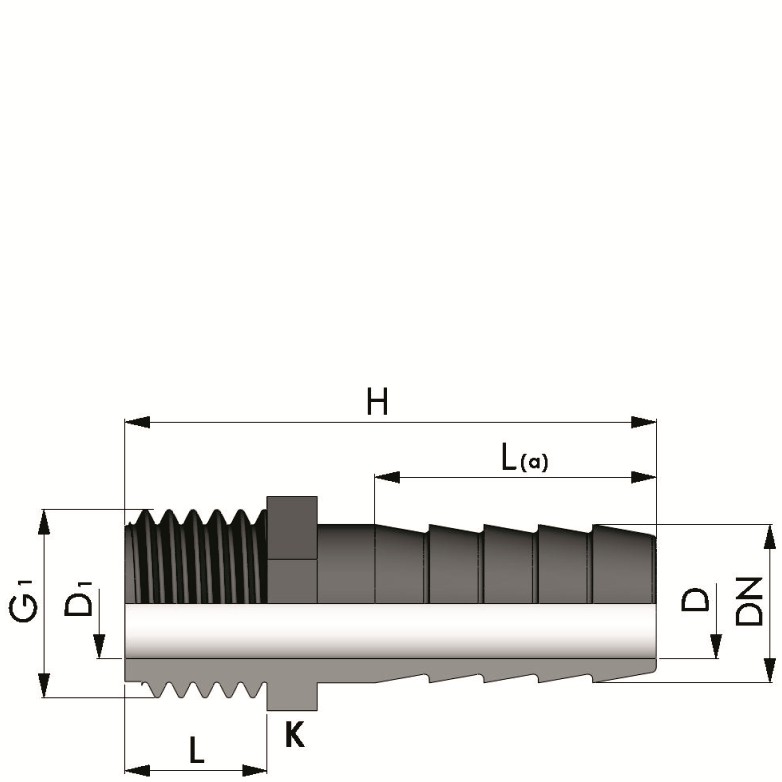

Artikelnummer	DN	G1	D	D1	H	La	L	K	Filer
45680708	7	1/4"	4	7	39.5	17	12	15	CAD/Step
45680710	7	3/8"	4	10	41.5	17	13.5	20	CAD/Step
45681010	10	3/8"	6	10	47	22	20	19	CAD/Step
45681015-B	10	1/2"	6	14	52.5	22.5	13	22	CAD/Step
45681208	12	1/4"	-	-	47.5	30	11	14	CAD/Step
45681208-B	12	1/4"	7.5	8	48	27	10.5	15
45681210	12	3/8"	-	-	49	30	12	17
45681210-B	12	3/8"	7.5	10	51.5	25	11	20	CAD/Step
45681315	12	1/2"	-	-	50.5	30	13	22
45681315-B	13	1/2"	8	14	55.5	26	14.5	22	CAD/Step
45681220	12	3/4"	-	-	51.5	30	14	27
45681610	16	3/8"	10	18	58.5	30	10.5	20	CAD/Step
45681615	16	1/2"	-	-	50.5	30	13	22
45681620	16	3/4"	-	-	51.5	30	14	27
45682015	20	1/2"	-	-	53	32.5	13	22
45682020	20	3/4"	-	-	54	32.5	14	27	CAD/Step
45682025	20	1"	13	22.5	70	30	18.5	36	CAD/Step
45682520	25	3/4"	-	-	54	32.5	14	27
45682525	25	1"	19	22.5	75.5	36	18.5	36	CAD/Step
45682532	25	1¼"	19.5	32.5	75	37	21	41	CAD/Step
45682515	25	1/2"	-	-	53	32.5	13	22
45682520-B	25	3/4"	19	19	73.5	37	16	27	CAD/Step
45683225	32	1"	22.5	23	79.5	36	18.5	36	CAD/Step
45683232	32	1¼"	25.5	32.5	81	43	21	41	CAD/Step
45684032	40	1¼"	32	32.5	83	43.5	21	50	CAD/Step
45684040	40	1½"	33	38.5	84.5	44	21	50	CAD/Step
45685040	50	1½"	42	38.5	84.5	44	21	50	CAD/Step
45685050	50	2"	42	48.5	88.5	44	25	60	CAD/Step
45686865	68	2 1/2"	-	-	-	-	-	-
45689080	76	3"	-	-	-	-	-	-
