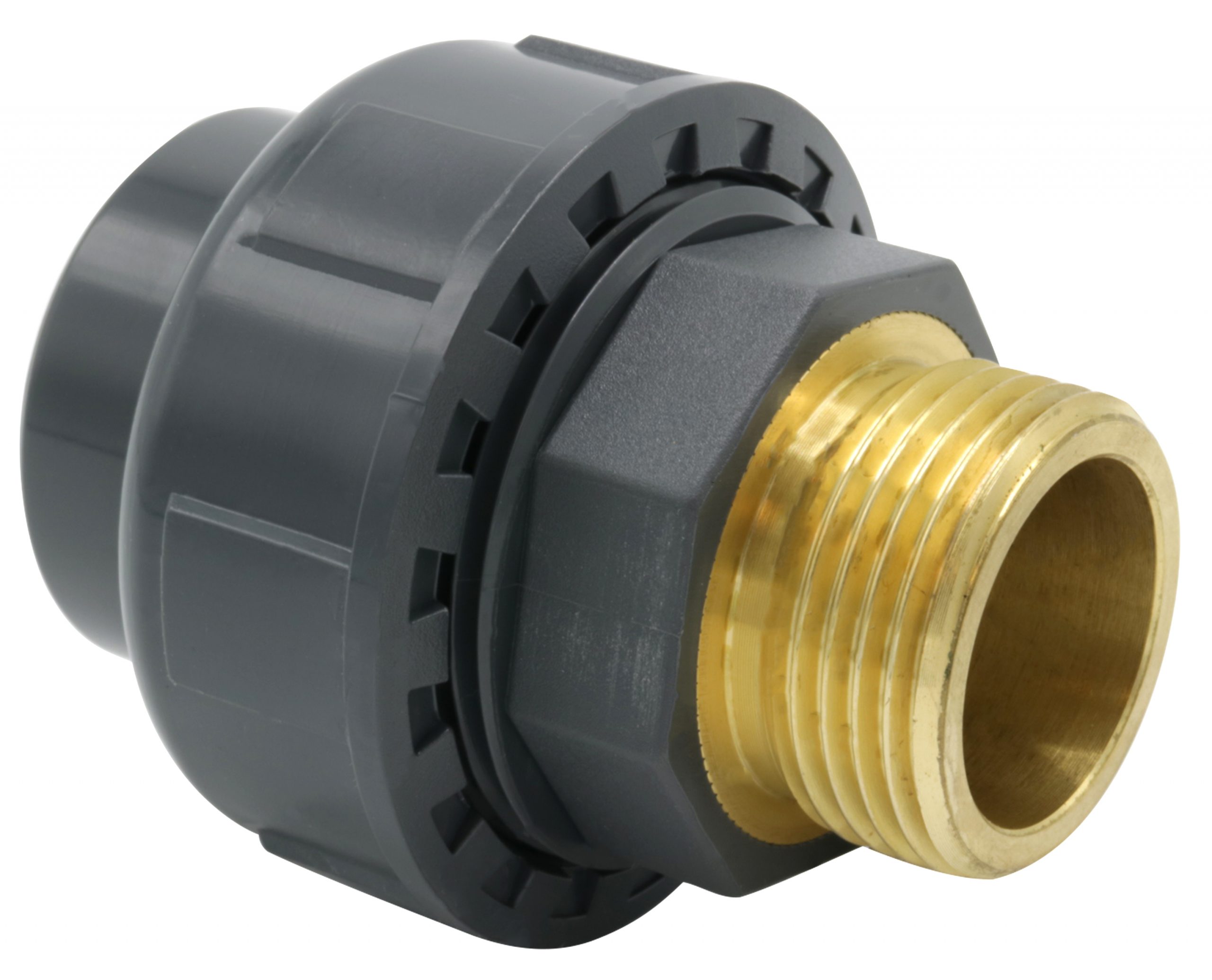

UNION INV.LIM/UTV.GÄNGA

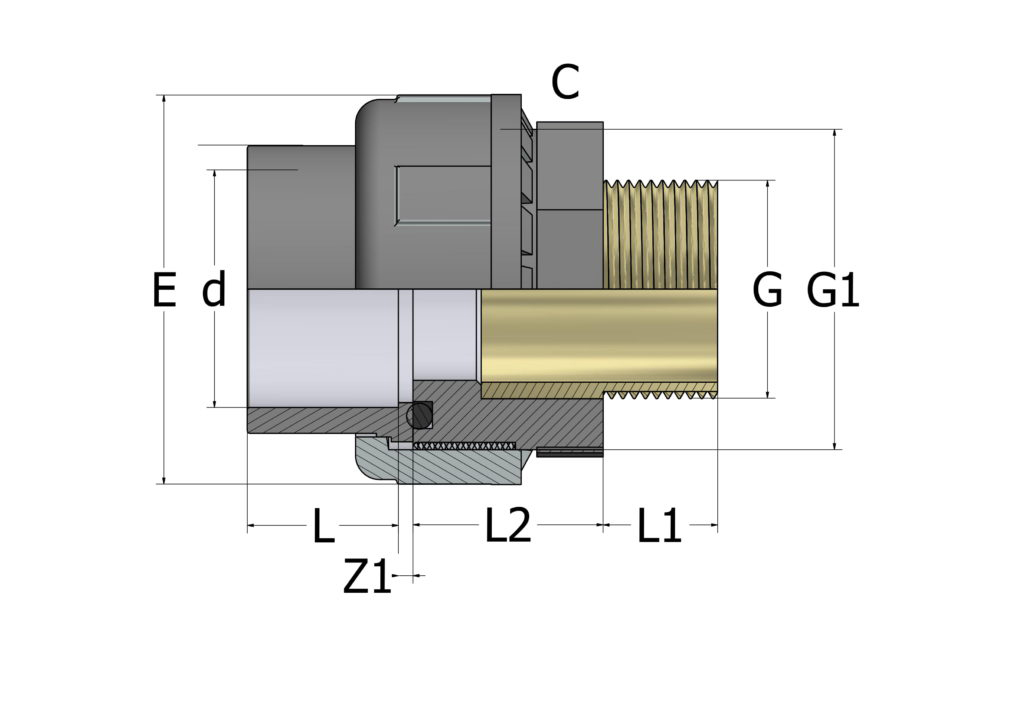

| Artikelnummer | RSK | L | L1 | L2 | E | C | Z1 | G1 | d×G | Filer |
|---|---|---|---|---|---|---|---|---|---|---|
| US72U-020-R015 | 2271828 | 16 | 15 | 25 | 42 | 30 | 3 | 1" | 20x1/2" | |
| US72U-025-R020 | 2271829 | 19 | 16.3 | 27 | 52 | 36 | 3 | 1"1/4 | 25x3/4" | |
| US72U-032-R025 | 2271830 | 22 | 19.1 | 29 | 59 | 42 | 3 | 1"1/2 | 32x1" | |
| US72U-040-R032 | 2271832 | 26 | 21.4 | 35 | 72 | 55 | 3 | 2" | 40x1"1/4 | |
| US72U-050-R040 | 2271833 | 31 | 21.4 | 40 | 79 | 65 | 3 | 2"1/4 | 50x 1"1/2 | |
| US72U-063-R050 | 2271834 | 38 | 25.7 | 42 | 96 | 70 | 3 | 2"3/4 | 63x2" |
| Artikelnummer | US72U-020-R015 |
| RSK | 2271828 |
| L | 16 |
| L1 | 15 |
| L2 | 25 |
| E | 42 |
| C | 30 |
| Z1 | 3 |
| G1 | 1" |
| d×G | 20x1/2" |
| Artikelnummer | US72U-025-R020 |
| RSK | 2271829 |
| L | 19 |
| L1 | 16.3 |
| L2 | 27 |
| E | 52 |
| C | 36 |
| Z1 | 3 |
| G1 | 1"1/4 |
| d×G | 25x3/4" |
| Artikelnummer | US72U-032-R025 |
| RSK | 2271830 |
| L | 22 |
| L1 | 19.1 |
| L2 | 29 |
| E | 59 |
| C | 42 |
| Z1 | 3 |
| G1 | 1"1/2 |
| d×G | 32x1" |
| Artikelnummer | US72U-040-R032 |
| RSK | 2271832 |
| L | 26 |
| L1 | 21.4 |
| L2 | 35 |
| E | 72 |
| C | 55 |
| Z1 | 3 |
| G1 | 2" |
| d×G | 40x1"1/4 |
| Artikelnummer | US72U-050-R040 |
| RSK | 2271833 |
| L | 31 |
| L1 | 21.4 |
| L2 | 40 |
| E | 79 |
| C | 65 |
| Z1 | 3 |
| G1 | 2"1/4 |
| d×G | 50x 1"1/2 |
| Artikelnummer | US72U-063-R050 |
| RSK | 2271834 |
| L | 38 |
| L1 | 25.7 |
| L2 | 42 |
| E | 96 |
| C | 70 |
| Z1 | 3 |
| G1 | 2"3/4 |
| d×G | 63x2" |
