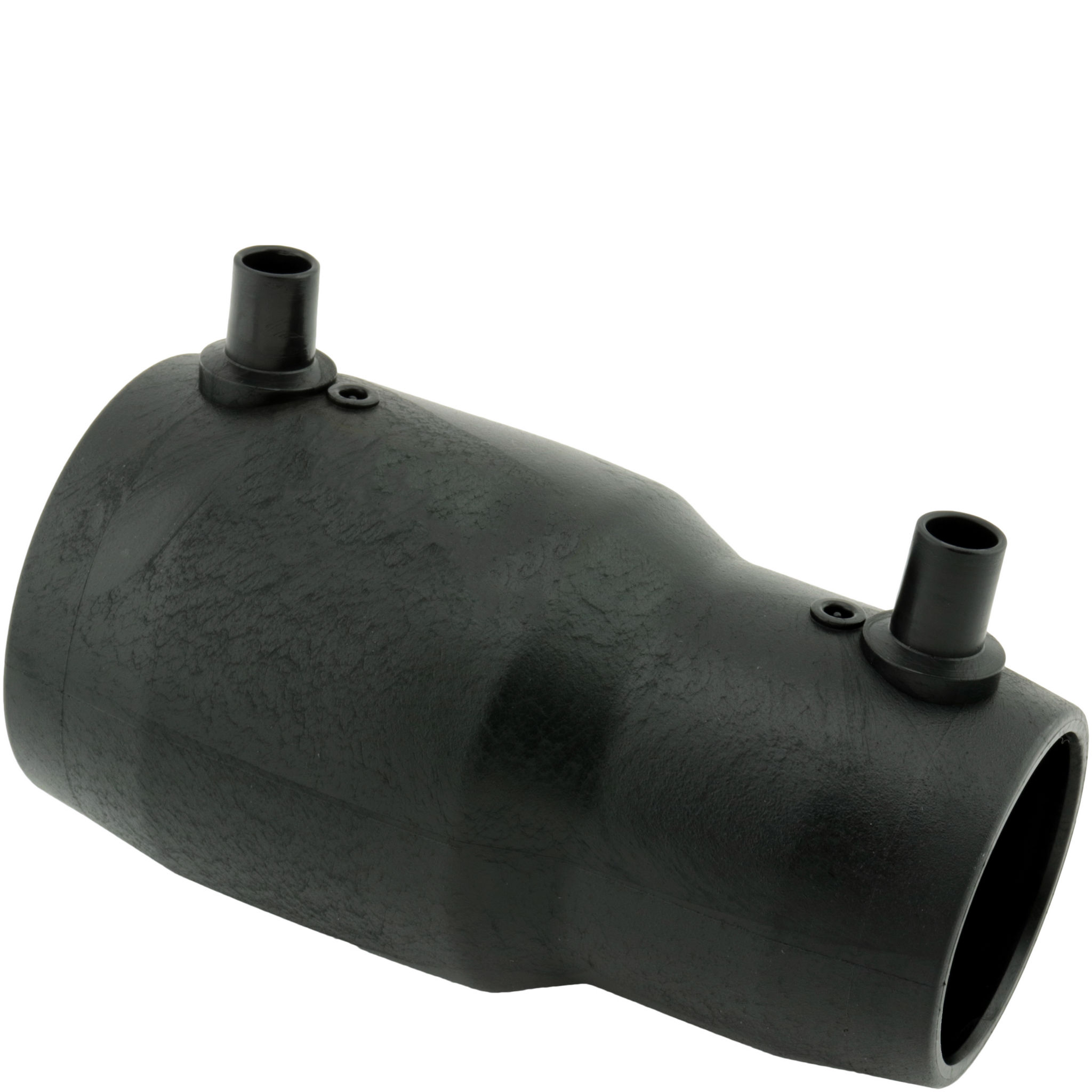

FM-MREL-A

PE Elmuff reducerad SDR11

Visa alla mått +

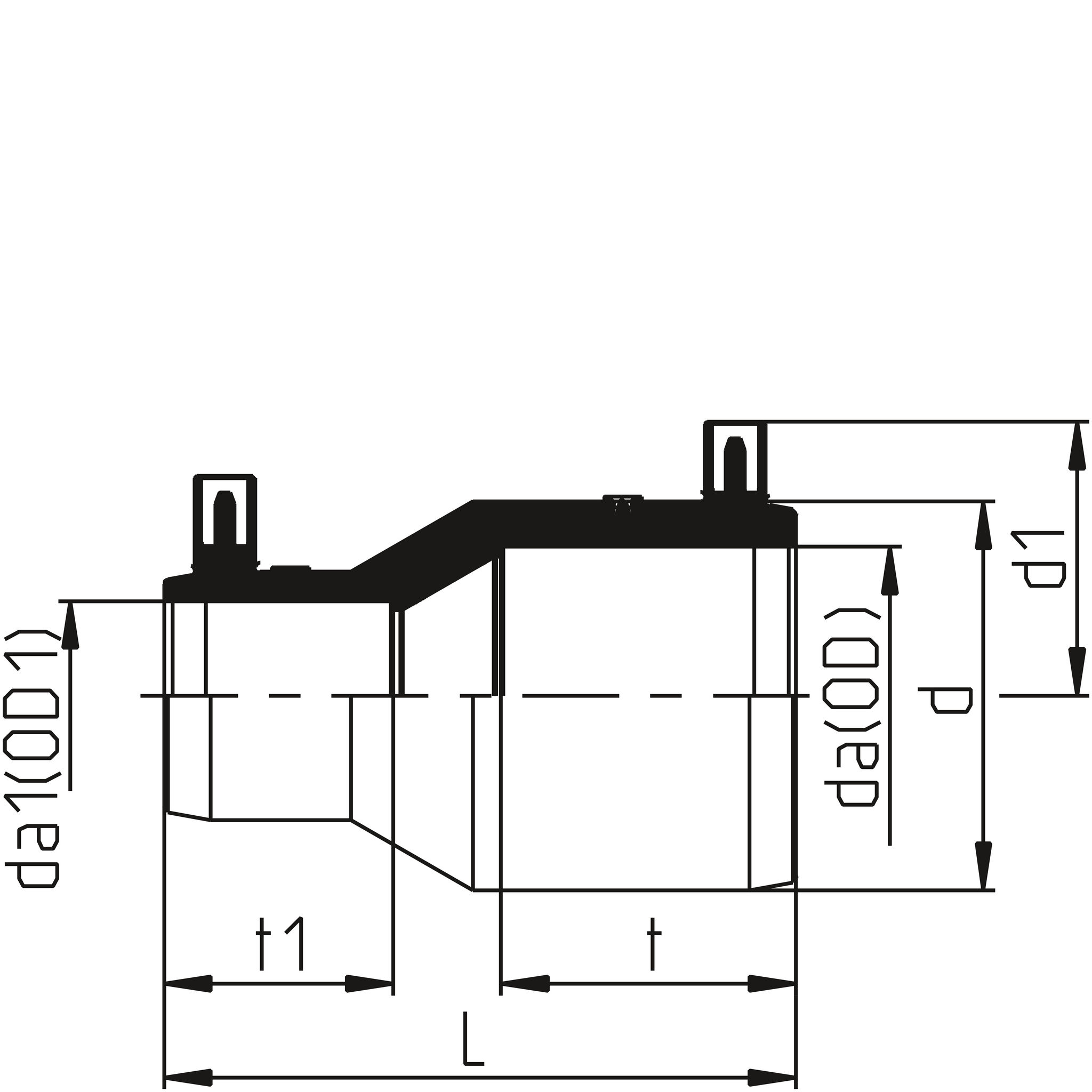

Artikelnummer	da(OD)	da1(OD1)	L	d	t	t1
FM-MREL-A 075-063	75	63	155.5	97	69	61.5
FM-MREL-A 090-063	90	63	171.5	117	71.5	62.5
FM-MREL-A 110-063	110	63	200.5	140.5	72	62.5
FM-MREL-A 110-090	110	90	180.5	140.5	72	71
FM-MREL-A 125-090	125	90	183.5	156	83	68.7
FM-MREL-A 125-110	125	110	173.5	156	82	69.5
FM-MREL-A 160-090	160	90	240.5	200	89.5	71
FM-MREL-A 160-110	160	110	224.5	200	89.5	71
FM-MREL-A 225-160	225	160	282	280	113	88
