Name: SO NV 51C21EB
SKU: 92339

Visa alla mått +

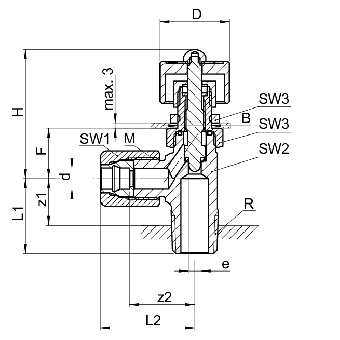

Artikelnummer	d	R	bar	M	SW1/SW2/SW3	L1/L2	D	H/F	B	i	z1/z2	e
0680121060	4	1/8	100	M10x1	12/14/14	14.5/25	20	41/15	10	5	9.5/17	3.5
0680121082	5	1/8	100	M10x1	12/14/14	14.5/25	20	41/15	10	5	9.5/17	3.5
0680121100	6	1/8	100	M10x1	12/14/14	14.5/25	20	41/15	10	5	9.5/17	3.5
0680121135	6.35	1/8	100	M10x1	12/14/14	14.5/25	20	41/15	10	5	9.5/17	3.5
0680121170	8	1/4	100	M12x1	14/14/14	21.5/27	20	41/15	10	8	13.5/18	3.5
0680121235	9.52	3/8	64	M14x1	17/22/22	22/34.5	32	57.5/21.5	14.5	8	14/23.5	7
0680121280	10	3/8	64	M14x1	17/22/22	22/35	32	57.5/21.5	14.5	8	14/23	7
0680121390	12	3/8	64	M16x1	19/22/22	24/36	32	57.5/21.5	14.5	8	16/23	7

Datablad

Produktblad

SO NV 51C21EB
