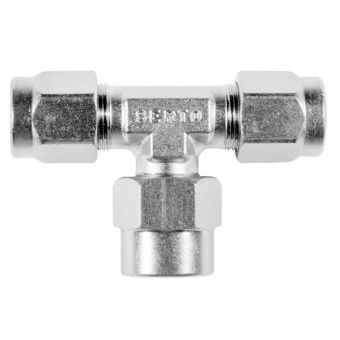

T-rör inv. gänga förnicklad

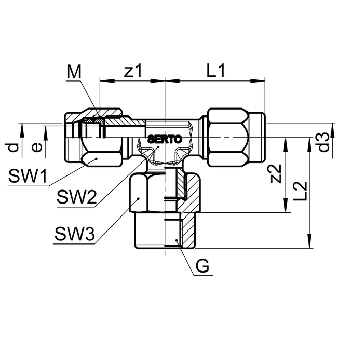

| Artikelnummer | RSK | d | G | d3 | bar | M | SW1/SW2/SW3 | L1/L2 | z1/z2 | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0383201100 | 6 | 1/8 | 6 | 200 | M10x1 | 12/10/14 | 23.5/29 | 16/19 | 4 | ||
| 0383201110 | 6 | 1/4 | 6 | 200 | M10x1 | 12/10/17 | 23.5/30 | 16/19 | 4 | ||
| 0383201270 | 10 | 1/4 | 10 | 80 | M14x1 | 17/14/17 | 30.5/34.5 | 20.5/23.5 | 8 | ||
| 0383201280 | 10 | 3/8 | 10 | 80 | M14x1 | 17/14/22 | 30.5/35.5 | 20.5/23.5 | 8 | ||
| 0383201390 | 12 | 3/8 | 12 | 80 | M16x1 | 19/17/22 | 32.5/36.5 | 21.5/24.5 | 10 | ||
| 0383201580 | 15 | 3/8 | 15 | 25 | M20x1.5 | 24/19/24 | 36/39 | 23.5/27 | 13 |
| Artikelnummer | 0383201100 |
| RSK | |
| d | 6 |
| G | 1/8 |
| d3 | 6 |
| bar | 200 |
| M | M10x1 |
| SW1/SW2/SW3 | 12/10/14 |
| L1/L2 | 23.5/29 |
| z1/z2 | 16/19 |
| e | 4 |
| Artikelnummer | 0383201110 |
| RSK | |
| d | 6 |
| G | 1/4 |
| d3 | 6 |
| bar | 200 |
| M | M10x1 |
| SW1/SW2/SW3 | 12/10/17 |
| L1/L2 | 23.5/30 |
| z1/z2 | 16/19 |
| e | 4 |
| Artikelnummer | 0383201270 |
| RSK | |
| d | 10 |
| G | 1/4 |
| d3 | 10 |
| bar | 80 |
| M | M14x1 |
| SW1/SW2/SW3 | 17/14/17 |
| L1/L2 | 30.5/34.5 |
| z1/z2 | 20.5/23.5 |
| e | 8 |
| Artikelnummer | 0383201280 |
| RSK | |
| d | 10 |
| G | 3/8 |
| d3 | 10 |
| bar | 80 |
| M | M14x1 |
| SW1/SW2/SW3 | 17/14/22 |
| L1/L2 | 30.5/35.5 |
| z1/z2 | 20.5/23.5 |
| e | 8 |
| Artikelnummer | 0383201390 |
| RSK | |
| d | 12 |
| G | 3/8 |
| d3 | 12 |
| bar | 80 |
| M | M16x1 |
| SW1/SW2/SW3 | 19/17/22 |
| L1/L2 | 32.5/36.5 |
| z1/z2 | 21.5/24.5 |
| e | 10 |
| Artikelnummer | 0383201580 |
| RSK | |
| d | 15 |
| G | 3/8 |
| d3 | 15 |
| bar | 25 |
| M | M20x1.5 |
| SW1/SW2/SW3 | 24/19/24 |
| L1/L2 | 36/39 |
| z1/z2 | 23.5/27 |
| e | 13 |
