SO 82421

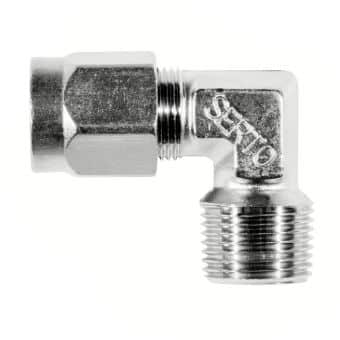

Vinkelunion utv. gänga förnicklad

  • Vinkelunion utv. gänga förnicklad mässing
Nollställ
Visa alla mått +

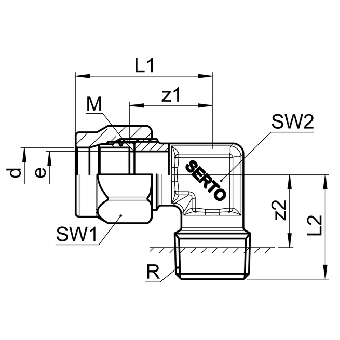

Artikelnummer RSK dRbarMSW1/SW2L1/L2z1/z2eFiler
0382401065 41/4100M10x112/1025.5/22.518/133.4
0382401100 61/8200M10x112/1023.5/17.516/124.5
0382401110 61/4200M10x112/1025.5/22.518/134
0382401160 81/8125M12x114/1026/1818/11.56
0382401180 83/8125M14x117/1430.5/2520.5/156.5
0382401270 101/464M14x117/1430.5/2520.5/15.58
0382401285 101/264M16x119/1934/29.523/16.58.5
0382401390 123/880M16x119/1732.5/2621.5/1610
0382401400 121/280M16x119/1934/29.523/1810
0382401646 181/225M24x1.527/2240.5/31.526.5/2015
Artikelnummer 0382401065
RSK
d 4
R 1/4
bar 100
M M10x1
SW1/SW2 12/10
L1/L2 25.5/22.5
z1/z2 18/13
e 3.4
Artikelnummer 0382401100
RSK
d 6
R 1/8
bar 200
M M10x1
SW1/SW2 12/10
L1/L2 23.5/17.5
z1/z2 16/12
e 4.5
Artikelnummer 0382401110
RSK
d 6
R 1/4
bar 200
M M10x1
SW1/SW2 12/10
L1/L2 25.5/22.5
z1/z2 18/13
e 4
Artikelnummer 0382401160
RSK
d 8
R 1/8
bar 125
M M12x1
SW1/SW2 14/10
L1/L2 26/18
z1/z2 18/11.5
e 6
Artikelnummer 0382401180
RSK
d 8
R 3/8
bar 125
M M14x1
SW1/SW2 17/14
L1/L2 30.5/25
z1/z2 20.5/15
e 6.5
Artikelnummer 0382401270
RSK
d 10
R 1/4
bar 64
M M14x1
SW1/SW2 17/14
L1/L2 30.5/25
z1/z2 20.5/15.5
e 8
Artikelnummer 0382401285
RSK
d 10
R 1/2
bar 64
M M16x1
SW1/SW2 19/19
L1/L2 34/29.5
z1/z2 23/16.5
e 8.5
Artikelnummer 0382401390
RSK
d 12
R 3/8
bar 80
M M16x1
SW1/SW2 19/17
L1/L2 32.5/26
z1/z2 21.5/16
e 10
Artikelnummer 0382401400
RSK
d 12
R 1/2
bar 80
M M16x1
SW1/SW2 19/19
L1/L2 34/29.5
z1/z2 23/18
e 10
Artikelnummer 0382401646
RSK
d 18
R 1/2
bar 25
M M24x1.5
SW1/SW2 27/22
L1/L2 40.5/31.5
z1/z2 26.5/20
e 15
Datablad
