Visa alla mått +

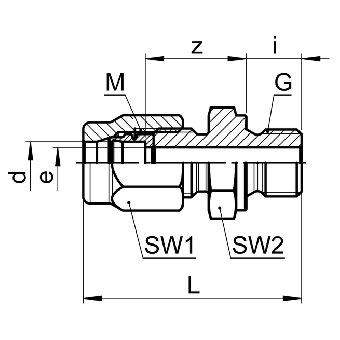

| Artikelnummer | RSK | d | G | bar | M | SW1 | SW2 | L | D | i | z | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0381141040 | 3 | 1/8 | 125 | M6x0.75 | 8 | 14 | 25 | 14.5 | 8 | 12 | 2.5 | ||
| 0381141060 | 4 | 1/8 | 125 | M8x1 | 10 | 14 | 28.5 | 14.5 | 8 | 14.5 | 3.4 | ||
| 0381141065 | 4 | 1/4 | 125 | M10x1 | 12 | 19 | 35.5 | 18.5 | 8 | 16 | 3.4 | ||
| 0381141082 | 5 | 1/8 | 125 | M8x1 | 10 | 14 | 29 | 14.5 | 8 | 14.5 | 3.5 | ||
| 0381141100 | 6 | 1/8 | 200 | M10x1 | 12 | 14 | 30 | 14.5 | 8 | 14.5 | 4.5 | ||
| 0381141110 | 6 | 1/4 | 200 | M10x1 | 12 | 19 | 35.5 | 18.5 | 12 | 16 | 4.5 | ||
| 0381141160 | 8 | 1/8 | 125 | M12x1 | 14 | 14 | 31.5 | 14.5 | 8 | 15.5 | 4.5 | ||
| 0381141170 | 8 | 1/4 | 125 | M12x1 | 14 | 19 | 37 | 18.5 | 12 | 17 | 6.5 | ||
| 0381141180 | 8 | 3/8 | 125 | M12x1 | 14 | 22 | 38.5 | 22.5 | 12 | 18.5 | 6.5 | ||
| 0381141280 | 10 | 3/8 | 80 | M14x1 | 17 | 22 | 40.5 | 22.5 | 12 | 18.5 | 8.5 | ||
| 0381141380 | 12 | 1/4 | 40 | M16x1 | 19 | 19 | 40 | 18.5 | 12 | 17 | 7 | ||
| 0381141390 | 12 | 3/8 | 40 | M16x1 | 19 | 22 | 41.5 | 22.5 | 12 | 18.5 | 10 |
