Visa alla mått +

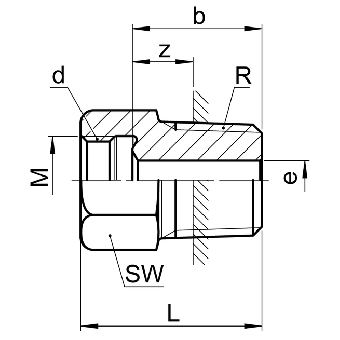

| Artikelnummer | RSK | d | R | bar | M | SW | L | b | z | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0360401100 | 6 | 1/8 | 200 | M10x1 | 12 | 17 | 11 | 6 | 5 | ||
| 0360401110 | 6 | 1/4 | 200 | M10x1 | 14 | 21 | 15 | 7 | 5 | ||
| 0360401120 | 6 | 3/8 | 200 | M10x1 | 17 | 20 | 14 | 6 | 5 | ||
| 0360401160 | 8 | 1/8 | 125 | M12x1 | 14 | 18 | 11 | 6 | 6.5 | ||
| 0360401170 | 8 | 1/4 | 125 | M12x1 | 14 | 22 | 15 | 7 | 6.5 | ||
| 0360401270 | 10 | 1/4 | 80 | M14x1 | 17 | 22 | 15 | 7 | 8.5 | ||
| 0360401285 | 10 | 3/8 | 80 | M14x1 | 17 | 22 | 15 | 7 | 8.5 | ||
| 0360401380 | 12 | 1/4 | 80 | M16x1 | 19 | 23 | 16 | 8 | 8.5 | ||
| 0360401390 | 12 | 3/8 | 80 | M16x1 | 19 | 23 | 16 | 8 | 10.5 | ||
| 0360401400 | 12 | 1/2 | 80 | M16x1 | 22 | 26 | 19 | 9 | 10.5 | ||
| 0360401532 | 15 | 3/8 | 25 | M20x1.5 | 24 | 24 | 16 | 8 | 10.5 | ||
| 0360401534 | 15 | 1/2 | 25 | M20x1.5 | 24 | 28 | 20 | 10 | 13 | ||
| 0360401536 | 15 | 3/4 | 25 | M20x1.5 | 27 | 27.5 | 19.5 | 7.5 | 13 | ||
| 0360401646 | 18 | 1/2 | 25 | M24x1.5 | 30 | 29 | 21 | 11 | 13 | ||
| 0360401648 | 18 | 3/4 | 25 | M24x1.5 | 30 | 29.5 | 21.5 | 9.5 | 15 |
