Visa alla mått +

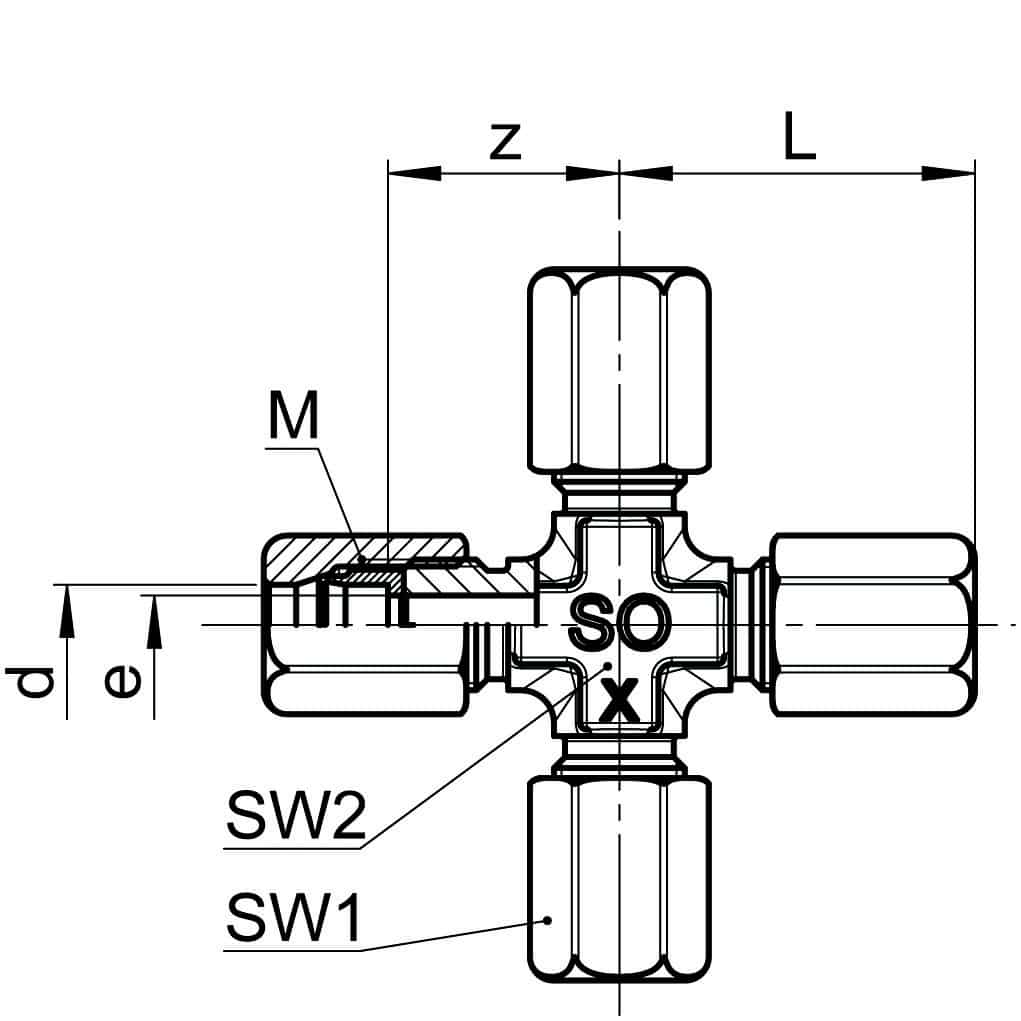

| Artikelnummer | RSK | d | SW2 | bar | L | z | M | e | SW1 | Filer |
|---|---|---|---|---|---|---|---|---|---|---|
| 0584000040 | 4 | 12 | 200 | 25.5 | 17.5 | 10 x 1 | 3.5 | 12 | ||
| 0584000050 | 5 | 12 | 200 | 25.5 | 17.5 | 10 x 1 | 4 | 12 | ||
| 0584000060 | 6 | 12 | 200 | 25.5 | 17.5 | 10 x 1 | 4.5 | 12 | ||
| 0584000080 | 8 | 12 | 200 | 27.5 | 19 | 12 x 1 | 6.5 | 14 | ||
| 0584000100 | 10 | 14 | 160 | 34.5 | 23 | 14 x 1 | 8.5 | 17 | ||
| 0584000120 | 12 | 14 | 160 | 37.5 | 25 | 16 x 1 | 9.5 | 19 | ||
| 0584000140 | 14 | 17 | 100 | 40.5 | 26.5 | 20 x 1,5 | 12 | 24 | ||
| 0584000150 | 15 | 17 | 100 | 40.5 | 26.5 | 20 x 1,5 | 13 | 24 | ||
| 0584000063 | 6.35 | 12 | 200 | 25.5 | 17.5 | 10 x 1 | 4.5 | 12 | ||
| 0584000095 | 9.52 | 14 | 160 | 34.5 | 23 | 14 x 1 | 8 | 17 | ||
| 0584000127 | 12.7 | 17 | 100 | 40 | 26.5 | 20 x 1,5 | 11 | 24 | ||
| 0584000135 | 13.5 | 17 | 100 | 40.5 | 26.5 | 20 x 1,5 | 12 | 24 |
