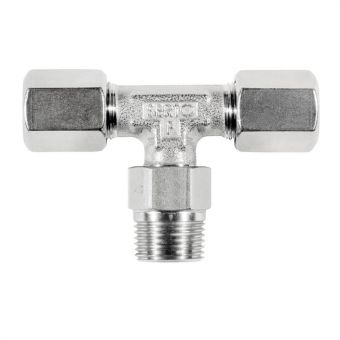

SO 53121 NPT

T-rör utv. gänga

  • Syrafast-trör utv. gänga NPT
Nollställ
Visa alla mått +

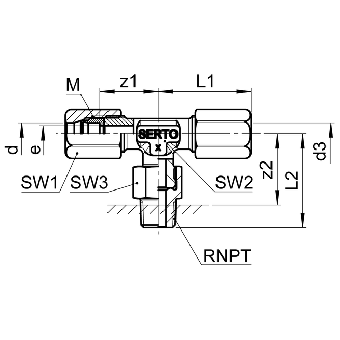

Artikelnummer RSK dRd3barMSW1/SW2/SW3L1/L2z1/z2eFiler
0583102100 6NPT1/86200M10x112/9/1224/2816/21.54.5
0583102110 6NPT1/46200M10x112/9/1424/3216/224.5
0583102140 6.35NPT1/86.35200M10x112/9/1224/2816/21.54.5
0583102145 6.35NPT1/46.35200M10x112/9/1424/3216/224.5
0583102170 8NPT1/48200M12x114/10/1426.5/3418/246.5
0583102210 9.52NPT1/49.52160M14x117/12/1732/36.516/278
0583102270 10NPT1/410160M14x117/12/1732/36.520.5/26.58.5
0583102290 10NPT1/210160M16x119/14/2233.5/42.520.5/298.5
0583102390 12NPT3/812160M16x119/14/1933.5/38.521.5/279.5
0583102400 12NPT1/212160M16x119/14/2233.5/42.521.5/299.5
0583102540 14NPT1/214100M20x1.524/17/2438.5/4524.5/31.512
0583102590 15NPT1/215100M20x1.524/17/2438.5/4524.5/31.513
Artikelnummer 0583102100
RSK
d 6
R NPT1/8
d3 6
bar 200
M M10x1
SW1/SW2/SW3 12/9/12
L1/L2 24/28
z1/z2 16/21.5
e 4.5
Artikelnummer 0583102110
RSK
d 6
R NPT1/4
d3 6
bar 200
M M10x1
SW1/SW2/SW3 12/9/14
L1/L2 24/32
z1/z2 16/22
e 4.5
Artikelnummer 0583102140
RSK
d 6.35
R NPT1/8
d3 6.35
bar 200
M M10x1
SW1/SW2/SW3 12/9/12
L1/L2 24/28
z1/z2 16/21.5
e 4.5
Artikelnummer 0583102145
RSK
d 6.35
R NPT1/4
d3 6.35
bar 200
M M10x1
SW1/SW2/SW3 12/9/14
L1/L2 24/32
z1/z2 16/22
e 4.5
Artikelnummer 0583102170
RSK
d 8
R NPT1/4
d3 8
bar 200
M M12x1
SW1/SW2/SW3 14/10/14
L1/L2 26.5/34
z1/z2 18/24
e 6.5
Artikelnummer 0583102210
RSK
d 9.52
R NPT1/4
d3 9.52
bar 160
M M14x1
SW1/SW2/SW3 17/12/17
L1/L2 32/36.5
z1/z2 16/27
e 8
Artikelnummer 0583102270
RSK
d 10
R NPT1/4
d3 10
bar 160
M M14x1
SW1/SW2/SW3 17/12/17
L1/L2 32/36.5
z1/z2 20.5/26.5
e 8.5
Artikelnummer 0583102290
RSK
d 10
R NPT1/2
d3 10
bar 160
M M16x1
SW1/SW2/SW3 19/14/22
L1/L2 33.5/42.5
z1/z2 20.5/29
e 8.5
Artikelnummer 0583102390
RSK
d 12
R NPT3/8
d3 12
bar 160
M M16x1
SW1/SW2/SW3 19/14/19
L1/L2 33.5/38.5
z1/z2 21.5/27
e 9.5
Artikelnummer 0583102400
RSK
d 12
R NPT1/2
d3 12
bar 160
M M16x1
SW1/SW2/SW3 19/14/22
L1/L2 33.5/42.5
z1/z2 21.5/29
e 9.5
Artikelnummer 0583102540
RSK
d 14
R NPT1/2
d3 14
bar 100
M M20x1.5
SW1/SW2/SW3 24/17/24
L1/L2 38.5/45
z1/z2 24.5/31.5
e 12
Artikelnummer 0583102590
RSK
d 15
R NPT1/2
d3 15
bar 100
M M20x1.5
SW1/SW2/SW3 24/17/24
L1/L2 38.5/45
z1/z2 24.5/31.5
e 13
Datablad
