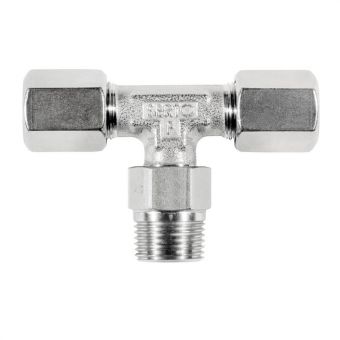

T-rör utv. gänga

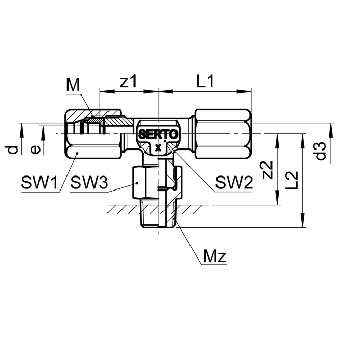

| Artikelnummer | RSK | d | Mz | d3 | bar | M | SW1/SW2/SW3 | L1/L2 | z1/z2 | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0583143055 | 3 | M6x0.75 | 3 | 250 | M8x1 | 10/9/10 | 22/24.5 | 16/19 | 2.5 | ||
| 0583143060 | 3 | M8x1 | 3 | 250 | M8x1 | 10/9/10 | 22/26 | 16/20 | 2.5 | ||
| 0583143085 | 4 | M6x0.75 | 4 | 250 | M8x1 | 10/9/10 | 22/24 | 16/19 | 2.5 | ||
| 0583143090 | 4 | M8x1 | 4 | 250 | M8x1 | 10/9/10 | 22/26 | 16/20 | 3.5 | ||
| 0583143115 | 5 | M6x0.75 | 5 | 250 | M8x1 | 10/9/10 | 22/24 | 16/19 | 2.5 | ||
| 0583143125 | 5 | M8x1 | 5 | 250 | M8x1 | 10/9/10 | 22/26 | 16/20 | 3.5 |
| Artikelnummer | 0583143055 |
| RSK | |
| d | 3 |
| Mz | M6x0.75 |
| d3 | 3 |
| bar | 250 |
| M | M8x1 |
| SW1/SW2/SW3 | 10/9/10 |
| L1/L2 | 22/24.5 |
| z1/z2 | 16/19 |
| e | 2.5 |
| Artikelnummer | 0583143060 |
| RSK | |
| d | 3 |
| Mz | M8x1 |
| d3 | 3 |
| bar | 250 |
| M | M8x1 |
| SW1/SW2/SW3 | 10/9/10 |
| L1/L2 | 22/26 |
| z1/z2 | 16/20 |
| e | 2.5 |
| Artikelnummer | 0583143085 |
| RSK | |
| d | 4 |
| Mz | M6x0.75 |
| d3 | 4 |
| bar | 250 |
| M | M8x1 |
| SW1/SW2/SW3 | 10/9/10 |
| L1/L2 | 22/24 |
| z1/z2 | 16/19 |
| e | 2.5 |
| Artikelnummer | 0583143090 |
| RSK | |
| d | 4 |
| Mz | M8x1 |
| d3 | 4 |
| bar | 250 |
| M | M8x1 |
| SW1/SW2/SW3 | 10/9/10 |
| L1/L2 | 22/26 |
| z1/z2 | 16/20 |
| e | 3.5 |
| Artikelnummer | 0583143115 |
| RSK | |
| d | 5 |
| Mz | M6x0.75 |
| d3 | 5 |
| bar | 250 |
| M | M8x1 |
| SW1/SW2/SW3 | 10/9/10 |
| L1/L2 | 22/24 |
| z1/z2 | 16/19 |
| e | 2.5 |
| Artikelnummer | 0583143125 |
| RSK | |
| d | 5 |
| Mz | M8x1 |
| d3 | 5 |
| bar | 250 |
| M | M8x1 |
| SW1/SW2/SW3 | 10/9/10 |
| L1/L2 | 22/26 |
| z1/z2 | 16/20 |
| e | 3.5 |
