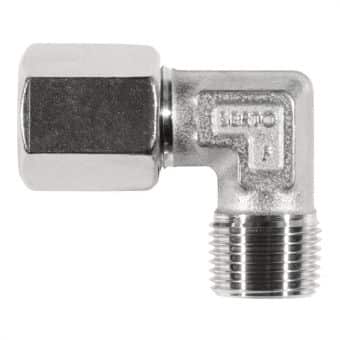

SO 52421 NPT

Vinkelunion utv. gänga

  • Syrafast-vinkelunion utv. gänga NPT
Nollställ
Visa alla mått +

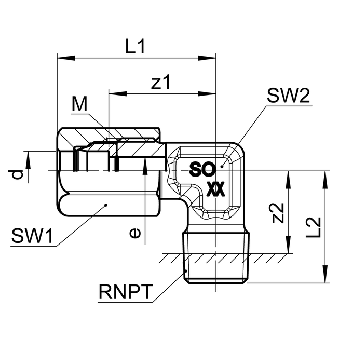

Artikelnummer RSK dRbarMSW1/SW2L1/L2z1/z2eFiler
0582402040 3NPT1/8250M8x110/922/1716/132.5
0582402060 4NPT1/8250M8x110/921.5/1716/133.5
0582402082 5NPT1/8250M8x110/922/1716/133.5
0582402100 6NPT1/8200M10x112/924/1716/134.5
0582402135 6.35NPT1/8200M10x112/924/1716/134.5
0582402140 6.35NPT1/4200M12x114/1026.5/22.518/18.54.5
0582402230 9.52NPT1/4160M14x117/1232/2520.5/198
0582402434 12.7NPT1/2100M20x1.524/1738/29.524.5/21.511
0582402474 13.5NPT1/2100M20x1.524/1738.5/29.524.5/21.512
0582402504 14NPT1/2100M20x1.524/1738.5/29.524.5/21.512
0582402534 15NPT1/2100M20x1.524/1738.5/29.524.5/21.513
Artikelnummer 0582402040
RSK
d 3
R NPT1/8
bar 250
M M8x1
SW1/SW2 10/9
L1/L2 22/17
z1/z2 16/13
e 2.5
Artikelnummer 0582402060
RSK
d 4
R NPT1/8
bar 250
M M8x1
SW1/SW2 10/9
L1/L2 21.5/17
z1/z2 16/13
e 3.5
Artikelnummer 0582402082
RSK
d 5
R NPT1/8
bar 250
M M8x1
SW1/SW2 10/9
L1/L2 22/17
z1/z2 16/13
e 3.5
Artikelnummer 0582402100
RSK
d 6
R NPT1/8
bar 200
M M10x1
SW1/SW2 12/9
L1/L2 24/17
z1/z2 16/13
e 4.5
Artikelnummer 0582402135
RSK
d 6.35
R NPT1/8
bar 200
M M10x1
SW1/SW2 12/9
L1/L2 24/17
z1/z2 16/13
e 4.5
Artikelnummer 0582402140
RSK
d 6.35
R NPT1/4
bar 200
M M12x1
SW1/SW2 14/10
L1/L2 26.5/22.5
z1/z2 18/18.5
e 4.5
Artikelnummer 0582402230
RSK
d 9.52
R NPT1/4
bar 160
M M14x1
SW1/SW2 17/12
L1/L2 32/25
z1/z2 20.5/19
e 8
Artikelnummer 0582402434
RSK
d 12.7
R NPT1/2
bar 100
M M20x1.5
SW1/SW2 24/17
L1/L2 38/29.5
z1/z2 24.5/21.5
e 11
Artikelnummer 0582402474
RSK
d 13.5
R NPT1/2
bar 100
M M20x1.5
SW1/SW2 24/17
L1/L2 38.5/29.5
z1/z2 24.5/21.5
e 12
Artikelnummer 0582402504
RSK
d 14
R NPT1/2
bar 100
M M20x1.5
SW1/SW2 24/17
L1/L2 38.5/29.5
z1/z2 24.5/21.5
e 12
Artikelnummer 0582402534
RSK
d 15
R NPT1/2
bar 100
M M20x1.5
SW1/SW2 24/17
L1/L2 38.5/29.5
z1/z2 24.5/21.5
e 13
Datablad
