SO 52121 NPT

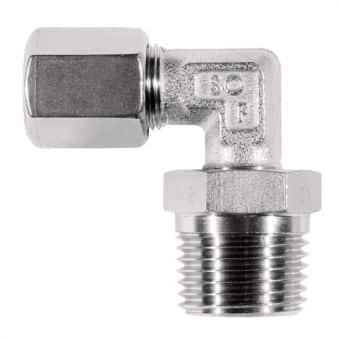

Vinkelunion utv. gänga

  • Syrafast-vinkelunion utv. gänga NPT
Nollställ
Visa alla mått +

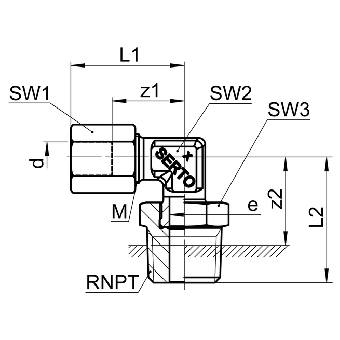

Artikelnummer RSK dRbarMSW1/SW2/SW3L1/L2z1/z2eFiler
0582102110 6NPT1/4200M10x112/9/1424/3216/224.5
0582102285 10NPT1/2160M16x119/14/2232/41.520.5/27.58.5
0582102400 12NPT1/2160M16x119/14/2234/42.521.5/28.59.5
Artikelnummer 0582102110
RSK
d 6
R NPT1/4
bar 200
M M10x1
SW1/SW2/SW3 12/9/14
L1/L2 24/32
z1/z2 16/22
e 4.5
Artikelnummer 0582102285
RSK
d 10
R NPT1/2
bar 160
M M16x1
SW1/SW2/SW3 19/14/22
L1/L2 32/41.5
z1/z2 20.5/27.5
e 8.5
Artikelnummer 0582102400
RSK
d 12
R NPT1/2
bar 160
M M16x1
SW1/SW2/SW3 19/14/22
L1/L2 34/42.5
z1/z2 21.5/28.5
e 9.5
Datablad
