SO51521

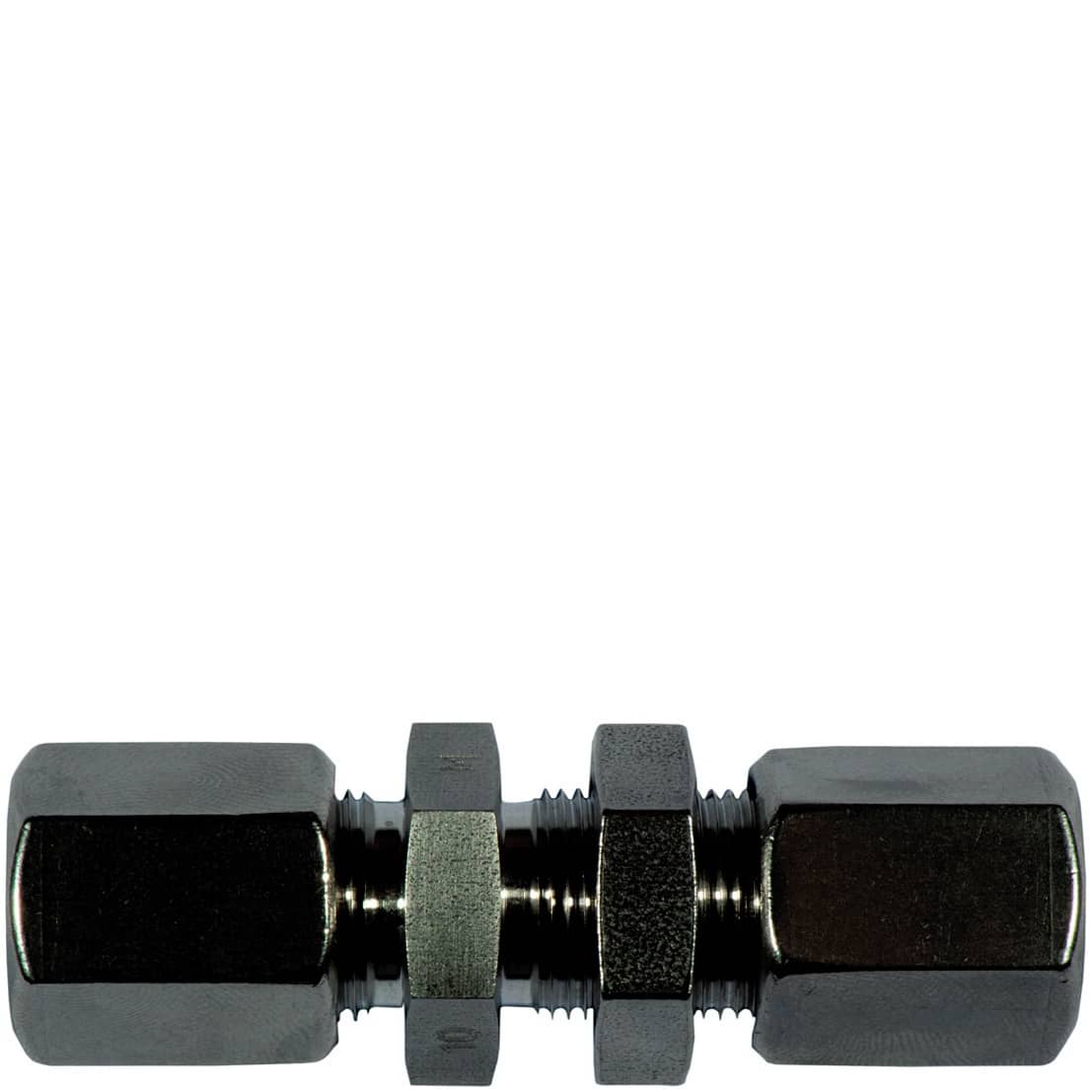

Union rak skottgenomföring

Visa alla mått +

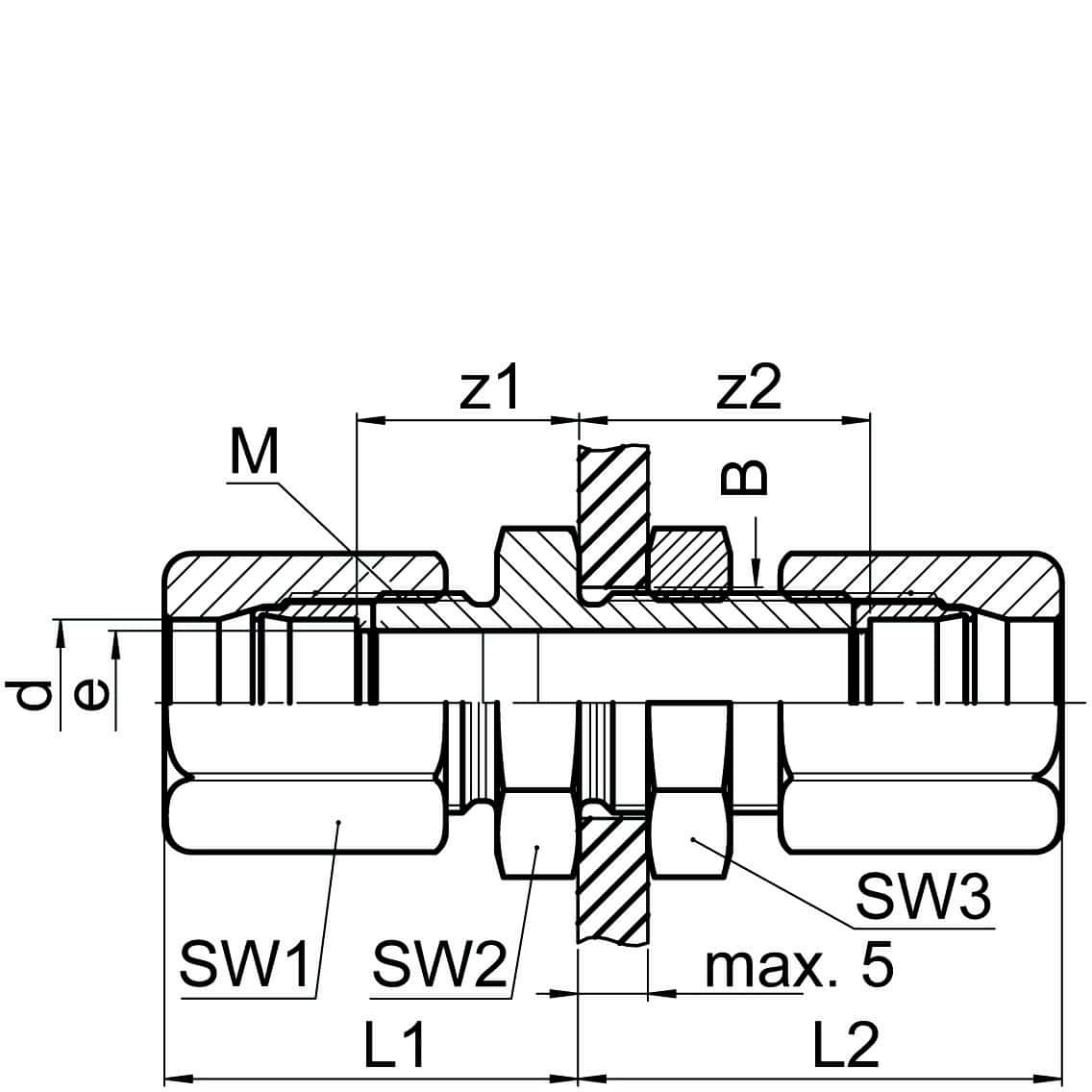

Artikelnummer	d	bar	e	M	z1/z2	SW1/SW2	SW3	L1	L2	B
0581500020	2	250	1.5	6 x 0,75	10,5/15,5	8/10	10	14	19	6.5
0581500030	3	250	2.2	6 x 0,75	10,5/15,5	8/10	10	15.5	20.5	6.5
0581500040	4	250	3.5	8 x 1	13,5/17,5	10/12	12	19	23	8.5
0581500050	5	250	3.5	8 x 1	13,5/17,5	10/12	12	19.5	23.5	8.5
0581500060	6	200	4.5	10 x 1	13,5/19	12/14	14	21.5	27	10.5
0581500080	8	200	6.5	12 x 1	15/21	14/17	17	23.5	29.5	12.5
0581500100	10	160	8.5	14 x 1	15,5/21	17/19	19	27	32.5	14.5
0581500120	12	160	10	16 x 1	16/21	19/22	22	28	33	16.5
0581500063	6.35	200	4.5	10 x 1	13,5/19	12/14	14	21.5	27	10.5
0581500095	9.52	160	8	14 x 1	15,5/21	17/19	19	26.5	32.5	14.5

Datablad
