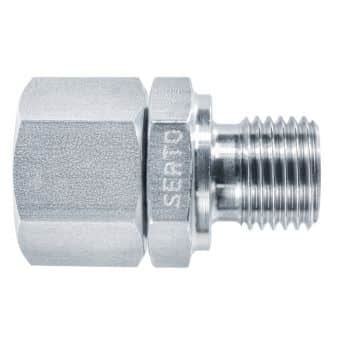

Union utv. gänga

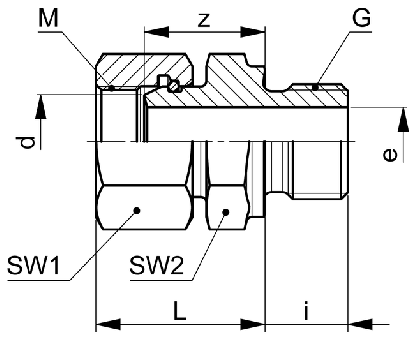

| Artikelnummer | RSK | d | bar | M | SW1/SW2 | L | i | z | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|
| 0581651110 | 6 | 200 | M10x1 | 14/14 | 20.5 | 8 | 14 | 4.5 | ||
| 0581651170 | 8 | 200 | M12x1 | 17/19 | 22.5 | 12 | 15 | 6.5 | ||
| 0581651270 | 10 | 160 | M14x1 | 19/19 | 23 | 12 | 16 | 7 | ||
| 0581651390 | 12 | 160 | M16x1 | 22/22 | 24.5 | 12 | 17.5 | 10 | ||
| 0581651534 | 15 | 100 | M20x1.5 | 27/27 | 29.5 | 14 | 22 | 13 | ||
| 0581651648 | 18 | 100 | M24x1.5 | 32/27 | 29.5 | 14 | 22 | 13 | ||
| 0581651768 | 22 | 64 | M28x1.5 | 36/32 | 30.5 | 16 | 22 | 19 |
| Artikelnummer | 0581651110 |
| RSK | |
| d | 6 |
| bar | 200 |
| M | M10x1 |
| SW1/SW2 | 14/14 |
| L | 20.5 |
| i | 8 |
| z | 14 |
| e | 4.5 |
| Artikelnummer | 0581651170 |
| RSK | |
| d | 8 |
| bar | 200 |
| M | M12x1 |
| SW1/SW2 | 17/19 |
| L | 22.5 |
| i | 12 |
| z | 15 |
| e | 6.5 |
| Artikelnummer | 0581651270 |
| RSK | |
| d | 10 |
| bar | 160 |
| M | M14x1 |
| SW1/SW2 | 19/19 |
| L | 23 |
| i | 12 |
| z | 16 |
| e | 7 |
| Artikelnummer | 0581651390 |
| RSK | |
| d | 12 |
| bar | 160 |
| M | M16x1 |
| SW1/SW2 | 22/22 |
| L | 24.5 |
| i | 12 |
| z | 17.5 |
| e | 10 |
| Artikelnummer | 0581651534 |
| RSK | |
| d | 15 |
| bar | 100 |
| M | M20x1.5 |
| SW1/SW2 | 27/27 |
| L | 29.5 |
| i | 14 |
| z | 22 |
| e | 13 |
| Artikelnummer | 0581651648 |
| RSK | |
| d | 18 |
| bar | 100 |
| M | M24x1.5 |
| SW1/SW2 | 32/27 |
| L | 29.5 |
| i | 14 |
| z | 22 |
| e | 13 |
| Artikelnummer | 0581651768 |
| RSK | |
| d | 22 |
| bar | 64 |
| M | M28x1.5 |
| SW1/SW2 | 36/32 |
| L | 30.5 |
| i | 16 |
| z | 22 |
| e | 19 |
