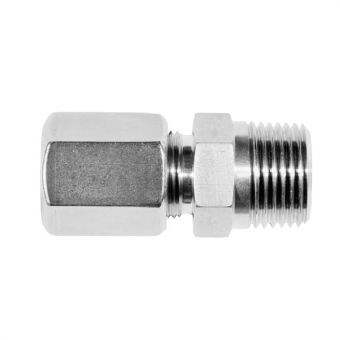

SO 51121 NPT

Union utv. gänga

  • Syrafast-union utv. gänga NPT
Nollställ
Visa alla mått +

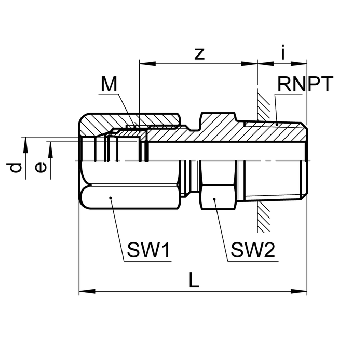

Artikelnummer RSK dRbarMSW1/SW2LizeFiler
0581102020 2NPT1/8250M6x0.758/1224.57141.5
0581102035 3NPT1/16250M6x0.758/8247122.2
0581102045 3.2NPT1/8250M6x0.758/12267142.2
0581102060 4NPT1/8250M8x110/1229.57173.5
0581102065 4NPT1/4200M10x112/143710193.5
0581102082 5NPT1/8250M8x110/12307173.5
0581102084 5NPT1/4200M10x112/143710194
0581102135 6.35NPT1/8200M10x112/12327174.5
0581102140 6.35NPT1/4200M10x112/143710194.5
0581102145 6.35NPT3/8200M12x114/1738.510204.5
0581102150 6.35NPT1/2200M12x114/22451422.54.5
0581102230 9.52NPT1/4160M14x117/14421020.58
0581102240 9.52NPT1/2160M14x117/22481426.58
0581102405 12NPT3/4160M16x119/2751142510
0581102434 12.7NPT1/2160M20x1.524/22521424.511
0581102474 13.5NPT1/2100M20x1.524/2252.51424.512
0581102504 14NPT1/2100M20x1.524/2252.51424.512
0581102566 16NPT1/2100M24x1.530/24551425.513.5
0581102616 17.2NPT1/2100M24x1.530/24551425.513.5
0581102646 18NPT1/2100M24x1.530/24551425.513.5
0581102648 18NPT3/464M28x1.532/3060142716
0581102738 21.3NPT3/464M28x1.532/3060142719
Artikelnummer 0581102020
RSK
d 2
R NPT1/8
bar 250
M M6x0.75
SW1/SW2 8/12
L 24.5
i 7
z 14
e 1.5
Artikelnummer 0581102035
RSK
d 3
R NPT1/16
bar 250
M M6x0.75
SW1/SW2 8/8
L 24
i 7
z 12
e 2.2
Artikelnummer 0581102045
RSK
d 3.2
R NPT1/8
bar 250
M M6x0.75
SW1/SW2 8/12
L 26
i 7
z 14
e 2.2
Artikelnummer 0581102060
RSK
d 4
R NPT1/8
bar 250
M M8x1
SW1/SW2 10/12
L 29.5
i 7
z 17
e 3.5
Artikelnummer 0581102065
RSK
d 4
R NPT1/4
bar 200
M M10x1
SW1/SW2 12/14
L 37
i 10
z 19
e 3.5
Artikelnummer 0581102082
RSK
d 5
R NPT1/8
bar 250
M M8x1
SW1/SW2 10/12
L 30
i 7
z 17
e 3.5
Artikelnummer 0581102084
RSK
d 5
R NPT1/4
bar 200
M M10x1
SW1/SW2 12/14
L 37
i 10
z 19
e 4
Artikelnummer 0581102135
RSK
d 6.35
R NPT1/8
bar 200
M M10x1
SW1/SW2 12/12
L 32
i 7
z 17
e 4.5
Artikelnummer 0581102140
RSK
d 6.35
R NPT1/4
bar 200
M M10x1
SW1/SW2 12/14
L 37
i 10
z 19
e 4.5
Artikelnummer 0581102145
RSK
d 6.35
R NPT3/8
bar 200
M M12x1
SW1/SW2 14/17
L 38.5
i 10
z 20
e 4.5
Artikelnummer 0581102150
RSK
d 6.35
R NPT1/2
bar 200
M M12x1
SW1/SW2 14/22
L 45
i 14
z 22.5
e 4.5
Artikelnummer 0581102230
RSK
d 9.52
R NPT1/4
bar 160
M M14x1
SW1/SW2 17/14
L 42
i 10
z 20.5
e 8
Artikelnummer 0581102240
RSK
d 9.52
R NPT1/2
bar 160
M M14x1
SW1/SW2 17/22
L 48
i 14
z 26.5
e 8
Artikelnummer 0581102405
RSK
d 12
R NPT3/4
bar 160
M M16x1
SW1/SW2 19/27
L 51
i 14
z 25
e 10
Artikelnummer 0581102434
RSK
d 12.7
R NPT1/2
bar 160
M M20x1.5
SW1/SW2 24/22
L 52
i 14
z 24.5
e 11
Artikelnummer 0581102474
RSK
d 13.5
R NPT1/2
bar 100
M M20x1.5
SW1/SW2 24/22
L 52.5
i 14
z 24.5
e 12
Artikelnummer 0581102504
RSK
d 14
R NPT1/2
bar 100
M M20x1.5
SW1/SW2 24/22
L 52.5
i 14
z 24.5
e 12
Artikelnummer 0581102566
RSK
d 16
R NPT1/2
bar 100
M M24x1.5
SW1/SW2 30/24
L 55
i 14
z 25.5
e 13.5
Artikelnummer 0581102616
RSK
d 17.2
R NPT1/2
bar 100
M M24x1.5
SW1/SW2 30/24
L 55
i 14
z 25.5
e 13.5
Artikelnummer 0581102646
RSK
d 18
R NPT1/2
bar 100
M M24x1.5
SW1/SW2 30/24
L 55
i 14
z 25.5
e 13.5
Artikelnummer 0581102648
RSK
d 18
R NPT3/4
bar 64
M M28x1.5
SW1/SW2 32/30
L 60
i 14
z 27
e 16
Artikelnummer 0581102738
RSK
d 21.3
R NPT3/4
bar 64
M M28x1.5
SW1/SW2 32/30
L 60
i 14
z 27
e 19
Datablad
