Visa alla mått +
| Artikelnummer | RSK | d | R | bar | M | SW1/SW2 | L1/L2 | z1 | z2 | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0182402135 | 6.35 | NPT1/8 | 250 | M10x1 | 12/10 | 23.5/17.5 | 16 | 11 | 4 | ||
| 0182402285 | 10 | NPT1/2 | 125 | M16x1 | 19/19 | 34/29.5 | 23 | 16 | 8 |

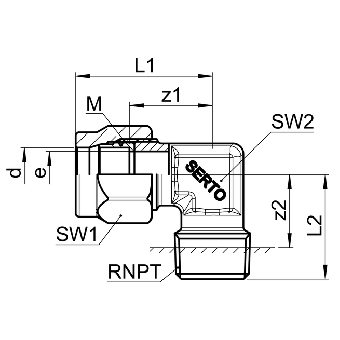

SO 42421 NPT

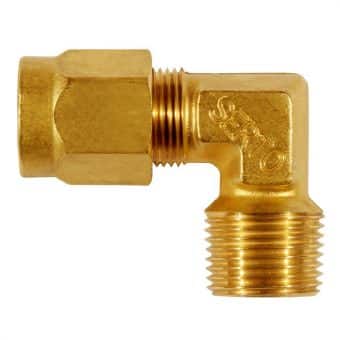

Mässings vinkelunion
- Mässings vinkelunion utv. gänga NPT
Modeller
Specifikationer
| Artikelnummer | 0182402135 |
| RSK | |
| d | 6.35 |
| R | NPT1/8 |
| bar | 250 |
| M | M10x1 |
| SW1/SW2 | 12/10 |
| L1/L2 | 23.5/17.5 |
| z1 | 16 |
| z2 | 11 |
| e | 4 |
| Artikelnummer | 0182402285 |
| RSK | |
| d | 10 |
| R | NPT1/2 |
| bar | 125 |
| M | M16x1 |
| SW1/SW2 | 19/19 |
| L1/L2 | 34/29.5 |
| z1 | 23 |
| z2 | 16 |
| e | 8 |
