Visa alla mått +

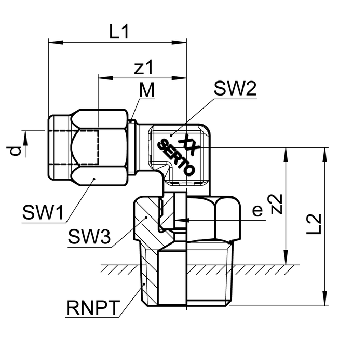

| Artikelnummer | RSK | d | R | bar | M | SW1/SW2/SW3 | L1 | L2 | z1 | z2 | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0182102110 | 6 | NPT1/4 | 250 | M10x1 | 12/10/14 | 23.5 | 32 | 16 | 22 | |||
| 0182102160 | 8 | NPT1/8 | 150 | M12x1 | 14/7/14 | 26 | 34 | 18 | 27 |

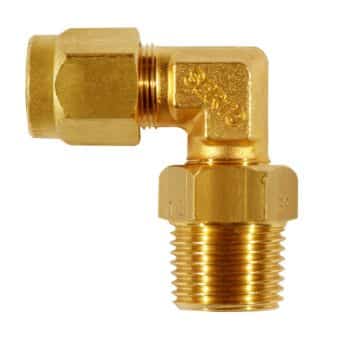

SO 42121 NPT
Vinkelunion utv. gänga
- Vinkelunion utv. gänga mässing NPT
Modeller
Specifikationer
| Artikelnummer | 0182102110 |
| RSK | |
| d | 6 |
| R | NPT1/4 |
| bar | 250 |
| M | M10x1 |
| SW1/SW2/SW3 | 12/10/14 |
| L1 | 23.5 |
| L2 | 32 |
| z1 | 16 |
| z2 | 22 |
| Artikelnummer | 0182102160 |
| RSK | |
| d | 8 |
| R | NPT1/8 |
| bar | 150 |
| M | M12x1 |
| SW1/SW2/SW3 | 14/7/14 |
| L1 | 26 |
| L2 | 34 |
| z1 | 18 |
| z2 | 27 |
