Name: SO41124
SKU: 40675

Visa alla mått +

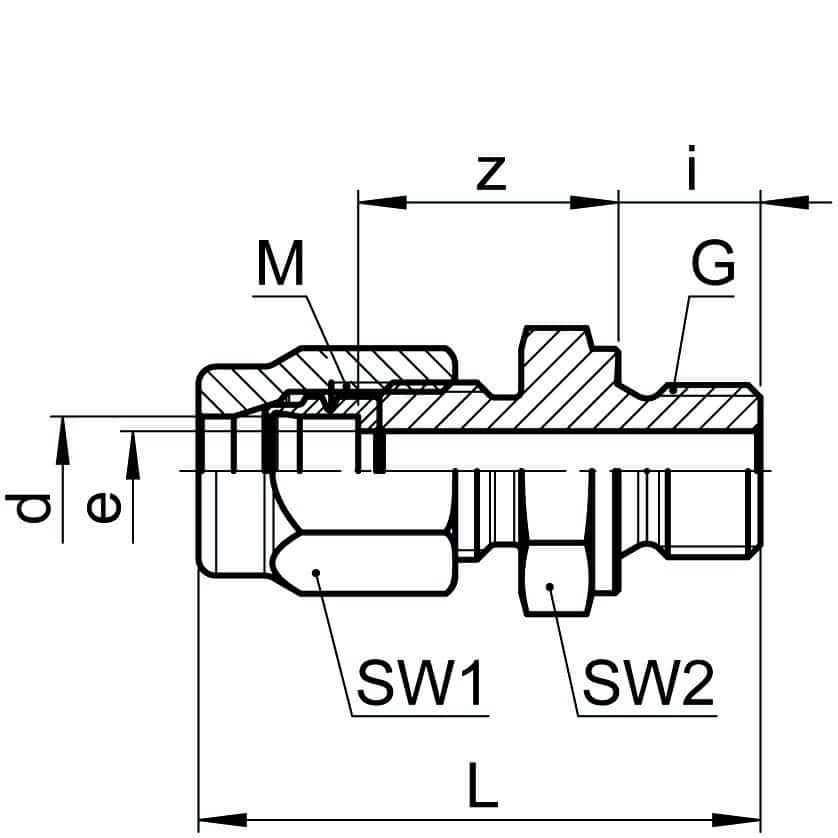

Artikelnummer	d	G	bar	L	D	z	M	SW1	SW2	e
0181141020	2	1/8	125	23.5	14.5	11.5	6x0,75	8	14	1.5
0181141040	3	1/8	125	25	14.5	12	6x0,75	8	14	2.5
0181141060	4	1/8	125	28.5	14.5	14.5	8x1	10	14	3.4
0181141065	4	1/4	125	35.5	18.5	16	10x1	12	19	3.4
0181141082	5	1/8	125	29	14.5	14.5	8x1	10	14	3.5
0181141084	5	1/4	125	35.5	18.5	16	10x1	12	19	4
0181141100	6	1/8	250	30	14.5	14.5	10x1	12	14	4.5
0181141110	6	1/4	250	35.5	18.5	16	10x1	12	19	4.5
0181141120	6	3/8	250	38.5	22.5	18.5	12x1	14	22	6.5
0181141125	6	1/2	250	42	26.5	20	12x1	14	27	4.5
0181141160	8	1/8	150	31.5	14.5	15.5	12x1	14	14	4.5
0181141170	8	1/4	150	37	18.5	17	12x1	14	19	6.5
0181141180	8	3/8	150	38.5	22.5	18.5	12x1	14	22	6.5
0181141185	8	1/2	150	42	27	20	12x1	14	27	6.5
0181141270	10	1/4	125	39	18.5	17	14x1	17	19	7
0181141280	10	3/8	125	40.5	22.5	18.5	14x1	17	22	8.5
0181141285	10	1/2	125	45	27	20	16x1	19	27	8.5
0181141380	12	1/4	100	40	18.5	17	16x1	19	19	7
0181141390	12	3/8	100	41.5	22.5	18.5	16x1	19	22	10
0181141400	12	1/2	100	45	27	20	16x1	19	27	10
0181141045	3.2	1/8	125	25	14.5	12	6x0,75	8	14	2.2
0181141135	6.35	1/8	250	30	14.5	14.5	10x1	12	14	4.5
0181141140	6.35	1/4	250	35.5	18.5	16	10x1	12	19	4.5
0181141230	9.52	1/4	125	39	18.5	17	14x1	17	19	8
0181141235	9.52	3/8	125	40.5	22.5	18.5	14x1	17	22	8

Datablad

Produktblad

SO41124
