Visa alla mått +

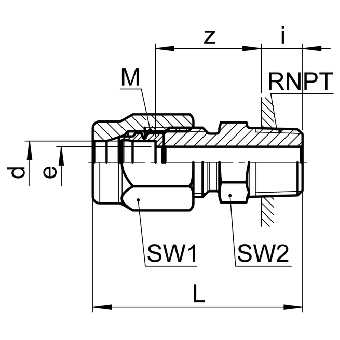

| Artikelnummer | RSK | d | R | bar | M | SW1 | SW2 | L | i | z | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0181102045 | 3.2 | NPT1/8 | 100 | M8x1 | 10 | 12 | 29.5 | 7 | 17 | 2.5 | ||
| 0181102125 | 6 | NPT1/2 | 250 | M12x1 | 14 | 22 | 44 | 14 | 22.5 | 4.5 | ||
| 0181102135 | 6.35 | NPT1/8 | 250 | M10x1 | 12 | 12 | 31 | 7 | 17 | 4.5 |

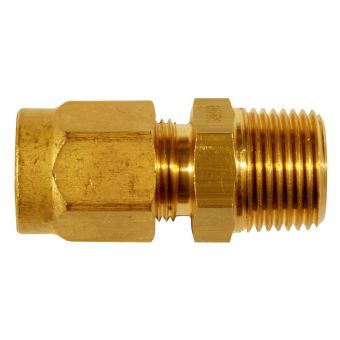

SO 41121 NPT
union utv. gänga
- union utv. gänga mässing NPT
Modeller
Specifikationer
| Artikelnummer | 0181102045 |
| RSK | |
| d | 3.2 |
| R | NPT1/8 |
| bar | 100 |
| M | M8x1 |
| SW1 | 10 |
| SW2 | 12 |
| L | 29.5 |
| i | 7 |
| z | 17 |
| e | 2.5 |
| Artikelnummer | 0181102125 |
| RSK | |
| d | 6 |
| R | NPT1/2 |
| bar | 250 |
| M | M12x1 |
| SW1 | 14 |
| SW2 | 22 |
| L | 44 |
| i | 14 |
| z | 22.5 |
| e | 4.5 |
| Artikelnummer | 0181102135 |
| RSK | |
| d | 6.35 |
| R | NPT1/8 |
| bar | 250 |
| M | M10x1 |
| SW1 | 12 |
| SW2 | 12 |
| L | 31 |
| i | 7 |
| z | 17 |
| e | 4.5 |
