Visa alla mått +

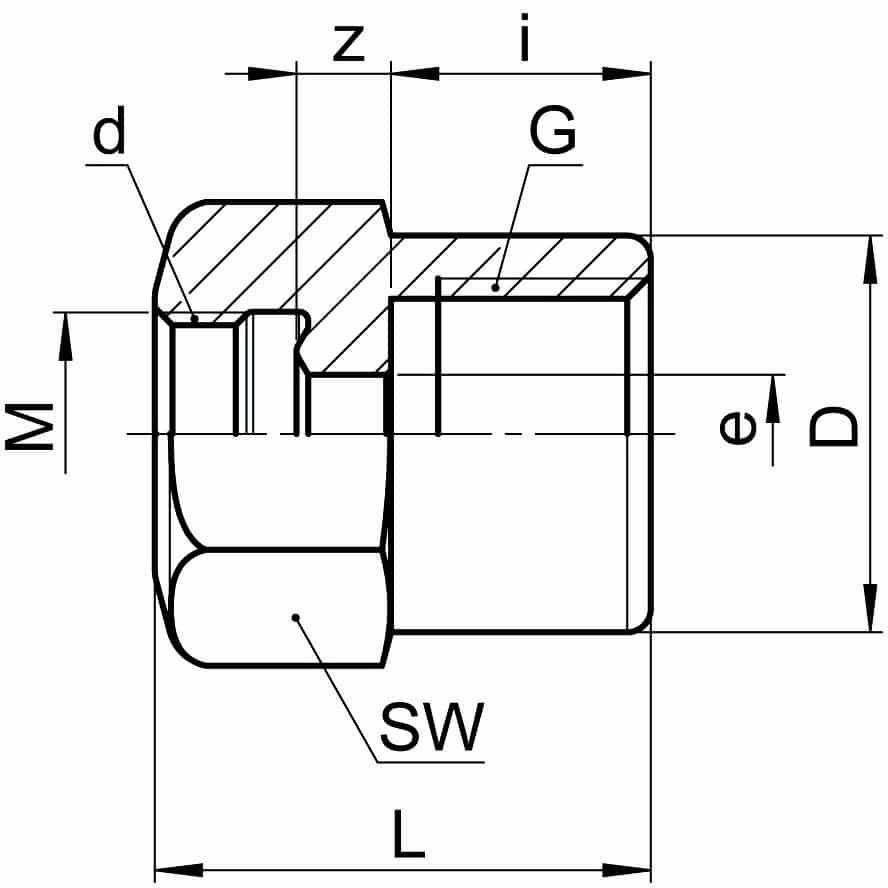

| Artikelnummer | RSK | d | G | bar | L | D | z | M | e | SW | i | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0160301100 | 6 | 1/8 | 250 | 20 | 13.8 | 4 | 10 x 1 | 5 | 14 | 10 | ||
| 0160301110 | 6 | 1/4 | 250 | 21 | 16.8 | 4 | 10 x 1 | 5 | 17 | 11 | ||
| 0160301120 | 6 | 3/8 | 250 | 22 | 21.8 | 4 | 10 x 1 | 5 | 22 | 12 | ||
| 0160301160 | 8 | 1/8 | 150 | 21 | 16.8 | 4 | 12 x 1 | 6.5 | 17 | 10 | ||
| 0160301170 | 8 | 1/4 | 150 | 23 | 16.8 | 5 | 12 x 1 | 6.5 | 17 | 11 | ||
| 0160301180 | 8 | 3/8 | 150 | 23 | 21.8 | 4 | 12 x 1 | 6.5 | 22 | 12 | ||
| 0160301270 | 10 | 1/4 | 125 | 22 | 16.8 | 4 | 14 x 1 | 8.5 | 17 | 11 | ||
| 0160301280 | 10 | 3/8 | 125 | 23 | 21.8 | 5 | 14 x 1 | 8.5 | 22 | 12 | ||
| 0160301380 | 12 | 1/4 | 100 | 22 | 18.8 | 4 | 16 x 1 | 10.5 | 19 | 11 | ||
| 0160301390 | 12 | 3/8 | 100 | 23 | 21.8 | 4 | 16 x 1 | 10.5 | 22 | 12 | ||
| 0160301400 | 12 | 1/2 | 100 | 25 | 26.8 | 4 | 16 x 1 | 10.5 | 27 | 14 | ||
| 0160301532 | 15 | 3/8 | 40 | 25 | 23.8 | 5 | 20 x 1,5 | 13 | 24 | 12 | ||
| 0160301534 | 15 | 1/2 | 40 | 27 | 26.8 | 5 | 20 x 1,5 | 13 | 27 | 14 | ||
| 0160301536 | 15 | 3/4 | 40 | 30 | 31.8 | 5 | 20 x 1,5 | 13 | 32 | 17 | ||
| 0160301646 | 18 | 1/2 | 40 | 28 | 29.8 | 6 | 24 x 1,5 | 15 | 30 | 14 | ||
| 0160301648 | 18 | 3/4 | 40 | 31 | 31.8 | 6 | 24 x 1,5 | 15 | 32 | 17 | ||
| 0160301768 | 22 | 3/4 | 25 | 31 | 35.8 | 6 | 28 x 1,5 | 19 | 36 | 17 | ||
| 0160301850 | 28 | 1 | 16 | 37 | 40.8 | 7 | 36 x 2 | 25 | 41 | 20 | ||
| 0160301944 | 35 | 1 1/4 | 16 | 41 | 49.8 | 7 | 42 x 2 | 31 | 50 | 22 |
