Visa alla mått +

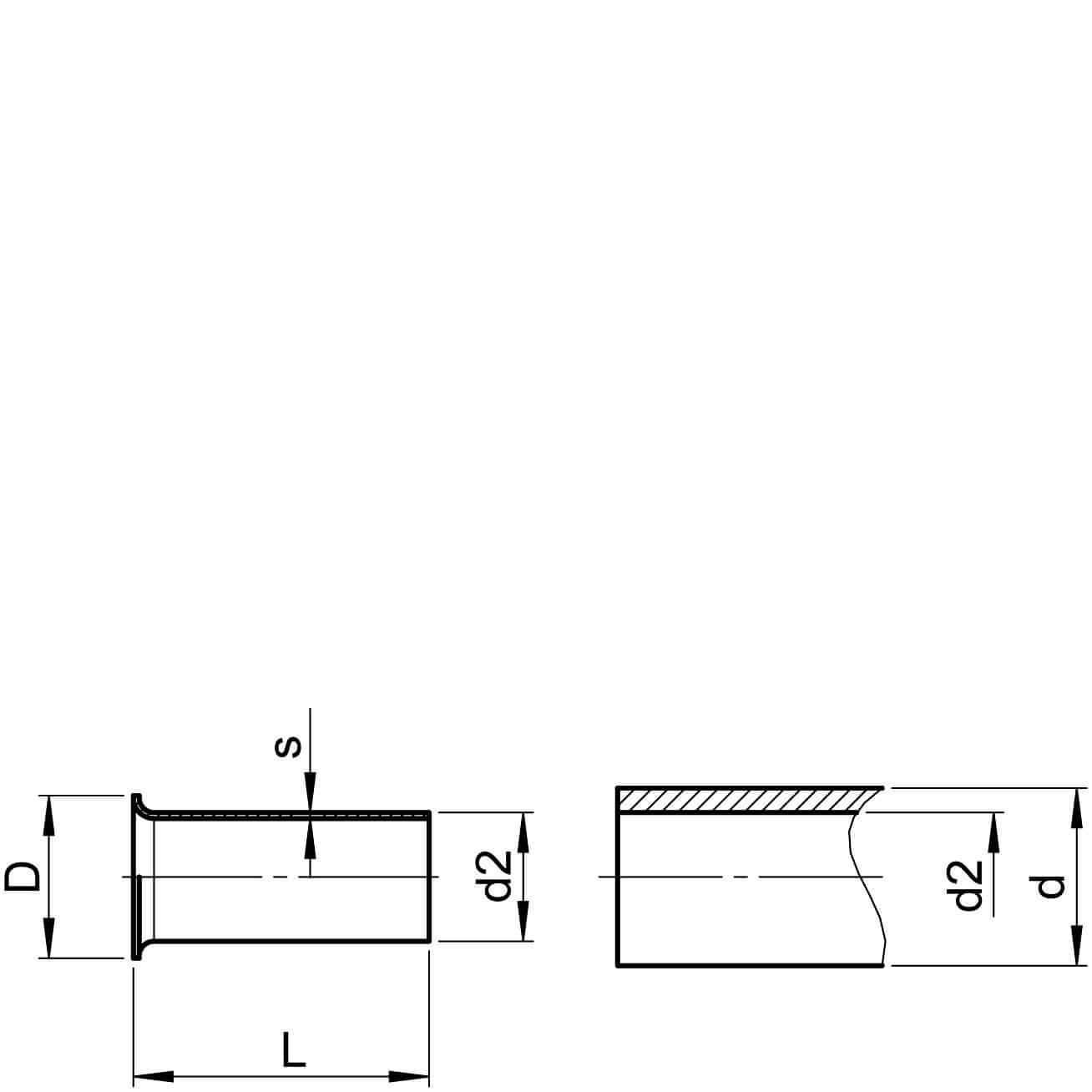

| Artikelnummer | RSK | d | d2 | L | D | s | Filer |
|---|---|---|---|---|---|---|---|
| 0160030020 | 3 | 2 | 6 | 2.8 | 0.2 | ||
| 0160030024 | 3 | 2.4 | 6 | 2.8 | 0.2 | ||
| 0160030030 | 4 | 2 | 8 | 3.8 | 0.2 | ||
| 0160030035 | 4 | 2.5 | 8 | 3.8 | 0.2 | ||
| 0160030040 | 4 | 3 | 8 | 3.8 | 0.2 | ||
| 0160030060 | 5 | 3 | 8 | 4.5 | 0.2 | ||
| 0160030075 | 5 | 3.5 | 8 | 4.5 | 0.2 | ||
| 0160030100 | 6 | 3 | 10 | 5.2 | 0.2 | ||
| 0160030110 | 6 | 4 | 10 | 5.5 | 0.2 | ||
| 0160030113 | 6 | 4.4 | 10 | 5.5 | 0.2 | ||
| 0160030116 | 6 | 4.65 | 10 | 5.5 | 0.2 | ||
| 0160030136 | 8 | 5 | 12 | 7.5 | 0.25 | ||
| 0160030138 | 8 | 5.5 | 12 | 7.5 | 0.25 | ||
| 0160030140 | 8 | 6 | 12 | 7.5 | 0.25 | ||
| 0160030144 | 8 | 6.4 | 12 | 7.5 | 0.25 | ||
| 0160030180 | 10 | 7 | 16 | 9.5 | 0.3 | ||
| 0160030185 | 10 | 7.5 | 16 | 9.5 | 0.3 | ||
| 0160030190 | 10 | 8 | 16 | 9.5 | 0.3 | ||
| 0160030192 | 10 | 8.4 | 16 | 9.5 | 0.3 | ||
| 0160030193 | 10 | 8.6 | 16 | 9.5 | 0.3 | ||
| 0160030230 | 12 | 9 | 20 | 11.5 | 0.4 | ||
| 0160030235 | 12 | 9.5 | 20 | 11.5 | 0.4 | ||
| 0160030240 | 12 | 10 | 20 | 11.5 | 0.4 | ||
| 0160030254 | 12 | 10.4 | 20 | 11.5 | 0.4 | ||
| 0160030257 | 12 | 11 | 20 | 12 | 1 | ||
| 0160030280 | 13 | 11 | 20 | 12.5 | 0.5 | ||
| 0160030330 | 14 | 11 | 24 | 13.5 | 0.5 | ||
| 0160030335 | 14 | 11.5 | 24 | 13.5 | 0.5 | ||
| 0160030340 | 14 | 12 | 24 | 13.5 | 0.5 | ||
| 0160030425 | 15 | 12.5 | 24 | 14.5 | 0.5 | ||
| 0160030430 | 15 | 13 | 24 | 14.5 | 0.5 | ||
| 0160030495 | 16 | 13.5 | 26 | 15.5 | 0.5 | ||
| 0160030500 | 16 | 14 | 26 | 15.5 | 0.5 | ||
| 0160030540 | 17 | 15 | 26 | 16.5 | 0.6 | ||
| 0160030610 | 18 | 15 | 26 | 16.5 | 0.6 | ||
| 0160030616 | 18 | 15.6 | 26 | 17.5 | 0.6 | ||
| 0160030620 | 18 | 16 | 26 | 17.5 | 0.6 | ||
| 0160030640 | 19 | 17 | 28 | 18.5 | 0.6 | ||
| 0160030690 | 20 | 17 | 28 | 19.5 | 0.6 | ||
| 0160030700 | 20 | 18 | 28 | 19.5 | 0.6 | ||
| 0160030760 | 22 | 19 | 30 | 21.5 | 0.6 | ||
| 0160030771 | 22 | 19.6 | 30 | 21.5 | 0.6 | ||
| 0160030775 | 22 | 20 | 30 | 21.5 | 0.6 | ||
| 0160030870 | 28 | 25 | 36 | 27.5 | 0.8 | ||
| 0160030876 | 28 | 25.6 | 36 | 27.5 | 0.8 | ||
| 0160030890 | 35 | 32 | 41 | 34 | 0.85 | ||
| 0160030112 | 6.35 | 4.3 | 10 | 5.5 | 0.2 | ||
| 0160030160 | 9.52 | 6.35 | 16 | 9 | 0.3 | ||
| 0160030269 | 12.7 | 10.7 | 20 | 12.5 | 0.5 | ||
| 0160030271 | 12.7 | 10.9 | 20 | 12.5 | 0.5 | ||
| 0160030465 | 15.88 | 14.25 | 26 | 15.5 | 0.5 |
