SO31624 OR

Svivel utv. gänga o-ring

Visa alla mått +

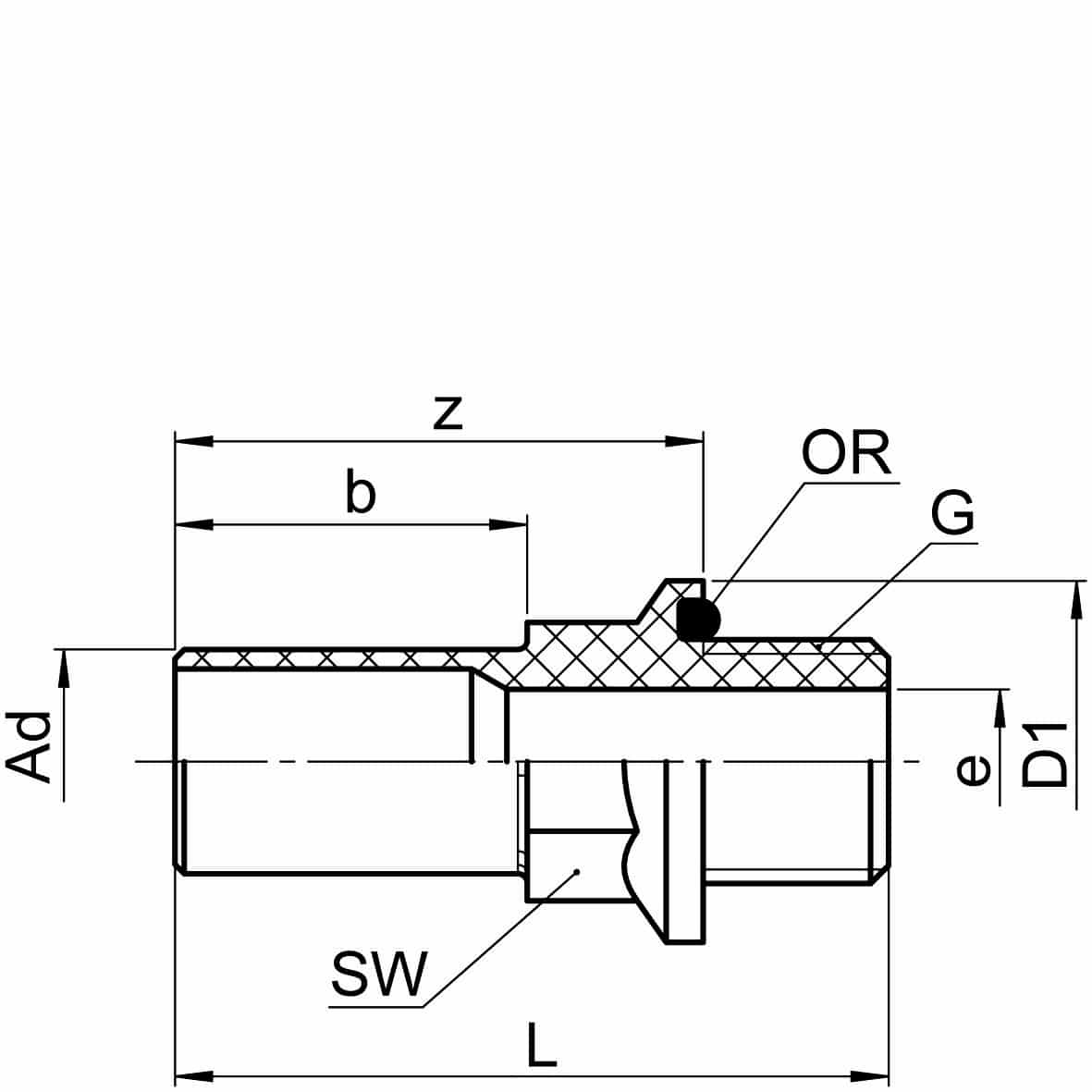

Artikelnummer	AD	G	bar	L	z	D1	b	e	SW
1661681100	6	1/8	10	30.5	22.5	16	13	4	10
1661681110	6	1/4	10	32.5	22.5	19.5	13	4	13
1661681120	6	3/8	10	33.5	23.5	23.5	13	4	17
1661681160	8	1/8	10	31.5	23.5	16	14	5.1	10
1661681170	8	1/4	10	33.5	23.5	19.5	14	6	13
1661681180	8	3/8	10	34.5	24.5	23.5	14	6	17
1661681270	10	1/4	10	34.5	24.5	19.5	15	8	13
1661681280	10	3/8	10	35.5	25.5	23.5	15	8	17
1661681285	10	1/2	10	40.5	28.5	30	15	8	19
1661681380	12	1/4	10	38.5	28.5	19.5	19	6.6	13
1661681390	12	3/8	10	39.5	29.5	23.5	19	10	17
1661681400	12	1/2	10	44.5	32.5	30	19	10	19

Datablad
