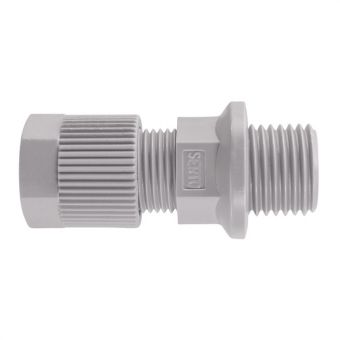

PA-union utv. gänga

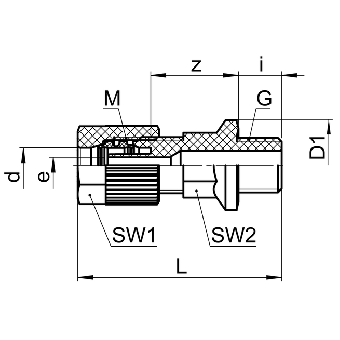

| Artikelnummer | RSK | d | G | bar | M | SW1 | SW2 | L | D1 | i | z | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1681161110 | 6 | 1/4 | 10 | M10x1 | 12 | 13 | 36.5 | 19 | 10 | 15.5 | 2.8 | ||
| 1681161160 | 8 | 1/8 | 10 | M12x1 | 14 | 10 | 36.5 | 16 | 8 | 15.5 | 4.8 | ||
| 1681161170 | 8 | 1/4 | 10 | M12x1 | 14 | 13 | 38.5 | 19 | 10 | 15.5 | 4.8 | ||
| 1681161270 | 10 | 1/4 | 10 | M14x1 | 17 | 13 | 39 | 19.5 | 10 | 15 | 6.6 | ||
| 1681161280 | 10 | 3/8 | 10 | M14x1 | 17 | 17 | 40 | 23.5 | 10 | 16 | 6.6 | ||
| 1681161380 | 12 | 1/4 | 10 | M16x1 | 19 | 13 | 41.5 | 19.5 | 10 | 14 | 8 | ||
| 1681161390 | 12 | 3/8 | 10 | M16x1 | 19 | 17 | 42.5 | 23 | 10 | 15 | 8 |
| Artikelnummer | 1681161110 |
| RSK | |
| d | 6 |
| G | 1/4 |
| bar | 10 |
| M | M10x1 |
| SW1 | 12 |
| SW2 | 13 |
| L | 36.5 |
| D1 | 19 |
| i | 10 |
| z | 15.5 |
| e | 2.8 |
| Artikelnummer | 1681161160 |
| RSK | |
| d | 8 |
| G | 1/8 |
| bar | 10 |
| M | M12x1 |
| SW1 | 14 |
| SW2 | 10 |
| L | 36.5 |
| D1 | 16 |
| i | 8 |
| z | 15.5 |
| e | 4.8 |
| Artikelnummer | 1681161170 |
| RSK | |
| d | 8 |
| G | 1/4 |
| bar | 10 |
| M | M12x1 |
| SW1 | 14 |
| SW2 | 13 |
| L | 38.5 |
| D1 | 19 |
| i | 10 |
| z | 15.5 |
| e | 4.8 |
| Artikelnummer | 1681161270 |
| RSK | |
| d | 10 |
| G | 1/4 |
| bar | 10 |
| M | M14x1 |
| SW1 | 17 |
| SW2 | 13 |
| L | 39 |
| D1 | 19.5 |
| i | 10 |
| z | 15 |
| e | 6.6 |
| Artikelnummer | 1681161280 |
| RSK | |
| d | 10 |
| G | 3/8 |
| bar | 10 |
| M | M14x1 |
| SW1 | 17 |
| SW2 | 17 |
| L | 40 |
| D1 | 23.5 |
| i | 10 |
| z | 16 |
| e | 6.6 |
| Artikelnummer | 1681161380 |
| RSK | |
| d | 12 |
| G | 1/4 |
| bar | 10 |
| M | M16x1 |
| SW1 | 19 |
| SW2 | 13 |
| L | 41.5 |
| D1 | 19.5 |
| i | 10 |
| z | 14 |
| e | 8 |
| Artikelnummer | 1681161390 |
| RSK | |
| d | 12 |
| G | 3/8 |
| bar | 10 |
| M | M16x1 |
| SW1 | 19 |
| SW2 | 17 |
| L | 42.5 |
| D1 | 23 |
| i | 10 |
| z | 15 |
| e | 8 |
