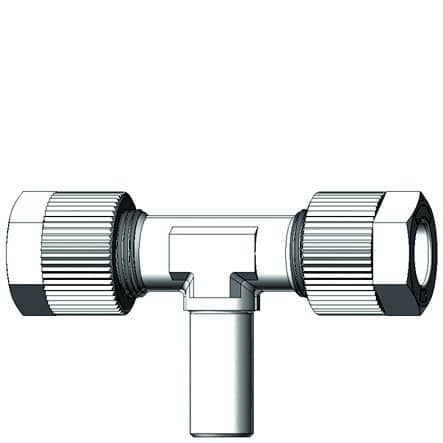

Svivel T-rör

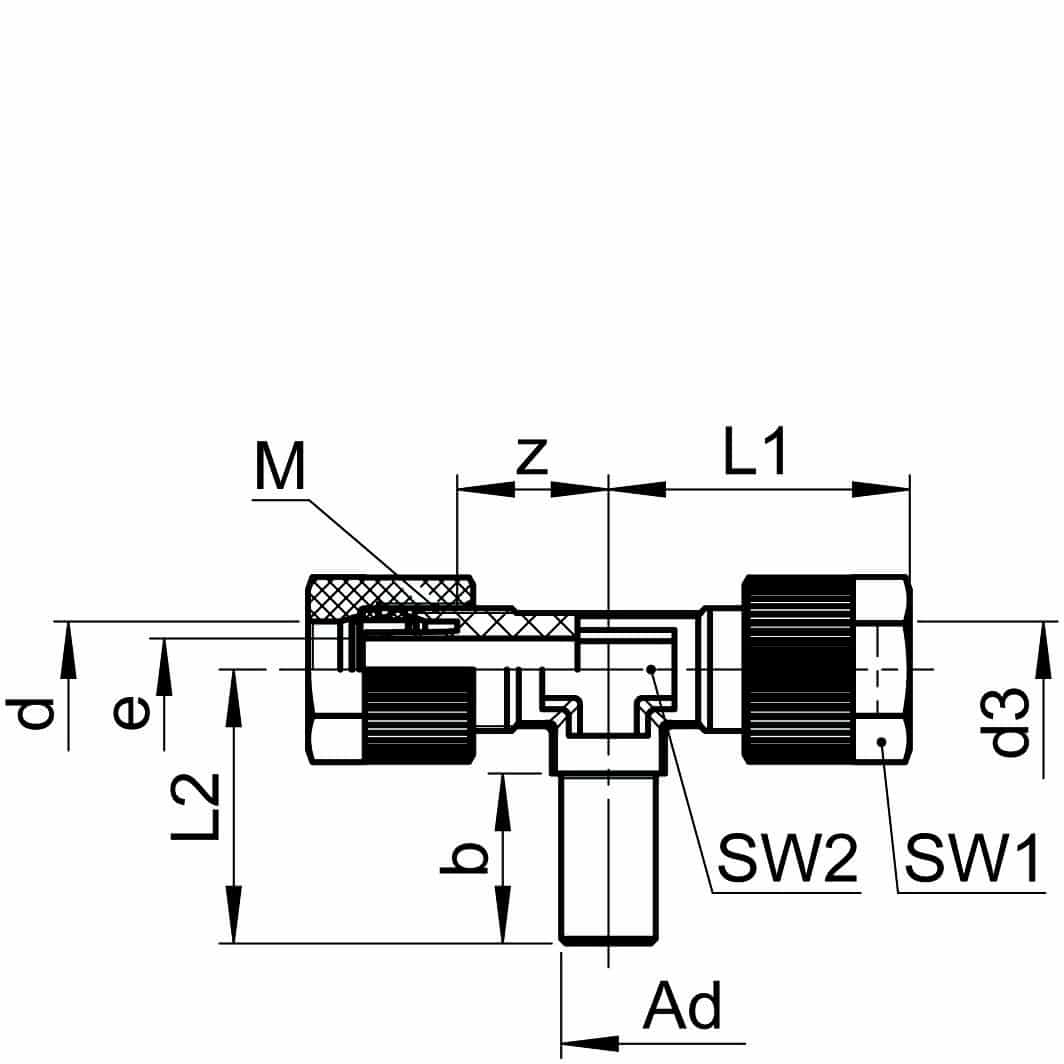

| Artikelnummer | RSK | d | AD | bar | e | z | M | SW1 | SW2 | L1/L2 | b | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1283600060 | 6/4 | 6 | 10 | 2.8 | 14 | 10 x 1 | 12 | 8 | 25/24 | 14 | ||
| 1283600080 | 8/6 | 8 | 10 | 4.8 | 14.5 | 12 x 1 | 14 | 10 | 26,5/25 | 16 | ||
| 1283600100 | 10/8 | 10 | 10 | 6.6 | 16 | 14 x 1 | 17 | 12 | 30/29 | 20 | ||
| 1283600120 | 12/10 | 12 | 10 | 8 | 16 | 16 x 1 | 19 | 13 | 32,5/30 | 21 |
| Artikelnummer | 1283600060 |
| RSK | |
| d | 6/4 |
| AD | 6 |
| bar | 10 |
| e | 2.8 |
| z | 14 |
| M | 10 x 1 |
| SW1 | 12 |
| SW2 | 8 |
| L1/L2 | 25/24 |
| b | 14 |
| Artikelnummer | 1283600080 |
| RSK | |
| d | 8/6 |
| AD | 8 |
| bar | 10 |
| e | 4.8 |
| z | 14.5 |
| M | 12 x 1 |
| SW1 | 14 |
| SW2 | 10 |
| L1/L2 | 26,5/25 |
| b | 16 |
| Artikelnummer | 1283600100 |
| RSK | |
| d | 10/8 |
| AD | 10 |
| bar | 10 |
| e | 6.6 |
| z | 16 |
| M | 14 x 1 |
| SW1 | 17 |
| SW2 | 12 |
| L1/L2 | 30/29 |
| b | 20 |
| Artikelnummer | 1283600120 |
| RSK | |
| d | 12/10 |
| AD | 12 |
| bar | 10 |
| e | 8 |
| z | 16 |
| M | 16 x 1 |
| SW1 | 19 |
| SW2 | 13 |
| L1/L2 | 32,5/30 |
| b | 21 |
