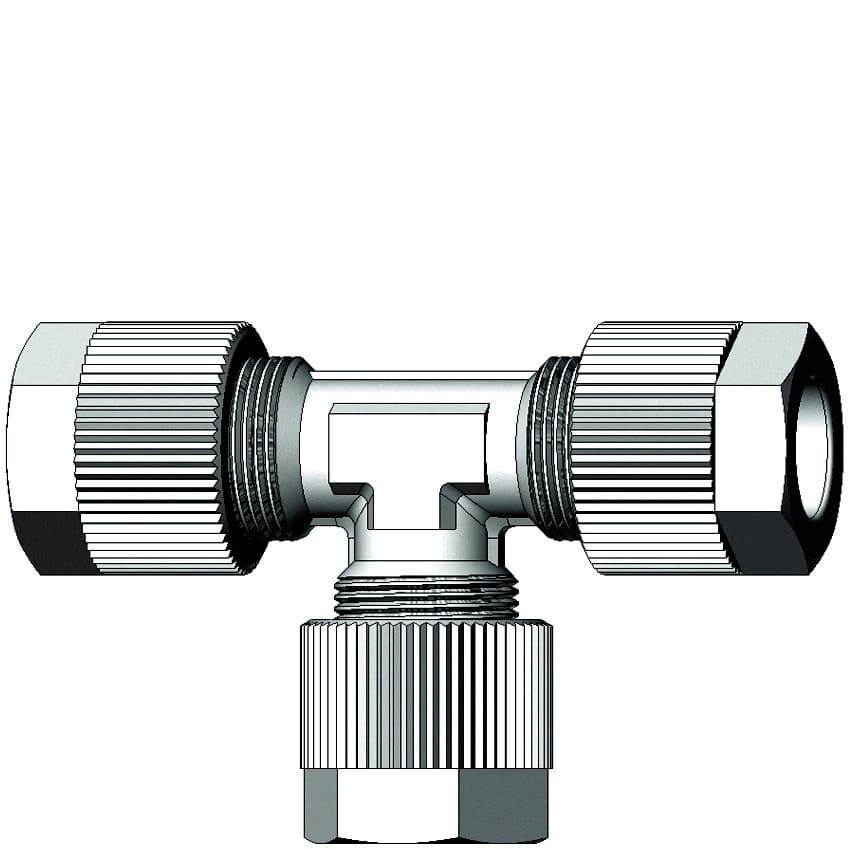

Union T-rör

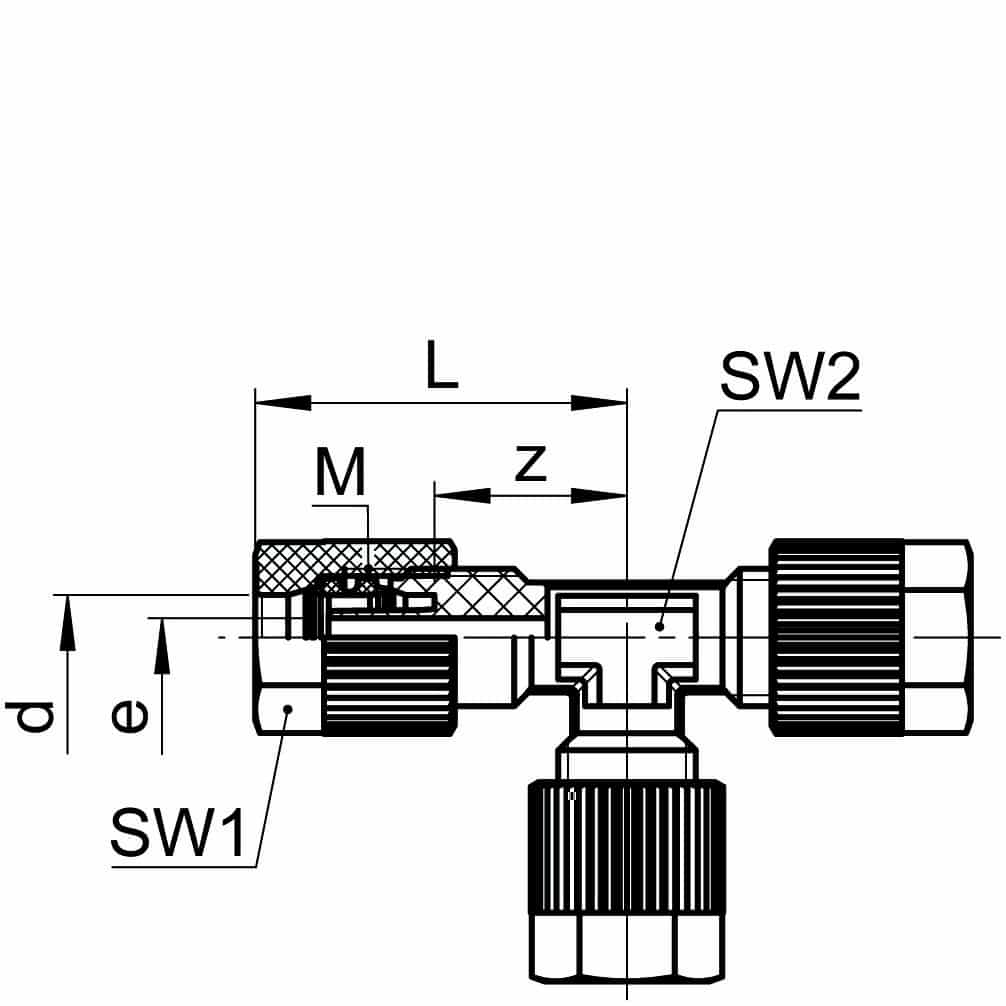

| Artikelnummer | RSK | d | bar | L | z | M | SW1 | SW2 | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|
| 1283000040 | 4/2 | 10 | 25 | 14 | 10 x 1 | 12 | 8 | 3.1 | ||
| 1283000060 | 6/4 | 10 | 25 | 14 | 10 x 1 | 12 | 10 | 2.8 | ||
| 1283000080 | 8/6 | 10 | 26.5 | 14.5 | 12 x 1 | 14 | 10 | 4.8 | ||
| 1283000100 | 10/8 | 10 | 30 | 16 | 14 x 1 | 17 | 12 | 6.6 | ||
| 1283000102 | 10/7 | 10 | 30 | 16 | 14 x 1 | 17 | 12 | 5.6 | ||
| 1283000120 | 12/10 | 10 | 32.5 | 16 | 16 x 1 | 19 | 13 | 8 | ||
| 1283000122 | 12/9 | 10 | 32.5 | 16 | 16 x 1 | 19 | 13 | 7 | ||
| 1283000160 | 16/13 | 10 | 45.5 | 23 | 22 x 1,5 | 24 | 19 | 11 |
| Artikelnummer | 1283000040 |
| RSK | |
| d | 4/2 |
| bar | 10 |
| L | 25 |
| z | 14 |
| M | 10 x 1 |
| SW1 | 12 |
| SW2 | 8 |
| e | 3.1 |
| Artikelnummer | 1283000060 |
| RSK | |
| d | 6/4 |
| bar | 10 |
| L | 25 |
| z | 14 |
| M | 10 x 1 |
| SW1 | 12 |
| SW2 | 10 |
| e | 2.8 |
| Artikelnummer | 1283000080 |
| RSK | |
| d | 8/6 |
| bar | 10 |
| L | 26.5 |
| z | 14.5 |
| M | 12 x 1 |
| SW1 | 14 |
| SW2 | 10 |
| e | 4.8 |
| Artikelnummer | 1283000100 |
| RSK | |
| d | 10/8 |
| bar | 10 |
| L | 30 |
| z | 16 |
| M | 14 x 1 |
| SW1 | 17 |
| SW2 | 12 |
| e | 6.6 |
| Artikelnummer | 1283000102 |
| RSK | |
| d | 10/7 |
| bar | 10 |
| L | 30 |
| z | 16 |
| M | 14 x 1 |
| SW1 | 17 |
| SW2 | 12 |
| e | 5.6 |
| Artikelnummer | 1283000120 |
| RSK | |
| d | 12/10 |
| bar | 10 |
| L | 32.5 |
| z | 16 |
| M | 16 x 1 |
| SW1 | 19 |
| SW2 | 13 |
| e | 8 |
| Artikelnummer | 1283000122 |
| RSK | |
| d | 12/9 |
| bar | 10 |
| L | 32.5 |
| z | 16 |
| M | 16 x 1 |
| SW1 | 19 |
| SW2 | 13 |
| e | 7 |
| Artikelnummer | 1283000160 |
| RSK | |
| d | 16/13 |
| bar | 10 |
| L | 45.5 |
| z | 23 |
| M | 22 x 1,5 |
| SW1 | 24 |
| SW2 | 19 |
| e | 11 |
