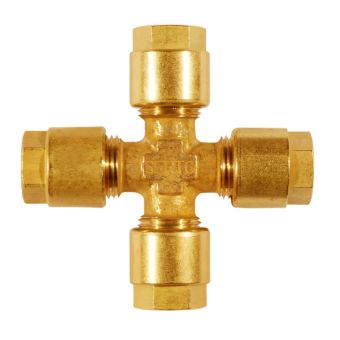

Mässings korsrör

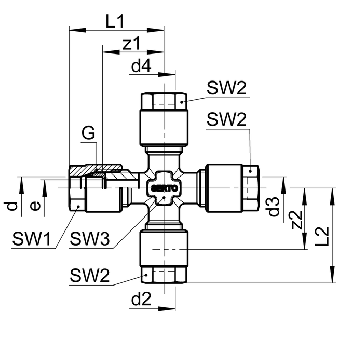

| Artikelnummer | RSK | d | G | d2 | d3 | bar | SW1/SW2/SW3 | L1 | L2 | z1 | z2 | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2484004076 | 8 | 1/4 | 6 | 6 | 125 | 14/14/11 | 32 | 31.5 | 22 | 22 | |||
| 2484004097 | 10 | 3/8 | 8 | 8 | 100 | 17/17/14 | 35.5 | 35 | 23 | 23 | |||
| 2484004117 | 12 | 1/2 | 10 | 10 | 100 | 19/19/19 | 44 | 42 | 29 | 29 | |||
| 2484004135 | 14 | 1/2 | 10 | 10 | 64 | 22/19/19 | 49.5 | 45 | 29 | 29 | |||
| 2484004137 | 14 | 1/2 | 12 | 12 | 64 | 22/19/19 | 49.5 | 45 | 29 | 29 | |||
| 2484004144 | 15 | 1/2 | 10 | 10 | 64 | 22/19/19 | 47.5 | 45 | 29 | 29 | |||
| 2484004146 | 15 | 1/2 | 12 | 12 | 64 | 22/19/19 | 47.5 | 45 | 29 | 29 |
| Artikelnummer | 2484004076 |
| RSK | |
| d | 8 |
| G | 1/4 |
| d2 | 6 |
| d3 | 6 |
| bar | 125 |
| SW1/SW2/SW3 | 14/14/11 |
| L1 | 32 |
| L2 | 31.5 |
| z1 | 22 |
| z2 | 22 |
| Artikelnummer | 2484004097 |
| RSK | |
| d | 10 |
| G | 3/8 |
| d2 | 8 |
| d3 | 8 |
| bar | 100 |
| SW1/SW2/SW3 | 17/17/14 |
| L1 | 35.5 |
| L2 | 35 |
| z1 | 23 |
| z2 | 23 |
| Artikelnummer | 2484004117 |
| RSK | |
| d | 12 |
| G | 1/2 |
| d2 | 10 |
| d3 | 10 |
| bar | 100 |
| SW1/SW2/SW3 | 19/19/19 |
| L1 | 44 |
| L2 | 42 |
| z1 | 29 |
| z2 | 29 |
| Artikelnummer | 2484004135 |
| RSK | |
| d | 14 |
| G | 1/2 |
| d2 | 10 |
| d3 | 10 |
| bar | 64 |
| SW1/SW2/SW3 | 22/19/19 |
| L1 | 49.5 |
| L2 | 45 |
| z1 | 29 |
| z2 | 29 |
| Artikelnummer | 2484004137 |
| RSK | |
| d | 14 |
| G | 1/2 |
| d2 | 12 |
| d3 | 12 |
| bar | 64 |
| SW1/SW2/SW3 | 22/19/19 |
| L1 | 49.5 |
| L2 | 45 |
| z1 | 29 |
| z2 | 29 |
| Artikelnummer | 2484004144 |
| RSK | |
| d | 15 |
| G | 1/2 |
| d2 | 10 |
| d3 | 10 |
| bar | 64 |
| SW1/SW2/SW3 | 22/19/19 |
| L1 | 47.5 |
| L2 | 45 |
| z1 | 29 |
| z2 | 29 |
| Artikelnummer | 2484004146 |
| RSK | |
| d | 15 |
| G | 1/2 |
| d2 | 12 |
| d3 | 12 |
| bar | 64 |
| SW1/SW2/SW3 | 22/19/19 |
| L1 | 47.5 |
| L2 | 45 |
| z1 | 29 |
| z2 | 29 |
