Hem / Produkter / Koppling / Slang / Instrumentkoppling / SO 03121

SO 03121

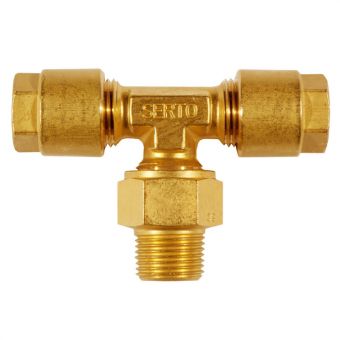

Mässings t-rör

Mässings t-rör utv. gänga

Modeller

Visa alla mått +

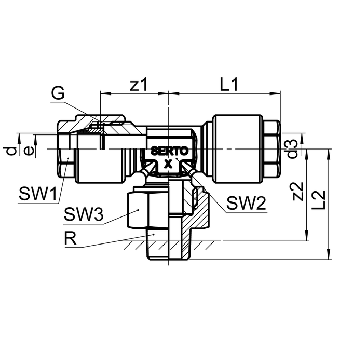

Artikelnummer	RSK	d	d3	R	G	bar	SW1/SW2/SW3	L1	L2	z1	z2	e	Filer
2483101100		6	6	1/8	1/8	125	10/12/14	29	29.5	20	24.5	4
2483101110		6		1/4	1/4	125	11/14/17	32	37	22	29	4.5
2483101120		6		3/8	1/4	125	11/14/17	32	37	22	29	4.5
2483101160		8		1/8	1/4	125	11/14/17	32.5	33	22	28	7
2483101170		8		1/4	1/4	125	11/14/17	32.5	37	22	29	6
2483101180		8		3/8	3/8	125	14/17/22	36	39.5	23	31.5	7
2483101270		10		1/4	3/8	100	14/17/22	36	39.5	23	31.5	8
2483101280		10		3/8	3/8	100	14/17/22	36	39.5	23	31.5	8
2483101290		10		1/2	1/2	100	19/19/27	41	44.5	27	34.5	9
2483101380		12		1/4	1/2	100	19/19/27	40.5	42.5	26	34.5	8.5
2483101390		12		3/8	1/2	100	19/19/27	40.5	42.5	26	34.5	10
2483101400		12		1/2	1/2	100	19/19/27	40.5	44.5	26	34.5	11
2483101410		12		3/4	1/2	100	19/19/30	40.5	46.5	26	34.5	11
2483101540		14		1/2	1/2	64	19/22/27	44	44.5	26.5	34.5	12
2483101590		15		1/2	1/2	64	19/22/27	44	44.5	26.5	34.5	12

Specifikationer


Artikelnummer	2483101100
RSK
d	6
d3	6
R	1/8
G	1/8
bar	125
SW1/SW2/SW3	10/12/14
L1	29
L2	29.5
z1	20
z2	24.5
e	4


Artikelnummer	2483101110
RSK
d	6
R	1/4
G	1/4
bar	125
SW1/SW2/SW3	11/14/17
L1	32
L2	37
z1	22
z2	29
e	4.5


Artikelnummer	2483101120
RSK
d	6
R	3/8
G	1/4
bar	125
SW1/SW2/SW3	11/14/17
L1	32
L2	37
z1	22
z2	29
e	4.5


Artikelnummer	2483101160
RSK
d	8
R	1/8
G	1/4
bar	125
SW1/SW2/SW3	11/14/17
L1	32.5
L2	33
z1	22
z2	28
e	7


Artikelnummer	2483101170
RSK
d	8
R	1/4
G	1/4
bar	125
SW1/SW2/SW3	11/14/17
L1	32.5
L2	37
z1	22
z2	29
e	6


Artikelnummer	2483101180
RSK
d	8
R	3/8
G	3/8
bar	125
SW1/SW2/SW3	14/17/22
L1	36
L2	39.5
z1	23
z2	31.5
e	7


Artikelnummer	2483101270
RSK
d	10
R	1/4
G	3/8
bar	100
SW1/SW2/SW3	14/17/22
L1	36
L2	39.5
z1	23
z2	31.5
e	8


Artikelnummer	2483101280
RSK
d	10
R	3/8
G	3/8
bar	100
SW1/SW2/SW3	14/17/22
L1	36
L2	39.5
z1	23
z2	31.5
e	8


Artikelnummer	2483101290
RSK
d	10
R	1/2
G	1/2
bar	100
SW1/SW2/SW3	19/19/27
L1	41
L2	44.5
z1	27
z2	34.5
e	9


Artikelnummer	2483101380
RSK
d	12
R	1/4
G	1/2
bar	100
SW1/SW2/SW3	19/19/27
L1	40.5
L2	42.5
z1	26
z2	34.5
e	8.5


Artikelnummer	2483101390
RSK
d	12
R	3/8
G	1/2
bar	100
SW1/SW2/SW3	19/19/27
L1	40.5
L2	42.5
z1	26
z2	34.5
e	10


Artikelnummer	2483101400
RSK
d	12
R	1/2
G	1/2
bar	100
SW1/SW2/SW3	19/19/27
L1	40.5
L2	44.5
z1	26
z2	34.5
e	11


Artikelnummer	2483101410
RSK
d	12
R	3/4
G	1/2
bar	100
SW1/SW2/SW3	19/19/30
L1	40.5
L2	46.5
z1	26
z2	34.5
e	11


Artikelnummer	2483101540
RSK
d	14
R	1/2
G	1/2
bar	64
SW1/SW2/SW3	19/22/27
L1	44
L2	44.5
z1	26.5
z2	34.5
e	12


Artikelnummer	2483101590
RSK
d	15
R	1/2
G	1/2
bar	64
SW1/SW2/SW3	19/22/27
L1	44
L2	44.5
z1	26.5
z2	34.5
e	12

Dokument

Datablad
