SO 02721

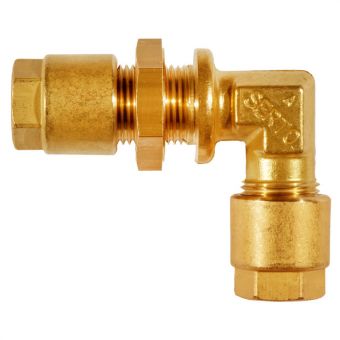

Mässings vinkelunion

  • Mässings vinkelunion väggenomföring (5mm)
Nollställ

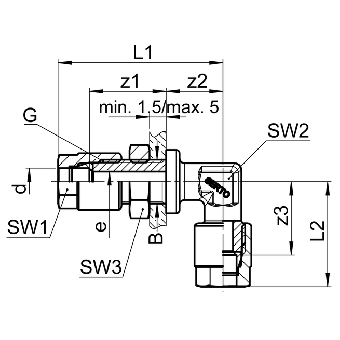

Visa alla mått +
Artikelnummer RSK dGbarSW1/SW2/SW3L1L2Bz1z2z3eFiler
2482700040 41/812512/10/144126.510.52114203.4
2482700050 51/812512/10/14422710.52114204
2482700063 6.351/812512/10/14432810.52114204
2482700095 9.523/810017/17/2453.5381723.524268
2482700127 12.71/210022/19/3061.543.521.527302911
2482700140 141/26422/19/3063.545.521.527.53029.512
2482700150 151/26422/19/3063.545.521.527.53029.512
Artikelnummer 2482700040
RSK
d 4
G 1/8
bar 125
SW1/SW2/SW3 12/10/14
L1 41
L2 26.5
B 10.5
z1 21
z2 14
z3 20
e 3.4
Artikelnummer 2482700050
RSK
d 5
G 1/8
bar 125
SW1/SW2/SW3 12/10/14
L1 42
L2 27
B 10.5
z1 21
z2 14
z3 20
e 4
Artikelnummer 2482700063
RSK
d 6.35
G 1/8
bar 125
SW1/SW2/SW3 12/10/14
L1 43
L2 28
B 10.5
z1 21
z2 14
z3 20
e 4
Artikelnummer 2482700095
RSK
d 9.52
G 3/8
bar 100
SW1/SW2/SW3 17/17/24
L1 53.5
L2 38
B 17
z1 23.5
z2 24
z3 26
e 8
Artikelnummer 2482700127
RSK
d 12.7
G 1/2
bar 100
SW1/SW2/SW3 22/19/30
L1 61.5
L2 43.5
B 21.5
z1 27
z2 30
z3 29
e 11
Artikelnummer 2482700140
RSK
d 14
G 1/2
bar 64
SW1/SW2/SW3 22/19/30
L1 63.5
L2 45.5
B 21.5
z1 27.5
z2 30
z3 29.5
e 12
Artikelnummer 2482700150
RSK
d 15
G 1/2
bar 64
SW1/SW2/SW3 22/19/30
L1 63.5
L2 45.5
B 21.5
z1 27.5
z2 30
z3 29.5
e 12
Datablad
