SO 02421 NPT

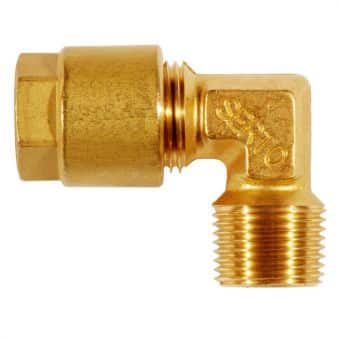

Mässings vinkelunion

  • Mässings vinkelunion utv. gänga NPT
Nollställ
Visa alla mått +

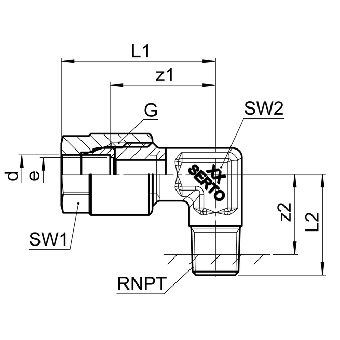

Artikelnummer RSK dGbarRSW1SW2L1L2z1z2eFiler
2482402060 41/8125NPT1/8121026.519.520133.4
2482402065 41/8125NPT1/41211302522153.4
2482402082 51/8125NPT1/812102719.520134
2482402120 61/8125NPT3/81211302522164
2482402135 6.351/8125NPT1/812102819.520134
2482402140 6.351/8125NPT1/41211302522154
2482402180 81/4125NPT3/8141131.52523166
2482402230 9.523/8125NPT1/41714352523158
2482402235 9.523/8125NPT3/81714352523168
2482402280 103/8100NPT3/81714352523168
2482402285 123/8100NPT1/219194131.529188
2482402380 121/2100NPT1/419173925.526157
2482402400 121/2100NPT1/219194231.5291812
2482402432 12.71/2100NPT3/822173925261610
2482402434 12.71/2100NPT1/222194231.5291811
2482402502 141/264NPT3/8221742.52526.51610
2482402504 141/264NPT1/2221945.531.529.51812
2482402532 151/264NPT3/8221742.52526.51610
2482402534 151/264NPT1/2221945.531.529.51812
Artikelnummer 2482402060
RSK
d 4
G 1/8
bar 125
R NPT1/8
SW1 12
SW2 10
L1 26.5
L2 19.5
z1 20
z2 13
e 3.4
Artikelnummer 2482402065
RSK
d 4
G 1/8
bar 125
R NPT1/4
SW1 12
SW2 11
L1 30
L2 25
z1 22
z2 15
e 3.4
Artikelnummer 2482402082
RSK
d 5
G 1/8
bar 125
R NPT1/8
SW1 12
SW2 10
L1 27
L2 19.5
z1 20
z2 13
e 4
Artikelnummer 2482402120
RSK
d 6
G 1/8
bar 125
R NPT3/8
SW1 12
SW2 11
L1 30
L2 25
z1 22
z2 16
e 4
Artikelnummer 2482402135
RSK
d 6.35
G 1/8
bar 125
R NPT1/8
SW1 12
SW2 10
L1 28
L2 19.5
z1 20
z2 13
e 4
Artikelnummer 2482402140
RSK
d 6.35
G 1/8
bar 125
R NPT1/4
SW1 12
SW2 11
L1 30
L2 25
z1 22
z2 15
e 4
Artikelnummer 2482402180
RSK
d 8
G 1/4
bar 125
R NPT3/8
SW1 14
SW2 11
L1 31.5
L2 25
z1 23
z2 16
e 6
Artikelnummer 2482402230
RSK
d 9.52
G 3/8
bar 125
R NPT1/4
SW1 17
SW2 14
L1 35
L2 25
z1 23
z2 15
e 8
Artikelnummer 2482402235
RSK
d 9.52
G 3/8
bar 125
R NPT3/8
SW1 17
SW2 14
L1 35
L2 25
z1 23
z2 16
e 8
Artikelnummer 2482402280
RSK
d 10
G 3/8
bar 100
R NPT3/8
SW1 17
SW2 14
L1 35
L2 25
z1 23
z2 16
e 8
Artikelnummer 2482402285
RSK
d 12
G 3/8
bar 100
R NPT1/2
SW1 19
SW2 19
L1 41
L2 31.5
z1 29
z2 18
e 8
Artikelnummer 2482402380
RSK
d 12
G 1/2
bar 100
R NPT1/4
SW1 19
SW2 17
L1 39
L2 25.5
z1 26
z2 15
e 7
Artikelnummer 2482402400
RSK
d 12
G 1/2
bar 100
R NPT1/2
SW1 19
SW2 19
L1 42
L2 31.5
z1 29
z2 18
e 12
Artikelnummer 2482402432
RSK
d 12.7
G 1/2
bar 100
R NPT3/8
SW1 22
SW2 17
L1 39
L2 25
z1 26
z2 16
e 10
Artikelnummer 2482402434
RSK
d 12.7
G 1/2
bar 100
R NPT1/2
SW1 22
SW2 19
L1 42
L2 31.5
z1 29
z2 18
e 11
Artikelnummer 2482402502
RSK
d 14
G 1/2
bar 64
R NPT3/8
SW1 22
SW2 17
L1 42.5
L2 25
z1 26.5
z2 16
e 10
Artikelnummer 2482402504
RSK
d 14
G 1/2
bar 64
R NPT1/2
SW1 22
SW2 19
L1 45.5
L2 31.5
z1 29.5
z2 18
e 12
Artikelnummer 2482402532
RSK
d 15
G 1/2
bar 64
R NPT3/8
SW1 22
SW2 17
L1 42.5
L2 25
z1 26.5
z2 16
e 10
Artikelnummer 2482402534
RSK
d 15
G 1/2
bar 64
R NPT1/2
SW1 22
SW2 19
L1 45.5
L2 31.5
z1 29.5
z2 18
e 12
Datablad
