SO 02321

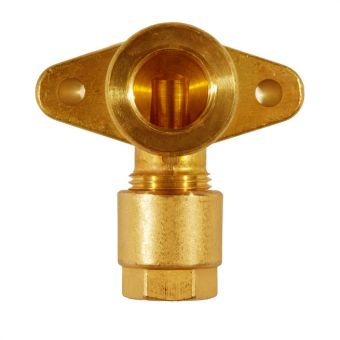

Mässings vinkelunion

  • Mässings vinkelunion inv. gänga väggfäste
Nollställ

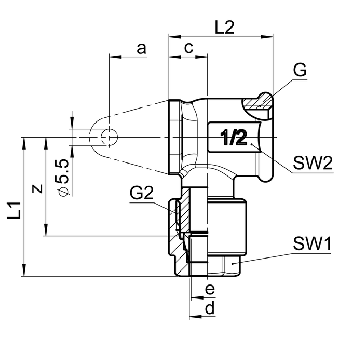

Visa alla mått +
Artikelnummer RSK dGxG2barSW1SW2L1L2aczeFiler
2482301235 9.523/8x3/8100172239274011278
2482301240 9.521/2x3/8100172245354013338
2482301280 103/8x3/8100172239274011278
2482301390 123/8x1/2100192244.52940133110
2482301405 123/4x1/2100193251.541.54617.53811
2482301432 12.73/8x1/2100221945.52940133110
2482301434 12.71/2x1/2100221945.52540133311
2482301436 12.73/4x1/2100223252.541.54617.53811
2482301502 143/8x1/264222247.529401331.510
2482301504 141/2x1/264222749.535401333.512
2482301506 143/4x1/264223254.541.54617.538.512
2482301532 153/8x1/264222247.529401331.510
2482301534 151/2x1/264222749.525401333.512
2482301536 153/4x1/264223254.541.54617.538.512
Artikelnummer 2482301235
RSK
d 9.52
GxG2 3/8x3/8
bar 100
SW1 17
SW2 22
L1 39
L2 27
a 40
c 11
z 27
e 8
Artikelnummer 2482301240
RSK
d 9.52
GxG2 1/2x3/8
bar 100
SW1 17
SW2 22
L1 45
L2 35
a 40
c 13
z 33
e 8
Artikelnummer 2482301280
RSK
d 10
GxG2 3/8x3/8
bar 100
SW1 17
SW2 22
L1 39
L2 27
a 40
c 11
z 27
e 8
Artikelnummer 2482301390
RSK
d 12
GxG2 3/8x1/2
bar 100
SW1 19
SW2 22
L1 44.5
L2 29
a 40
c 13
z 31
e 10
Artikelnummer 2482301405
RSK
d 12
GxG2 3/4x1/2
bar 100
SW1 19
SW2 32
L1 51.5
L2 41.5
a 46
c 17.5
z 38
e 11
Artikelnummer 2482301432
RSK
d 12.7
GxG2 3/8x1/2
bar 100
SW1 22
SW2 19
L1 45.5
L2 29
a 40
c 13
z 31
e 10
Artikelnummer 2482301434
RSK
d 12.7
GxG2 1/2x1/2
bar 100
SW1 22
SW2 19
L1 45.5
L2 25
a 40
c 13
z 33
e 11
Artikelnummer 2482301436
RSK
d 12.7
GxG2 3/4x1/2
bar 100
SW1 22
SW2 32
L1 52.5
L2 41.5
a 46
c 17.5
z 38
e 11
Artikelnummer 2482301502
RSK
d 14
GxG2 3/8x1/2
bar 64
SW1 22
SW2 22
L1 47.5
L2 29
a 40
c 13
z 31.5
e 10
Artikelnummer 2482301504
RSK
d 14
GxG2 1/2x1/2
bar 64
SW1 22
SW2 27
L1 49.5
L2 35
a 40
c 13
z 33.5
e 12
Artikelnummer 2482301506
RSK
d 14
GxG2 3/4x1/2
bar 64
SW1 22
SW2 32
L1 54.5
L2 41.5
a 46
c 17.5
z 38.5
e 12
Artikelnummer 2482301532
RSK
d 15
GxG2 3/8x1/2
bar 64
SW1 22
SW2 22
L1 47.5
L2 29
a 40
c 13
z 31.5
e 10
Artikelnummer 2482301534
RSK
d 15
GxG2 1/2x1/2
bar 64
SW1 22
SW2 27
L1 49.5
L2 25
a 40
c 13
z 33.5
e 12
Artikelnummer 2482301536
RSK
d 15
GxG2 3/4x1/2
bar 64
SW1 22
SW2 32
L1 54.5
L2 41.5
a 46
c 17.5
z 38.5
e 12
Datablad
