SO 02221

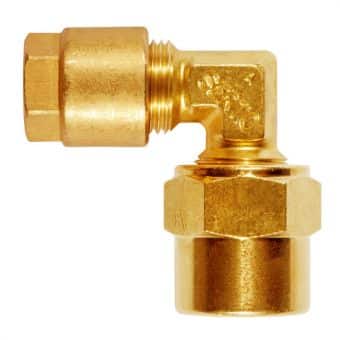

Mässings vinkelunion

  • Mässings vinkelunion inv. gänga
Nollställ

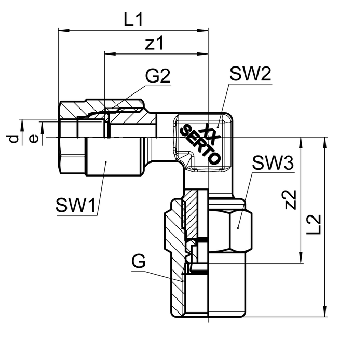

Visa alla mått +
Artikelnummer RSK dGxG2barSW1/SW2/SW3L1L2z1z2eFiler
2482201100 61/8x1/812512/10/142833.52023.54
2482201110 61/4x1/812512/10/19283520244
2482201120 63/8x1/812512/10/222836.52024.54
2482201160 81/8x1/412514/11/1731.535.52225.56
2482201170 81/4x1/412514/11/1931.53722266
2482201180 83/8x1/412514/11/2231.538.52226.56
2482201270 101/4x3/810017/14/22353823278
2482201280 103/8x3/810017/14/243539.52327.58
2482201285 101/2x3/810017/14/30354223288
2482201380 121/4x1/210019/17/2739.54126268.5
2482201390 123/8x1/210019/17/2739.542.52630.510
2482201534 151/2x1/26422/19/3045.54829.53412
2482201536 153/4x1/26422/19/3245.551.529.534.512
Artikelnummer 2482201100
RSK
d 6
GxG2 1/8x1/8
bar 125
SW1/SW2/SW3 12/10/14
L1 28
L2 33.5
z1 20
z2 23.5
e 4
Artikelnummer 2482201110
RSK
d 6
GxG2 1/4x1/8
bar 125
SW1/SW2/SW3 12/10/19
L1 28
L2 35
z1 20
z2 24
e 4
Artikelnummer 2482201120
RSK
d 6
GxG2 3/8x1/8
bar 125
SW1/SW2/SW3 12/10/22
L1 28
L2 36.5
z1 20
z2 24.5
e 4
Artikelnummer 2482201160
RSK
d 8
GxG2 1/8x1/4
bar 125
SW1/SW2/SW3 14/11/17
L1 31.5
L2 35.5
z1 22
z2 25.5
e 6
Artikelnummer 2482201170
RSK
d 8
GxG2 1/4x1/4
bar 125
SW1/SW2/SW3 14/11/19
L1 31.5
L2 37
z1 22
z2 26
e 6
Artikelnummer 2482201180
RSK
d 8
GxG2 3/8x1/4
bar 125
SW1/SW2/SW3 14/11/22
L1 31.5
L2 38.5
z1 22
z2 26.5
e 6
Artikelnummer 2482201270
RSK
d 10
GxG2 1/4x3/8
bar 100
SW1/SW2/SW3 17/14/22
L1 35
L2 38
z1 23
z2 27
e 8
Artikelnummer 2482201280
RSK
d 10
GxG2 3/8x3/8
bar 100
SW1/SW2/SW3 17/14/24
L1 35
L2 39.5
z1 23
z2 27.5
e 8
Artikelnummer 2482201285
RSK
d 10
GxG2 1/2x3/8
bar 100
SW1/SW2/SW3 17/14/30
L1 35
L2 42
z1 23
z2 28
e 8
Artikelnummer 2482201380
RSK
d 12
GxG2 1/4x1/2
bar 100
SW1/SW2/SW3 19/17/27
L1 39.5
L2 41
z1 26
z2 26
e 8.5
Artikelnummer 2482201390
RSK
d 12
GxG2 3/8x1/2
bar 100
SW1/SW2/SW3 19/17/27
L1 39.5
L2 42.5
z1 26
z2 30.5
e 10
Artikelnummer 2482201534
RSK
d 15
GxG2 1/2x1/2
bar 64
SW1/SW2/SW3 22/19/30
L1 45.5
L2 48
z1 29.5
z2 34
e 12
Artikelnummer 2482201536
RSK
d 15
GxG2 3/4x1/2
bar 64
SW1/SW2/SW3 22/19/32
L1 45.5
L2 51.5
z1 29.5
z2 34.5
e 12
Datablad
