SO 02121 METR

Mässings vinkelunion

  • Mässings vinkelunion utv. gänga
Nollställ

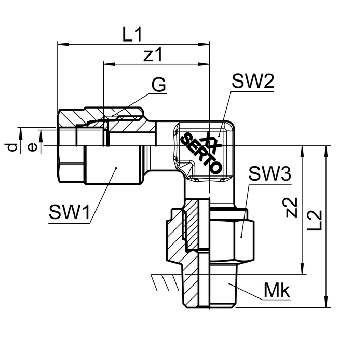

Visa alla mått +
Artikelnummer RSK dGMbarSW1/SW2/SW3L1L2z1z2eFiler
2482103180 61/8M10x112512/10/142829.52024.55
2482103240 81/4M12x1.512514/11/1731.53722296
2482103280 103/8M14x1.510017/14/223539.52331.58
2482103330 121/2M16x1.510019/17/2739.542.52634.510
Artikelnummer 2482103180
RSK
d 6
G 1/8
M M10x1
bar 125
SW1/SW2/SW3 12/10/14
L1 28
L2 29.5
z1 20
z2 24.5
e 5
Artikelnummer 2482103240
RSK
d 8
G 1/4
M M12x1.5
bar 125
SW1/SW2/SW3 14/11/17
L1 31.5
L2 37
z1 22
z2 29
e 6
Artikelnummer 2482103280
RSK
d 10
G 3/8
M M14x1.5
bar 100
SW1/SW2/SW3 17/14/22
L1 35
L2 39.5
z1 23
z2 31.5
e 8
Artikelnummer 2482103330
RSK
d 12
G 1/2
M M16x1.5
bar 100
SW1/SW2/SW3 19/17/27
L1 39.5
L2 42.5
z1 26
z2 34.5
e 10
Datablad
