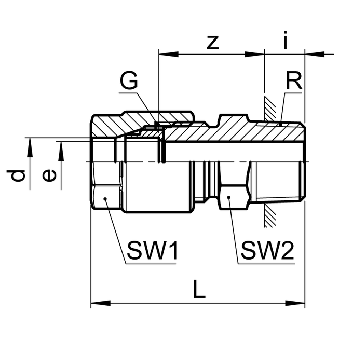

| Artikelnummer | RSK | G | d | R | bar | SW1 | SW2 | L | i | z | e | Filer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2481101065 | 1/8 | 4 | 1/4 | 125 | 12 | 14 | 36 | 8 | 21 | 4 | ||
| 2481101082 | 1/8 | 5 | 1/8 | 125 | 12 | 10 | 30 | 5 | 18 | 4 | ||
| 2481101084 | 1/8 | 5 | 1/4 | 125 | 12 | 14 | 36 | 8 | 21 | 4 | ||
| 2481101135 | 1/8 | 6.35 | 1/8 | 125 | 12 | 12 | 33 | 5 | 18.5 | 4 | ||
| 2481101140 | 1/8 | 6.35 | 1/4 | 125 | 12 | 14 | 38 | 8 | 21.5 | 4 | ||
| 2481101145 | 1/8 | 6.35 | 3/8 | 125 | 12 | 17 | 38 | 8 | 21.5 | 4 | ||
| 2481101230 | 3/8 | 9.52 | 1/4 | 100 | 17 | 17 | 44 | 8 | 22.5 | 8.4 | ||
| 2481101235 | 3/8 | 9.52 | 3/8 | 100 | 17 | 17 | 44 | 8 | 22.5 | 8.4 | ||
| 2481101240 | 3/8 | 9.52 | 1/2 | 100 | 17 | 22 | 47 | 10 | 25.5 | 8.4 | ||
| 2481101430 | 1/2 | 12.7 | 1/4 | 100 | 19 | 22 | 50 | 8 | 26.5 | 8 | ||
| 2481101432 | 1/2 | 12.7 | 3/8 | 100 | 19 | 22 | 50 | 8 | 26.5 | 10 | ||
| 2481101434 | 1/2 | 12.7 | 1/2 | 100 | 19 | 22 | 52 | 10 | 28.5 | 12 | ||
| 2481101436 | 1/2 | 12.7 | 3/4 | 100 | 19 | 27 | 55 | 12 | 30.5 | 12 | ||
| 2481101506 | 1/2 | 14 | 3/4 | 64 | 22 | 27 | 56.5 | 12 | 30.5 | 12 |
