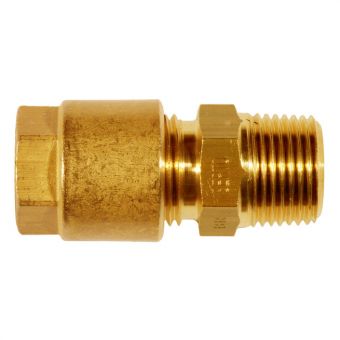

Name: SO01121 NPT
SKU: 70193

Visa alla mått +

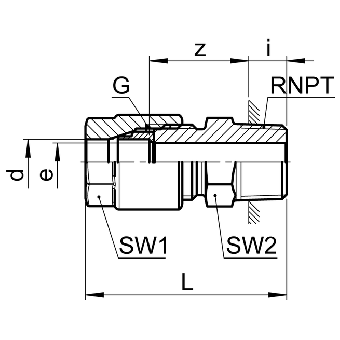

Artikelnummer	d	G	R	bar	SW1	SW2	L	i	z	e
2481102065	4	1/8	NPT1/4	125	12	14	38		21	4
2481102082	5	1/8	NPT1/8	125	12	12	33	7	19	4
2481102084	5	1/8	NPT1/4	125	12	14	38	10	21	4
2481102120	6	1/8	NPT3/8	125	12	17	39	10	21.5	4
2481102125	6	3/8	NPT1/2	125	17	22	50.5	14	25.5	5
2481102135	6.35	1/8	NPT1/8	125	12	12	34.5	7	19.5	4
2481102140	6.35	1/8	NPT1/4	125	12	14	39.5	10	21.5	4
2481102180	8	1/4	NPT3/8	125	14	17	41.5	10	22	6.4
2481102230	9.52	3/8	NPT1/4	100	17	17	44.5	10	22.5	8
2481102235	9.52	3/8	NPT3/8	100	17	17	44.5	10	22.5	8.4
2481102240	9.52	3/8	NPT1/2	100	17	22	50.5	14	24.5	8.4
2481102285	10	3/8	NPT3/8	100	17	17	44.5	14	24.5	8.4
2481102400	12	1/2	NPT1/2	100	19	22	54.5	14	27.5	12
2481102432	12.7	1/2	NPT3/8	100	22	22	50.5	10	26.5	10
2481102434	12.7	1/2	NPT1/2	100	22	22	55.5	14	27.5	12
2481102502	14	1/2	NPT3/8	64	22	22	49.5	10	26.5	10
2481102504	14	1/2	NPT1/2	64	22	22	54.5	14	27.5	12
2481102532	15	1/2	NPT3/8	64	22	22	49.5	10	26.5	10
2481102534	15	1/2	NPT1/2	64	22	22	54.5	14	27.5	12
