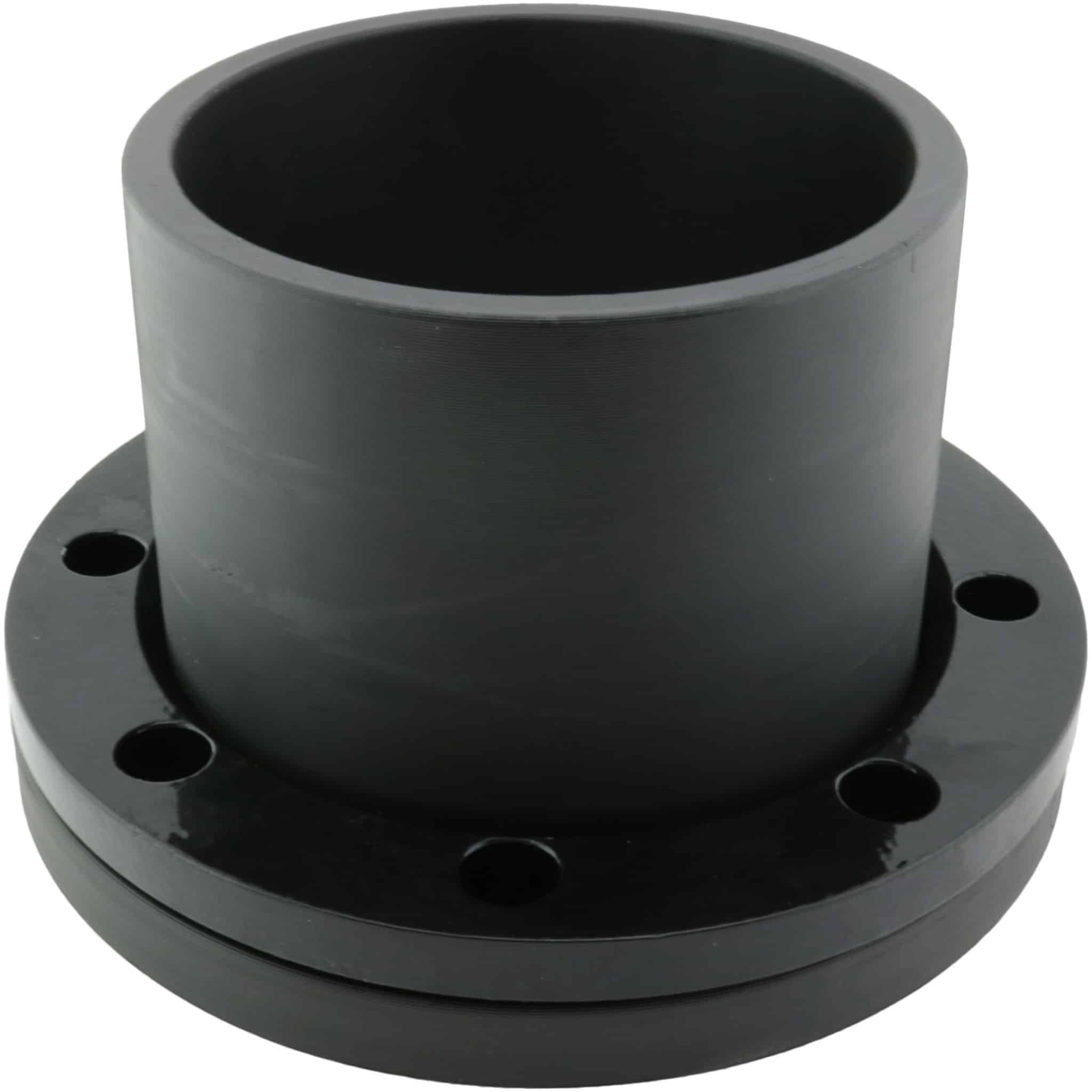

Reducerfläns SDR11 borrad PN10

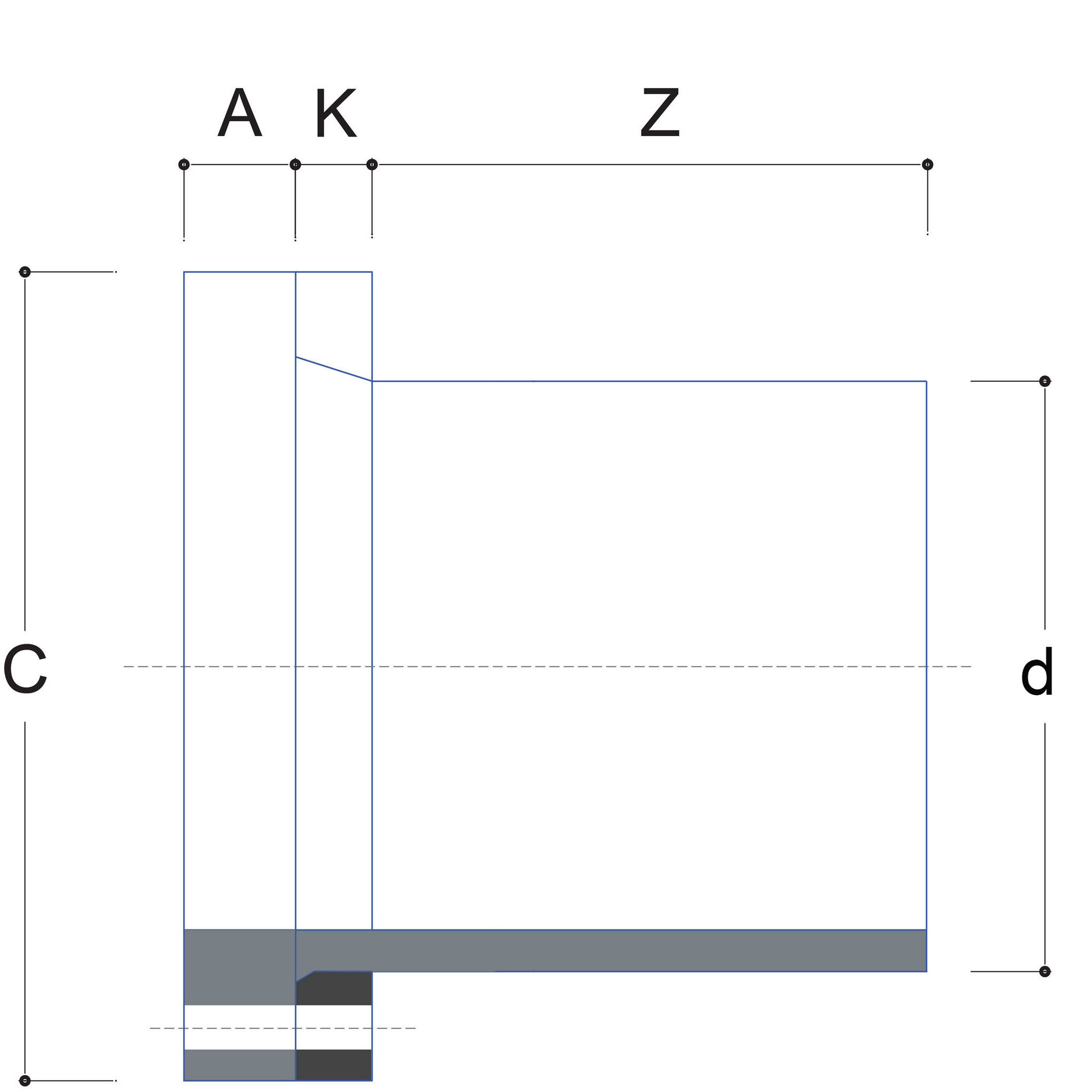

| Artikelnummer | RSK | d | DN | Z | A | C | K | Filer |
|---|---|---|---|---|---|---|---|---|
| SFEOPL11-10-200/150 | 200 | 150 | 130 | 24 | 285 | 17 | ||
| SFEOPL11-10-250/200 | 250 | 200 | 123 | 25 | 340 | 17 | ||
| SFEOPL11-10-315/250 | 315 | 250 | 143 | 25 | 395 | 18 | ||
| SFEOPL11-10-355/300 | 355 | 300 | 164 | 30 | 445 | 20 | ||
| SFEOPL11-10-400/350 | 400 | 350 | 174 | 33 | 505 | 22 | ||
| SFEOPL11-10-450/400 | 450 | 400 | 220 | 46 | 565 | 22 | ||
| SFEOPL11-10-560/500 | 560 | 500 | 260 | 50 | 670 | 24 | ||
| SFEOPL11-10-630/500 | 630 | 500 | 270 |
| Artikelnummer | SFEOPL11-10-200/150 |
| RSK | |
| d | 200 |
| DN | 150 |
| Z | 130 |
| A | 24 |
| C | 285 |
| K | 17 |
| Artikelnummer | SFEOPL11-10-250/200 |
| RSK | |
| d | 250 |
| DN | 200 |
| Z | 123 |
| A | 25 |
| C | 340 |
| K | 17 |
| Artikelnummer | SFEOPL11-10-315/250 |
| RSK | |
| d | 315 |
| DN | 250 |
| Z | 143 |
| A | 25 |
| C | 395 |
| K | 18 |
| Artikelnummer | SFEOPL11-10-355/300 |
| RSK | |
| d | 355 |
| DN | 300 |
| Z | 164 |
| A | 30 |
| C | 445 |
| K | 20 |
| Artikelnummer | SFEOPL11-10-400/350 |
| RSK | |
| d | 400 |
| DN | 350 |
| Z | 174 |
| A | 33 |
| C | 505 |
| K | 22 |
| Artikelnummer | SFEOPL11-10-450/400 |
| RSK | |
| d | 450 |
| DN | 400 |
| Z | 220 |
| A | 46 |
| C | 565 |
| K | 22 |
| Artikelnummer | SFEOPL11-10-560/500 |
| RSK | |
| d | 560 |
| DN | 500 |
| Z | 260 |
| A | 50 |
| C | 670 |
| K | 24 |
| Artikelnummer | SFEOPL11-10-630/500 |
| RSK | |
| d | 630 |
| DN | 500 |
| Z | 270 |
