Hem / Produkter / Rörsystem / Rördelar PE / S-JEL11

S-JEL11

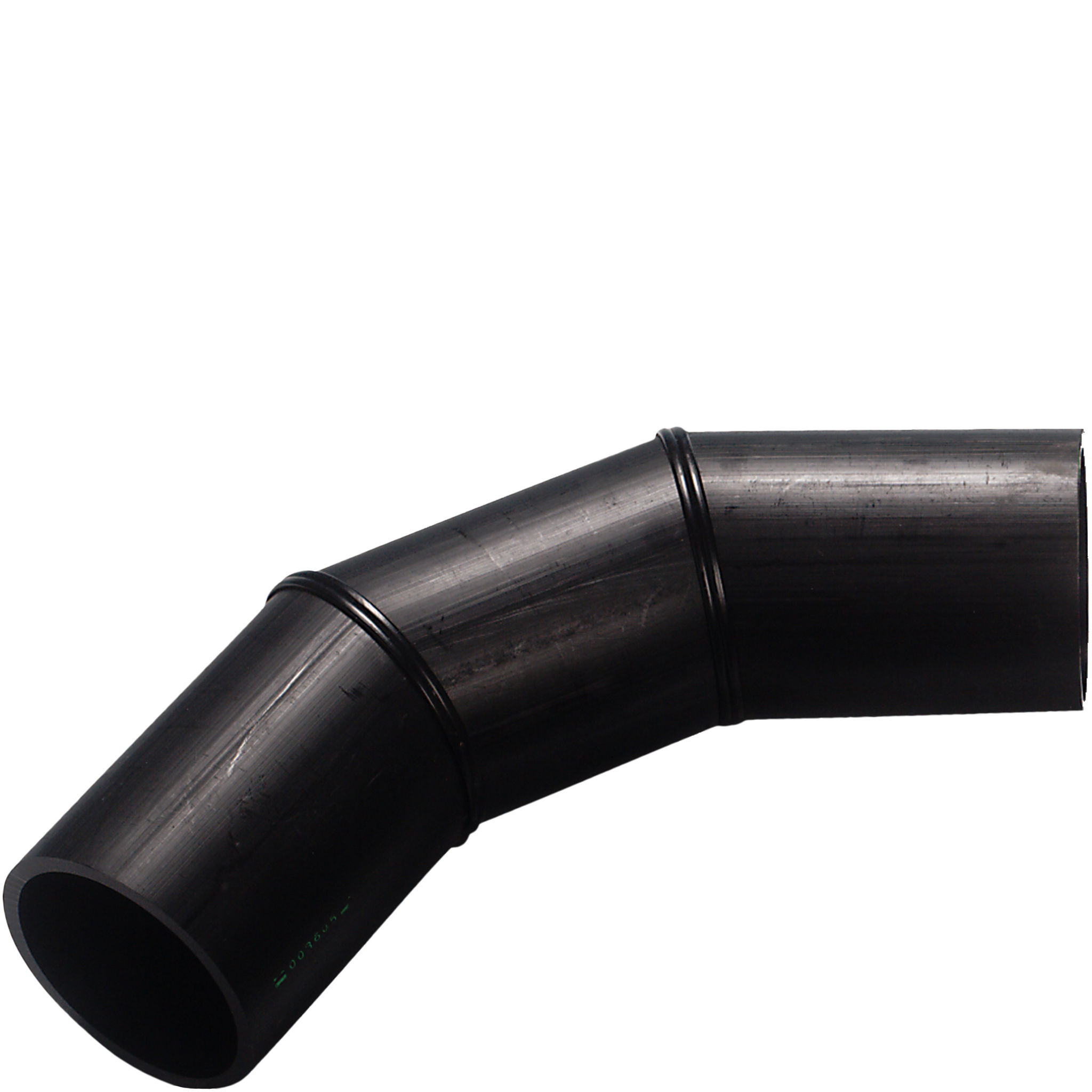

Böj 60° SDR11

PE-böj 60°
Långa ändar
Segmentsvetsad
SDR11 Vatten PN12,8 Gas PN8

Modeller

Visa alla mått +

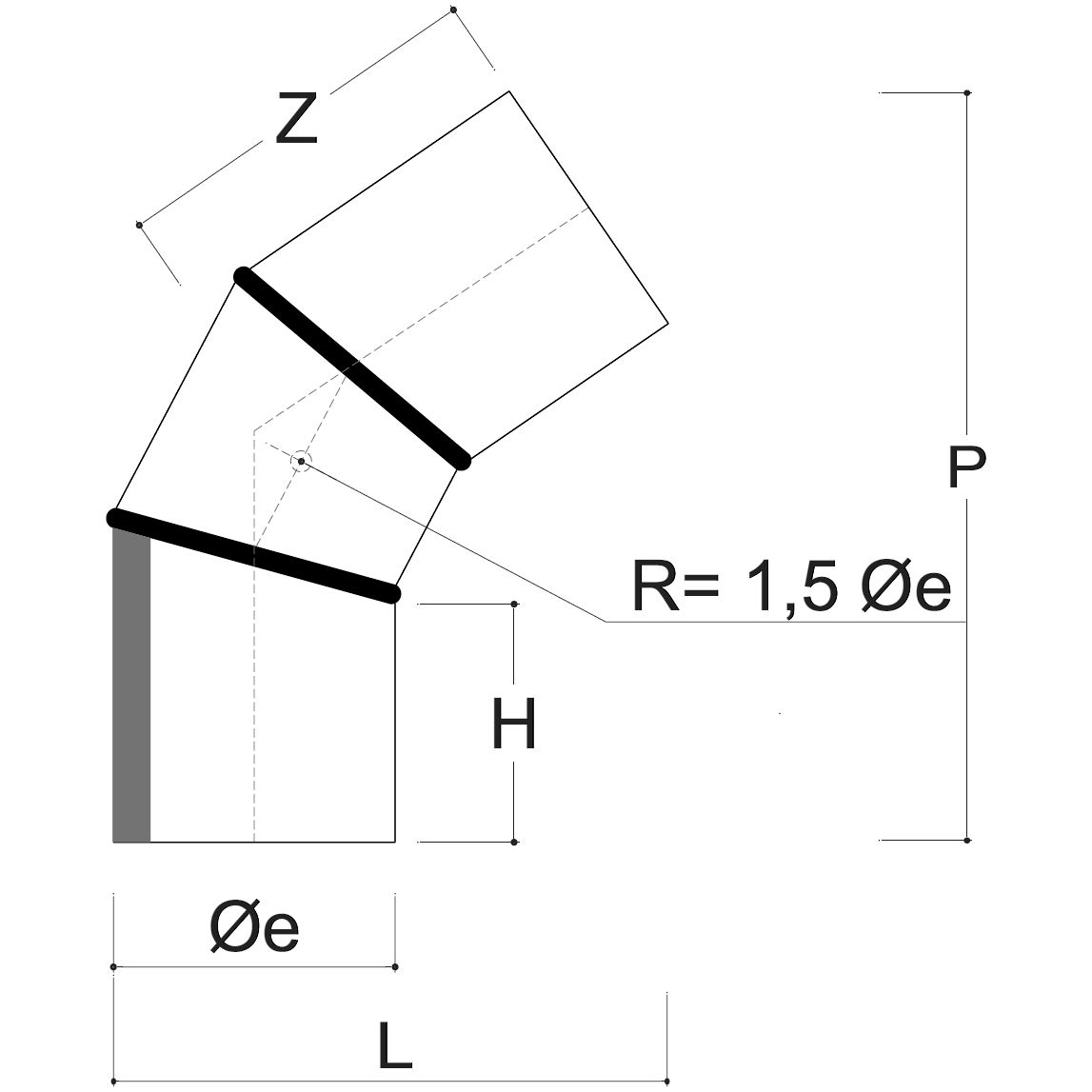

Artikelnummer	RSK	d	SDR	P	H	Z	L	Filer
S-JEL11-110	2433722	110	SDR11	289	100	146	198
S-JEL11-125	2433723	125	SDR11	391	150	203	251
S-JEL11-140	2433724	140	SDR11	407	150	209	268
S-JEL11-160	2433725	160	SDR11	428	150	217	291
S-JEL11-180	2433726	180	SDR11	535	200	276	349
S-JEL11-200	2433727	200	SDR11	556	200	284	372
S-JEL11-225	2433728	225	SDR11	584	200	295	401
S-JEL11-250	2433729	250	SDR11	610	200	305	430
S-JEL11-280	2433730	280	SDR11	634	200	313	461
S-JEL11-315	2433731	315	SDR11	853	300	434	576
S-JEL11-355	2433732	355	SDR11	893	300	449	621
S-JEL11-400	2433733	400	SDR11	944	300	470	674
S-JEL11-450	2433734	450	SDR11	996	300	490	731
S-JEL11-500	2433735	500	SDR11	1048	300	510	788
S-JEL11-560	2433736	560	SDR11	1197	350	585	892
S-JEL11-630	2433737	630	SDR11	1273	350	615	973

Specifikationer


Artikelnummer	S-JEL11-110
RSK	2433722
d	110
SDR	SDR11
P	289
H	100
Z	146
L	198


Artikelnummer	S-JEL11-125
RSK	2433723
d	125
SDR	SDR11
P	391
H	150
Z	203
L	251


Artikelnummer	S-JEL11-140
RSK	2433724
d	140
SDR	SDR11
P	407
H	150
Z	209
L	268


Artikelnummer	S-JEL11-160
RSK	2433725
d	160
SDR	SDR11
P	428
H	150
Z	217
L	291


Artikelnummer	S-JEL11-180
RSK	2433726
d	180
SDR	SDR11
P	535
H	200
Z	276
L	349


Artikelnummer	S-JEL11-200
RSK	2433727
d	200
SDR	SDR11
P	556
H	200
Z	284
L	372


Artikelnummer	S-JEL11-225
RSK	2433728
d	225
SDR	SDR11
P	584
H	200
Z	295
L	401


Artikelnummer	S-JEL11-250
RSK	2433729
d	250
SDR	SDR11
P	610
H	200
Z	305
L	430


Artikelnummer	S-JEL11-280
RSK	2433730
d	280
SDR	SDR11
P	634
H	200
Z	313
L	461


Artikelnummer	S-JEL11-315
RSK	2433731
d	315
SDR	SDR11
P	853
H	300
Z	434
L	576


Artikelnummer	S-JEL11-355
RSK	2433732
d	355
SDR	SDR11
P	893
H	300
Z	449
L	621


Artikelnummer	S-JEL11-400
RSK	2433733
d	400
SDR	SDR11
P	944
H	300
Z	470
L	674


Artikelnummer	S-JEL11-450
RSK	2433734
d	450
SDR	SDR11
P	996
H	300
Z	490
L	731


Artikelnummer	S-JEL11-500
RSK	2433735
d	500
SDR	SDR11
P	1048
H	300
Z	510
L	788


Artikelnummer	S-JEL11-560
RSK	2433736
d	560
SDR	SDR11
P	1197
H	350
Z	585
L	892


Artikelnummer	S-JEL11-630
RSK	2433737
d	630
SDR	SDR11
P	1273
H	350
Z	615
L	973

Dokument

Datablad

Teknisk information

Teknisk information
