RE61U

Nippel utv./inv.gänga

  • PVC-nippel, reducerad
  • Utvändig gänga / Invändig gänga
  • PN 16
Nollställ

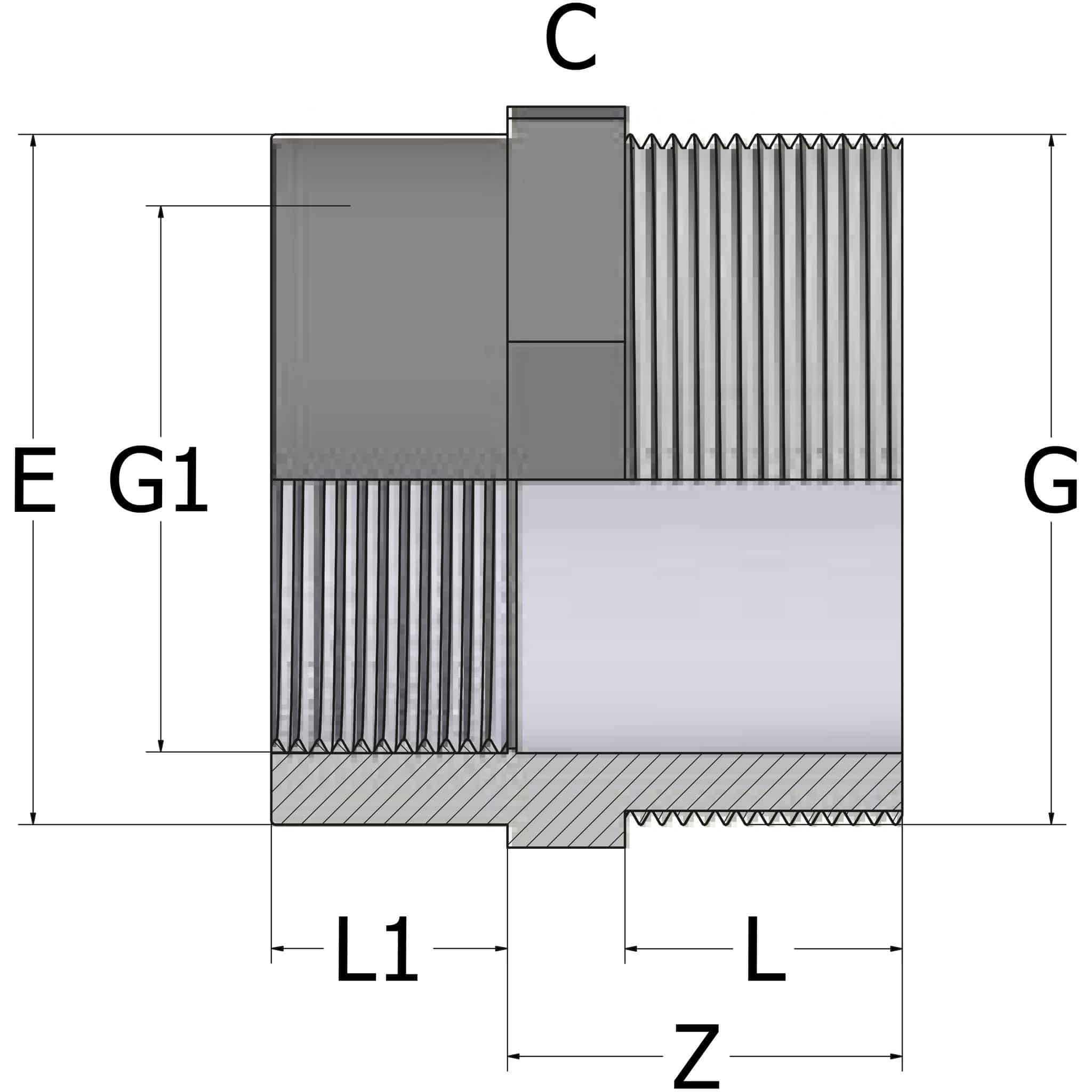

Visa alla mått +
Artikelnummer RSK G×G1HL1ZECFiler
RE61U-R010-R008-V
RE61U-R015-R010 2268324 1/2"x3/8"11.42423 CAD/Step
RE61U-R020-R010 2268340 3/4"x3/8"11.42523 CAD/Step
RE61U-R020-R015 2268357 3/4"x1/2"152628 CAD/Step
RE61U-R025-R010 2268373 1"x3/8"11.42823 CAD/Step
RE61U-R025-R015 2268381 1"x1/2"152928 CAD/Step
RE61U-R025-R020 2268399 1"x3/4"16.33024 CAD/Step
RE61U-R032-R015 2268415 1"1/4x1/2"153328 CAD/Step
RE61U-R032-R020 2268423 1"1/4x3/4"16.33434 CAD/Step
RE61U-R032-R025 2268431 1"1/4x1"19.13342 CAD/Step
RE61U-R040-R020 2268464 1"1/2x3/4"16.33434 CAD/Step
RE61U-R040-R025 2268472 1"1/2x1"19.13442 CAD/Step
RE61U-R040-R032 2268480 1"1/2x1"1/421.43451 CAD/Step
RE61U-R050-R025 2268514 2"x1"19.13742 CAD/Step
RE61U-R050-R032 2268522 2"x1"1/421.43751 CAD/Step
RE61U-R050-R040 2268530 2"x1"1/221.43758 CAD/Step
RE61U-R065-R050 2"1/2x2"25.74372 CAD/Step
RE61U-R080-R050 2268563 3"x2"25.74772 CAD/Step
RE61U-R080-R065 3"x2"1/230.24789 CAD/Step
RE61U-R100-R080 4"x3"33.353103 CAD/Step
Artikelnummer RE61U-R015-R010
RSK 2268324
G×G1 1/2"x3/8"
L1 11.4
Z 24
E 23
Artikelnummer RE61U-R020-R010
RSK 2268340
G×G1 3/4"x3/8"
L1 11.4
Z 25
E 23
Artikelnummer RE61U-R020-R015
RSK 2268357
G×G1 3/4"x1/2"
L1 15
Z 26
E 28
Artikelnummer RE61U-R025-R010
RSK 2268373
G×G1 1"x3/8"
L1 11.4
Z 28
E 23
Artikelnummer RE61U-R025-R015
RSK 2268381
G×G1 1"x1/2"
L1 15
Z 29
E 28
Artikelnummer RE61U-R025-R020
RSK 2268399
G×G1 1"x3/4"
L1 16.3
Z 30
E 24
Artikelnummer RE61U-R032-R015
RSK 2268415
G×G1 1"1/4x1/2"
L1 15
Z 33
E 28
Artikelnummer RE61U-R032-R020
RSK 2268423
G×G1 1"1/4x3/4"
L1 16.3
Z 34
E 34
Artikelnummer RE61U-R032-R025
RSK 2268431
G×G1 1"1/4x1"
L1 19.1
Z 33
E 42
Artikelnummer RE61U-R040-R020
RSK 2268464
G×G1 1"1/2x3/4"
L1 16.3
Z 34
E 34
Artikelnummer RE61U-R040-R025
RSK 2268472
G×G1 1"1/2x1"
L1 19.1
Z 34
E 42
Artikelnummer RE61U-R040-R032
RSK 2268480
G×G1 1"1/2x1"1/4
L1 21.4
Z 34
E 51
Artikelnummer RE61U-R050-R025
RSK 2268514
G×G1 2"x1"
L1 19.1
Z 37
E 42
Artikelnummer RE61U-R050-R032
RSK 2268522
G×G1 2"x1"1/4
L1 21.4
Z 37
E 51
Artikelnummer RE61U-R050-R040
RSK 2268530
G×G1 2"x1"1/2
L1 21.4
Z 37
E 58
Artikelnummer RE61U-R065-R050
RSK
G×G1 2"1/2x2"
L1 25.7
Z 43
E 72
Artikelnummer RE61U-R080-R050
RSK 2268563
G×G1 3"x2"
L1 25.7
Z 47
E 72
Artikelnummer RE61U-R080-R065
RSK
G×G1 3"x2"1/2
L1 30.2
Z 47
E 89
Artikelnummer RE61U-R100-R080
RSK
G×G1 4"x3"
L1 33.3
Z 53
E 103
Datablad
Produktblad
Teknisk information
Teknisk information
