| HAU-6201 |
|

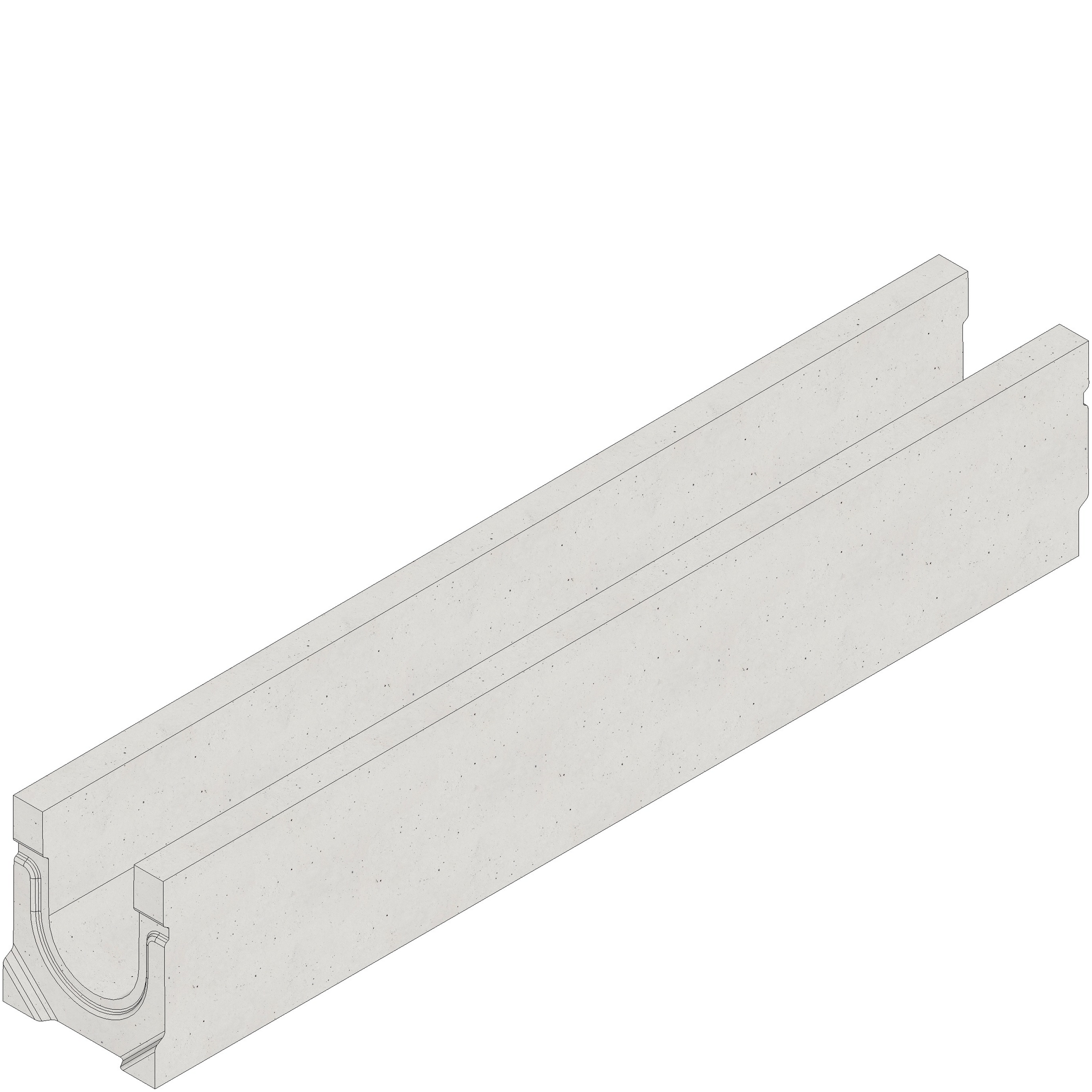

Ränna FASERFIX STANDARD E 100 Typ 1 | 140-146 | 1000 | 162 | 89 | 32 |
CAD/Dwg2D
|
| HAU-6202 |
|
Ränna FASERFIX STANDARD E 100 Typ 2 | 146-152 | 1000 | 162 | 95 | 32 |
CAD/Dwg2D
|
| HAU-6203 |
|
Ränna FASERFIX STANDARD E 100 Typ 3 | 152-158 | 1000 | 162 | 101 | 33 |
CAD/Dwg2D
|
| HAU-6204 |
|
Ränna FASERFIX STANDARD E 100 Typ 4 | 158-164 | 1000 | 162 | 107 | 35 |
CAD/Dwg2D
|
| HAU-6205 |
|
Ränna FASERFIX STANDARD E 100 Typ 5 | 164-170 | 1000 | 162 | 113 | 35 |
CAD/Dwg2D
|
| HAU-6206 |
|
Ränna FASERFIX STANDARD E 100 Typ 6 | 170-176 | 1000 | 162 | 119 | 35 |
CAD/Dwg2D
|
| HAU-6207 |
|
Ränna FASERFIX STANDARD E 100 Typ 7 | 176-182 | 1000 | 162 | 125 | 36 |
CAD/Dwg2D
|
| HAU-6208 |
|
Ränna FASERFIX STANDARD E 100 Typ 8 | 182-188 | 1000 | 162 | 131 | 38 |
CAD/Dwg2D
|
| HAU-6209 |
|
Ränna FASERFIX STANDARD E 100 Typ 9 | 188-194 | 1000 | 162 | 137 | 38 |
CAD/Dwg2D
|
| HAU-6210 |
|
Ränna FASERFIX STANDARD E 100 Typ 10 | 194-200 | 1000 | 162 | 143 | 38 |
|
