Name: MEL17
SKU: 775

Visa alla mått +

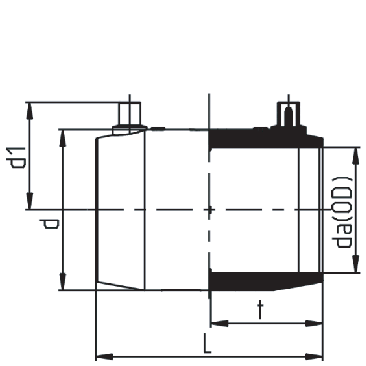

Artikelnummer	RSK	da(OD)	L	d	d1	t	SDR	Filer
MEL17-RC-090	2432479	90	138.5	109	74	67.5	26-17	CAD/Step
MEL17-RC-110	2432481	110	150.5	133	82	73.5	26-17	CAD/Step
MEL17-RC-125		125	169.5	155	91	83.5	26-17
MEL17-RC-160	2432483	160	179.5	188	107.5	88	26-17	CAD/Step
MEL17-RC-180		180	201	212	117,5	98,5	26-17
MEL17-RC-200	2432484	200	215.5	234	127	105	26-17	CAD/Step
MEL17-RC-225	2432485	225	230	263	144	112	26-17	CAD/Step
MEL17-RC-250	2432486	250	240	293	152.5	118.5	26-17	CAD/Step
MEL17-RC-280	2432487	280	250	326	169	123.5	26-17	CAD/Step
MEL17-RC-315	2432488	315	259	366	185.5	128.5	33-17	CAD/Step
MEL17-RC-355	2432489	355	280	413	205.5	138.5	33-17	CAD/Step
MEL17-RC-400	2432490	400	301	466	235.5	148.5	33-17	CAD/Step
MEL17-RC-450	2432491	450	338	522	260	166.5	33-17	CAD/Step
MEL17-RC-500	2432492	500	359	579	286	177.5	33-17	CAD/Step
MEL17-RC-560	2432493	560	380	640		190	33-17	CAD/Step
MEL17-RC-630	2432494	630	410	715		205	41-17	CAD/Step
MEL17-RC-710	2432495	710	410	805		205	33-17	CAD/Step
MEL17-RC-800	2432496	800	500	915		250	33-17	CAD/Step
MEL17-RC-900	2432497	900	510	1025		255	33-17	CAD/Step
MEL17-RC-1000	2432480	1000	530	1140		265	33-17	CAD/Step
MEL17-RC-1200	2432482	1200	540	1365		270	41-17	CAD/Step
MEL17-RC-1400		1400	550	1590		275	33-17	CAD/Step

MEL17
