Elsvetsmuff med inv. gänga i mässing

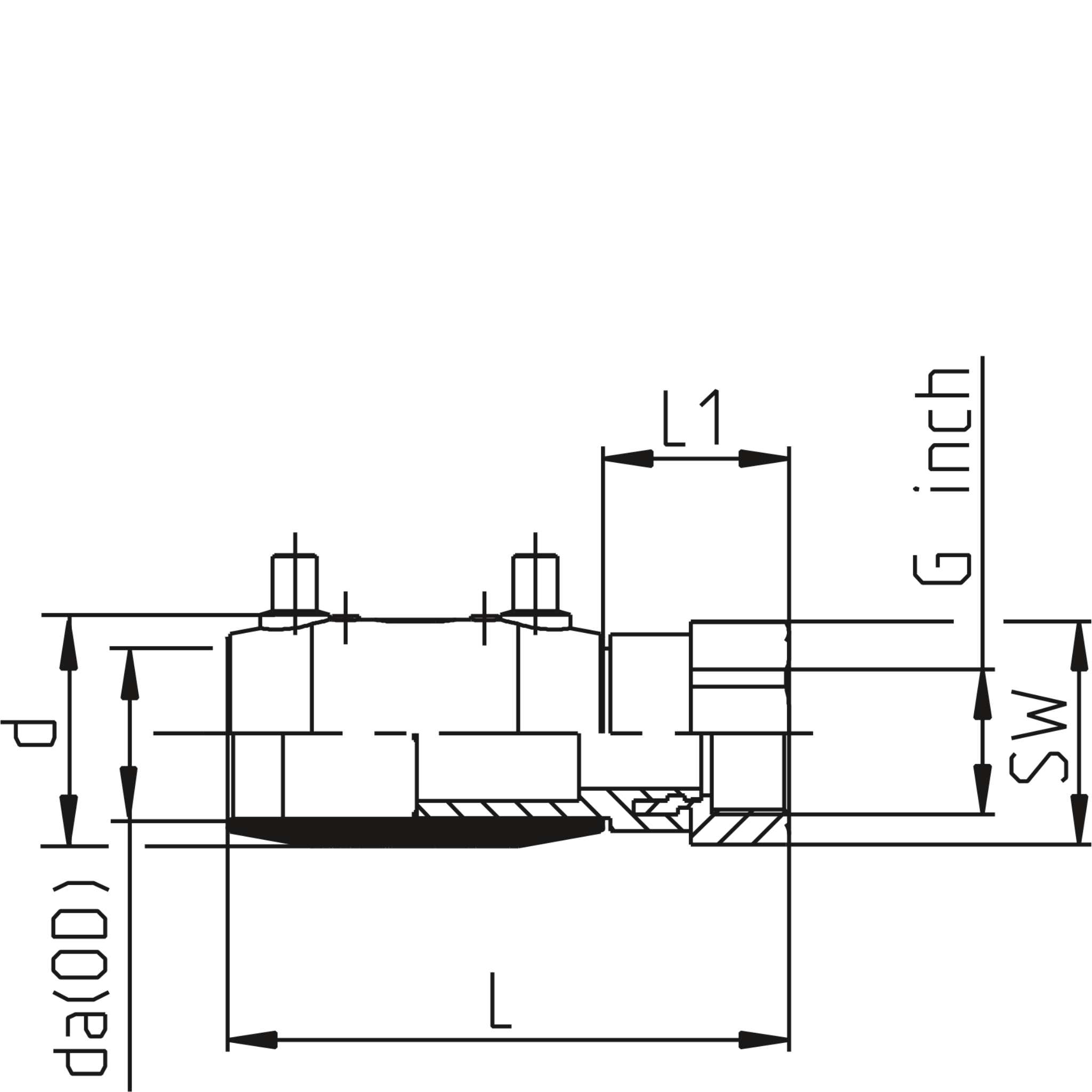

| Artikelnummer | RSK | d | da(OD) | L | L1 | SW | G | SDR | Filer |
|---|---|---|---|---|---|---|---|---|---|
| MEFLO-RC-020-R015 | 2430968 | 30 | 20 | 111 | 37 | 32 | 0,5" | 11 | CAD/Step |
| MEFLO-RC-025-R020 | 2430969 | 35 | 25 | 121 | 40 | 36 | 0,75" | 11 | CAD/Step |
| MEFLO-RC-032-R025 | 2430970 | 42 | 32 | 133 | 44 | 41 | 1" | 11 | CAD/Step |
| MEFLO-RC-040-R032 | 2430971 | 53 | 40 | 148 | 49 | 50 | 0,25" | 17-11 | CAD/Step |
| MEFLO-RC-050-R040 | 2430972 | 67 | 50 | 167 | 56 | 60 | 1,5" | 17-11 | CAD/Step |
| MEFLO-RC-063-R050 | 2430973 | 83 | 63 | 194 | 67 | 70 | 2" | 17-11 | CAD/Step |
| Artikelnummer | MEFLO-RC-020-R015 |
| RSK | 2430968 |
| d | 30 |
| da(OD) | 20 |
| L | 111 |
| L1 | 37 |
| SW | 32 |
| G | 0,5" |
| SDR | 11 |
| Artikelnummer | MEFLO-RC-025-R020 |
| RSK | 2430969 |
| d | 35 |
| da(OD) | 25 |
| L | 121 |
| L1 | 40 |
| SW | 36 |
| G | 0,75" |
| SDR | 11 |
| Artikelnummer | MEFLO-RC-032-R025 |
| RSK | 2430970 |
| d | 42 |
| da(OD) | 32 |
| L | 133 |
| L1 | 44 |
| SW | 41 |
| G | 1" |
| SDR | 11 |
| Artikelnummer | MEFLO-RC-040-R032 |
| RSK | 2430971 |
| d | 53 |
| da(OD) | 40 |
| L | 148 |
| L1 | 49 |
| SW | 50 |
| G | 0,25" |
| SDR | 17-11 |
| Artikelnummer | MEFLO-RC-050-R040 |
| RSK | 2430972 |
| d | 67 |
| da(OD) | 50 |
| L | 167 |
| L1 | 56 |
| SW | 60 |
| G | 1,5" |
| SDR | 17-11 |
| Artikelnummer | MEFLO-RC-063-R050 |
| RSK | 2430973 |
| d | 83 |
| da(OD) | 63 |
| L | 194 |
| L1 | 67 |
| SW | 70 |
| G | 2" |
| SDR | 17-11 |
