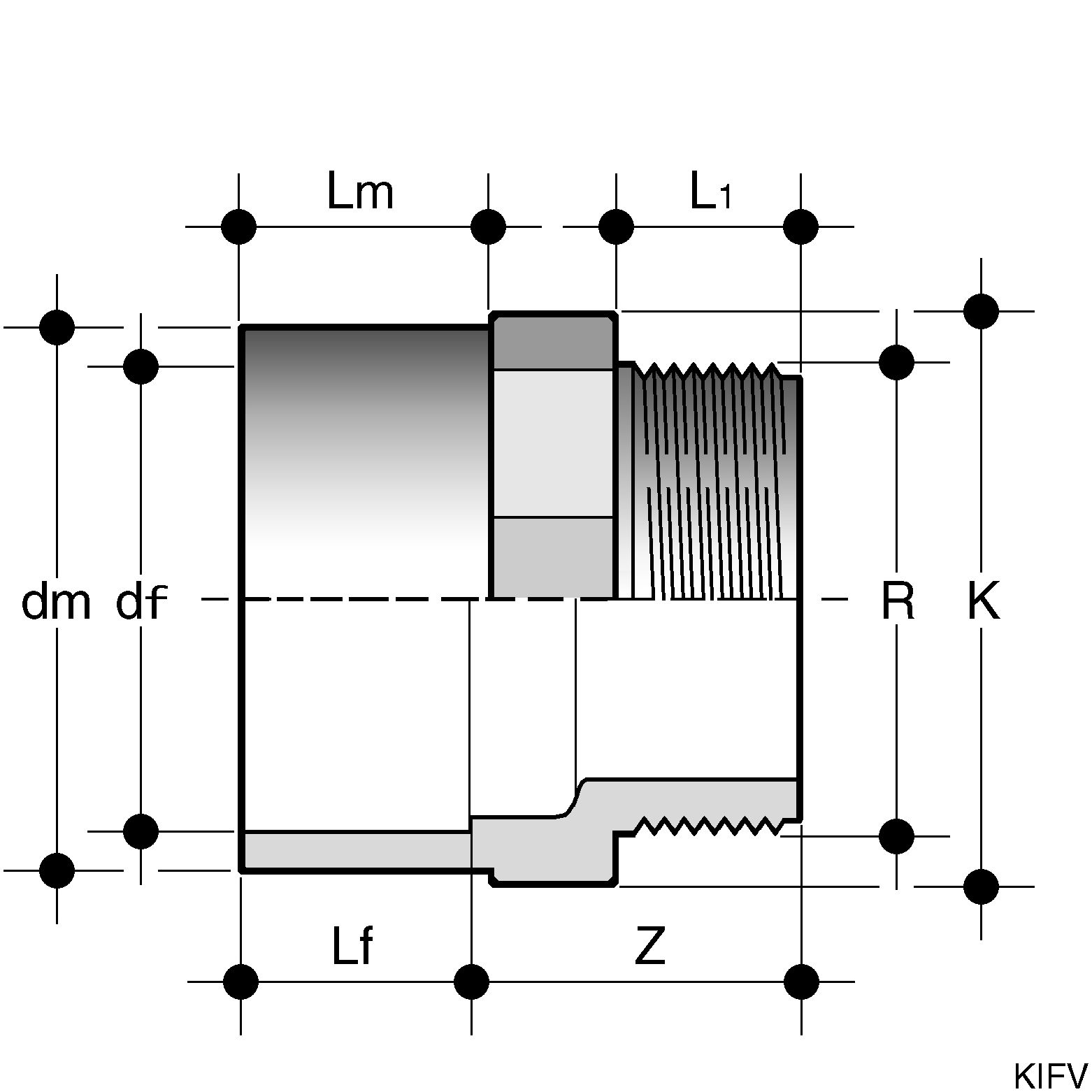

Nippel inv/utv.lim/utv.gänga
| Artikelnummer | RSK | dm*df*R | Lm | Lf | L1 | Z | K | Filer |
|---|---|---|---|---|---|---|---|---|
| KIFC 016-R010 | 2271715 | 20×16×3/8" | 16 | 14 | 11.4 | 20 | 22 | |
| KIFC 020-R015 | 2271716 | 25×20×1/2" | 19 | 16 | 15 | 25 | 28 | |
| KIFC 025-R020 | 32×25×3/4" | 22 | 19 | 16.3 | 27 | 34 | ||
| KIFC 032-R025 | 2271718 | 40×32×1" | 26 | 22 | 19.1 | 30.5 | 42 | |
| KIFC 040-R032 | 2271719 | 50×40×1 1/4" | 31 | 26 | 21.4 | 35 | 52 | |
| KIFC 050-R040 | 2271720 | 63×50×1 1/2" | 38 | 31 | 21.4 | 35 | 65 | |
| KIFC 063-R050 | 2271721 | 75×63×2" | 44 | 38 | 25.7 | 41 | 75 |
| Artikelnummer | KIFC 016-R010 |
| RSK | 2271715 |
| dm*df*R | 20×16×3/8" |
| Lm | 16 |
| Lf | 14 |
| L1 | 11.4 |
| Z | 20 |
| K | 22 |
| Artikelnummer | KIFC 020-R015 |
| RSK | 2271716 |
| dm*df*R | 25×20×1/2" |
| Lm | 19 |
| Lf | 16 |
| L1 | 15 |
| Z | 25 |
| K | 28 |
| Artikelnummer | KIFC 025-R020 |
| RSK | |
| dm*df*R | 32×25×3/4" |
| Lm | 22 |
| Lf | 19 |
| L1 | 16.3 |
| Z | 27 |
| K | 34 |
| Artikelnummer | KIFC 032-R025 |
| RSK | 2271718 |
| dm*df*R | 40×32×1" |
| Lm | 26 |
| Lf | 22 |
| L1 | 19.1 |
| Z | 30.5 |
| K | 42 |
| Artikelnummer | KIFC 040-R032 |
| RSK | 2271719 |
| dm*df*R | 50×40×1 1/4" |
| Lm | 31 |
| Lf | 26 |
| L1 | 21.4 |
| Z | 35 |
| K | 52 |
| Artikelnummer | KIFC 050-R040 |
| RSK | 2271720 |
| dm*df*R | 63×50×1 1/2" |
| Lm | 38 |
| Lf | 31 |
| L1 | 21.4 |
| Z | 35 |
| K | 65 |
| Artikelnummer | KIFC 063-R050 |
| RSK | 2271721 |
| dm*df*R | 75×63×2" |
| Lm | 44 |
| Lf | 38 |
| L1 | 25.7 |
| Z | 41 |
| K | 75 |
