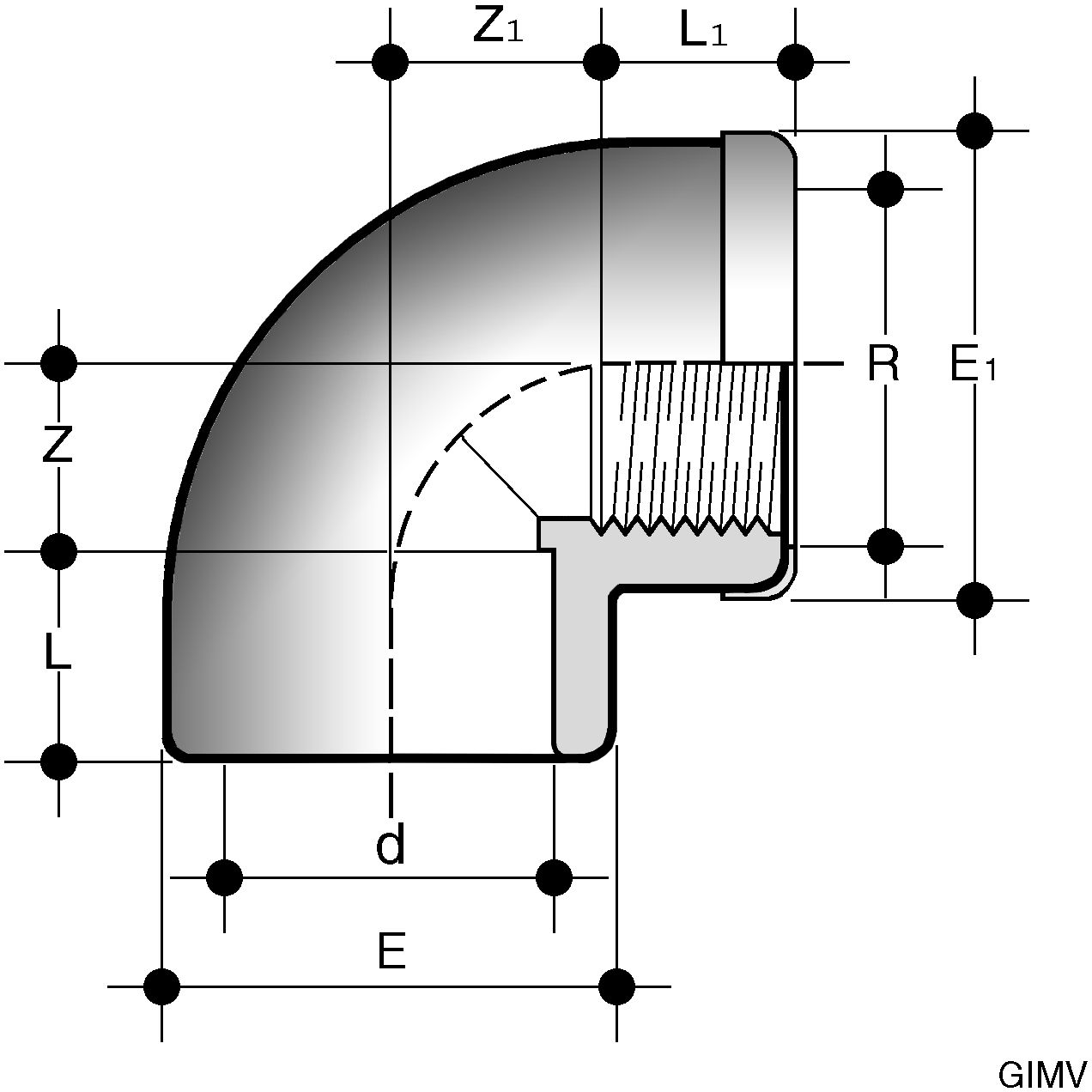

Vinkel 90° inv.lim/inv.gänga
| Artikelnummer | RSK | dxR | L | L1 | Z | Z1 | E | E1 | Filer |
|---|---|---|---|---|---|---|---|---|---|
| GIMC 016-R010 | 2261709 | 16×3/8" | 14 | 11.4 | 10 | 13 | 23.5 | 24.5 | |
| GIMC 020-R015 | 2261710 | 20×1/2" | 16 | 15 | 12 | 13 | 28.5 | 29.5 | |
| GIMC 025-R020 | 2261711 | 25×3/4" | 19 | 16.3 | 14 | 17 | 35 | 36 | |
| GIMC 032-R025 | 2261712 | 32×1" | 22 | 19.1 | 18 | 20.5 | 43 | 44 | |
| GIMC 040-R032 | 2261713 | 40×1 1/4" | 26 | 21.4 | 22 | 27 | 50 | 51 | |
| GIMC 050-R040 | 2261714 | 50×1 1/2" | 31 | 21.4 | 27 | 37 | 61 | 62 | |
| GIMC 063-R050 | 2261715 | 63×2" | 38 | 25.7 | 33 | 46 | 76 | 77 |
| Artikelnummer | GIMC 016-R010 |
| RSK | 2261709 |
| dxR | 16×3/8" |
| L | 14 |
| L1 | 11.4 |
| Z | 10 |
| Z1 | 13 |
| E | 23.5 |
| E1 | 24.5 |
| Artikelnummer | GIMC 020-R015 |
| RSK | 2261710 |
| dxR | 20×1/2" |
| L | 16 |
| L1 | 15 |
| Z | 12 |
| Z1 | 13 |
| E | 28.5 |
| E1 | 29.5 |
| Artikelnummer | GIMC 025-R020 |
| RSK | 2261711 |
| dxR | 25×3/4" |
| L | 19 |
| L1 | 16.3 |
| Z | 14 |
| Z1 | 17 |
| E | 35 |
| E1 | 36 |
| Artikelnummer | GIMC 032-R025 |
| RSK | 2261712 |
| dxR | 32×1" |
| L | 22 |
| L1 | 19.1 |
| Z | 18 |
| Z1 | 20.5 |
| E | 43 |
| E1 | 44 |
| Artikelnummer | GIMC 040-R032 |
| RSK | 2261713 |
| dxR | 40×1 1/4" |
| L | 26 |
| L1 | 21.4 |
| Z | 22 |
| Z1 | 27 |
| E | 50 |
| E1 | 51 |
| Artikelnummer | GIMC 050-R040 |
| RSK | 2261714 |
| dxR | 50×1 1/2" |
| L | 31 |
| L1 | 21.4 |
| Z | 27 |
| Z1 | 37 |
| E | 61 |
| E1 | 62 |
| Artikelnummer | GIMC 063-R050 |
| RSK | 2261715 |
| dxR | 63×2" |
| L | 38 |
| L1 | 25.7 |
| Z | 33 |
| Z1 | 46 |
| E | 76 |
| E1 | 77 |
