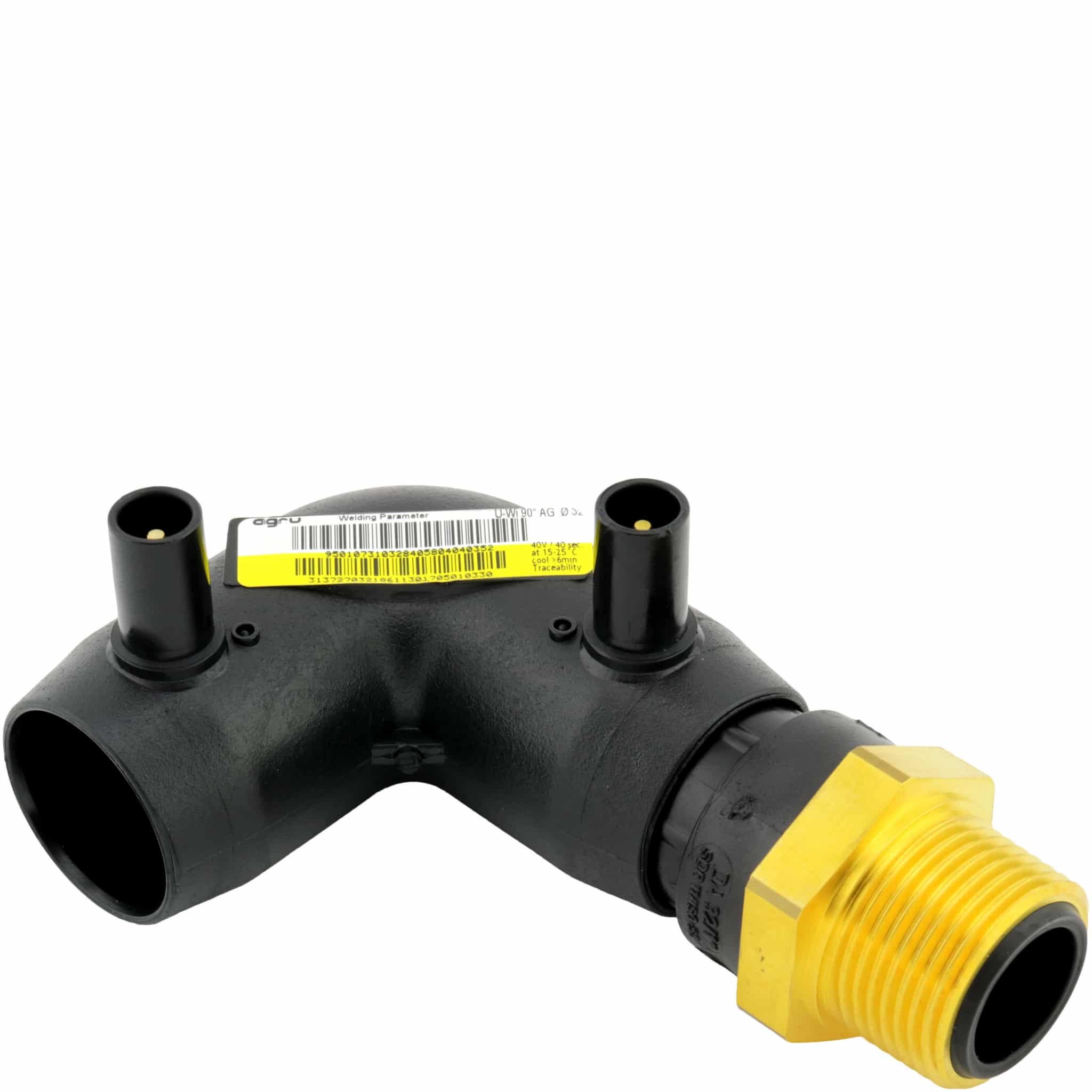

Elsvetsvinkel 90° med utv. gänga i mässing

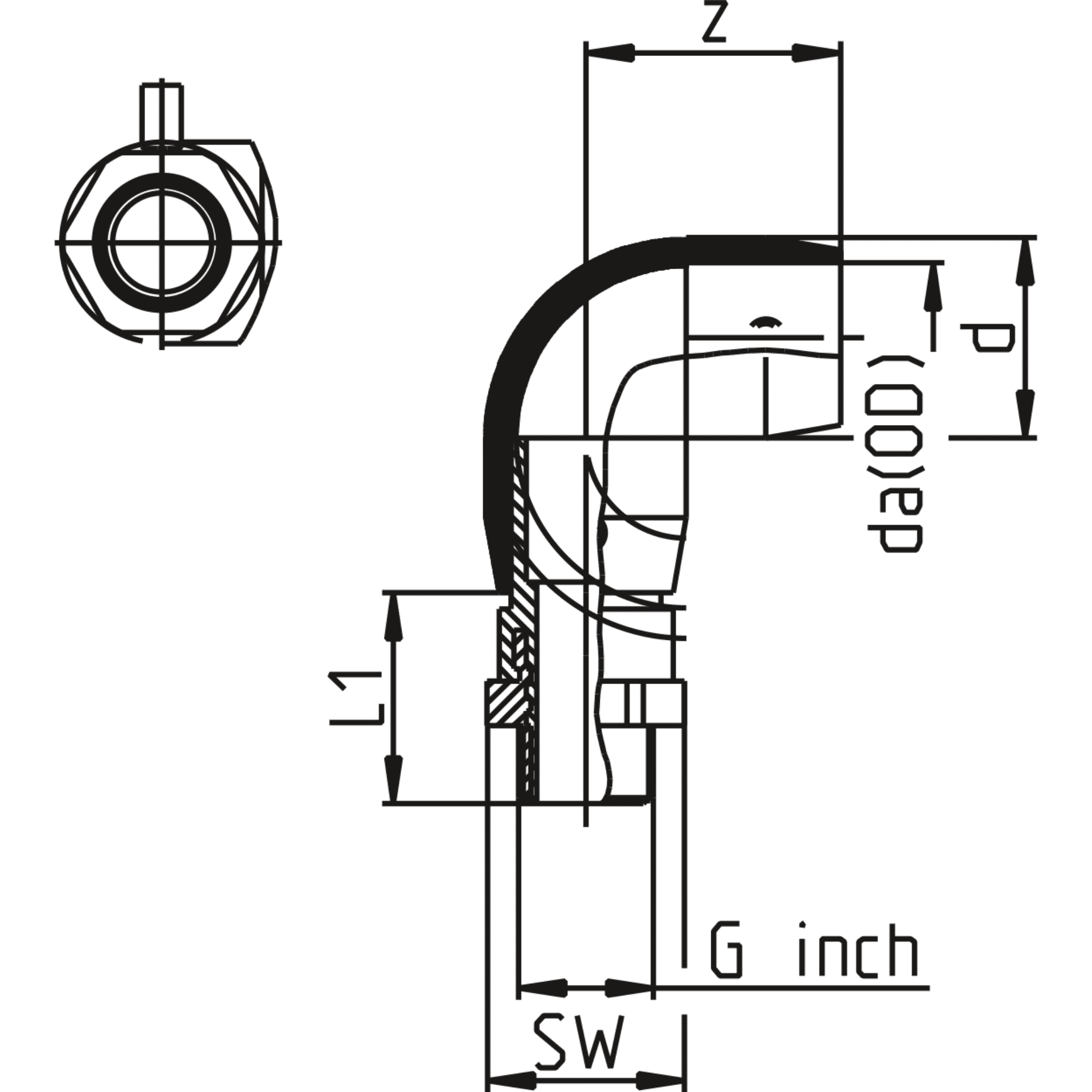

| Artikelnummer | RSK | Dimension | da(OD) | z | L1 | d | SW | G | SDR | Filer |
|---|---|---|---|---|---|---|---|---|---|---|
| GERLO-RC-020-R015 | 078600520 | 20×1/2 | 20 | 58 | 45 | 30 | 32 | 0,5" | 11 | CAD/Step |
| GERLO-RC-025-R020 | 078600525 | 25×3/4 | 25 | 61 | 46 | 35 | 36 | 0,75" | 11 | CAD/Step |
| GERLO-RC-032-R025 | 078601532 | 32×1 | 32 | 65 | 49 | 42 | 41 | 1" | 11 | CAD/Step |
| GERLO-RC-040-R032 | 078602540 | 40×1 1/4 | 40 | 75 | 52 | 53 | 50 | 1,25" | 17-11 | CAD/Step |
| GERLO-RC-050-R040 | 078603550 | 50×1 1/2 | 50 | 85 | 55 | 67 | 60 | 1,5" | 17-11 | CAD/Step |
| GERLO-RC-063-R050 | 078604563 | 63×2 | 63 | 100 | 62 | 83 | 70 | 2" | 17-11 | CAD/Step |
| Artikelnummer | GERLO-RC-020-R015 |
| RSK | 078600520 |
| Dimension | 20×1/2 |
| da(OD) | 20 |
| z | 58 |
| L1 | 45 |
| d | 30 |
| SW | 32 |
| G | 0,5" |
| SDR | 11 |
| Artikelnummer | GERLO-RC-025-R020 |
| RSK | 078600525 |
| Dimension | 25×3/4 |
| da(OD) | 25 |
| z | 61 |
| L1 | 46 |
| d | 35 |
| SW | 36 |
| G | 0,75" |
| SDR | 11 |
| Artikelnummer | GERLO-RC-032-R025 |
| RSK | 078601532 |
| Dimension | 32×1 |
| da(OD) | 32 |
| z | 65 |
| L1 | 49 |
| d | 42 |
| SW | 41 |
| G | 1" |
| SDR | 11 |
| Artikelnummer | GERLO-RC-040-R032 |
| RSK | 078602540 |
| Dimension | 40×1 1/4 |
| da(OD) | 40 |
| z | 75 |
| L1 | 52 |
| d | 53 |
| SW | 50 |
| G | 1,25" |
| SDR | 17-11 |
| Artikelnummer | GERLO-RC-050-R040 |
| RSK | 078603550 |
| Dimension | 50×1 1/2 |
| da(OD) | 50 |
| z | 85 |
| L1 | 55 |
| d | 67 |
| SW | 60 |
| G | 1,5" |
| SDR | 17-11 |
| Artikelnummer | GERLO-RC-063-R050 |
| RSK | 078604563 |
| Dimension | 63×2 |
| da(OD) | 63 |
| z | 100 |
| L1 | 62 |
| d | 83 |
| SW | 70 |
| G | 2" |
| SDR | 17-11 |
