DIV

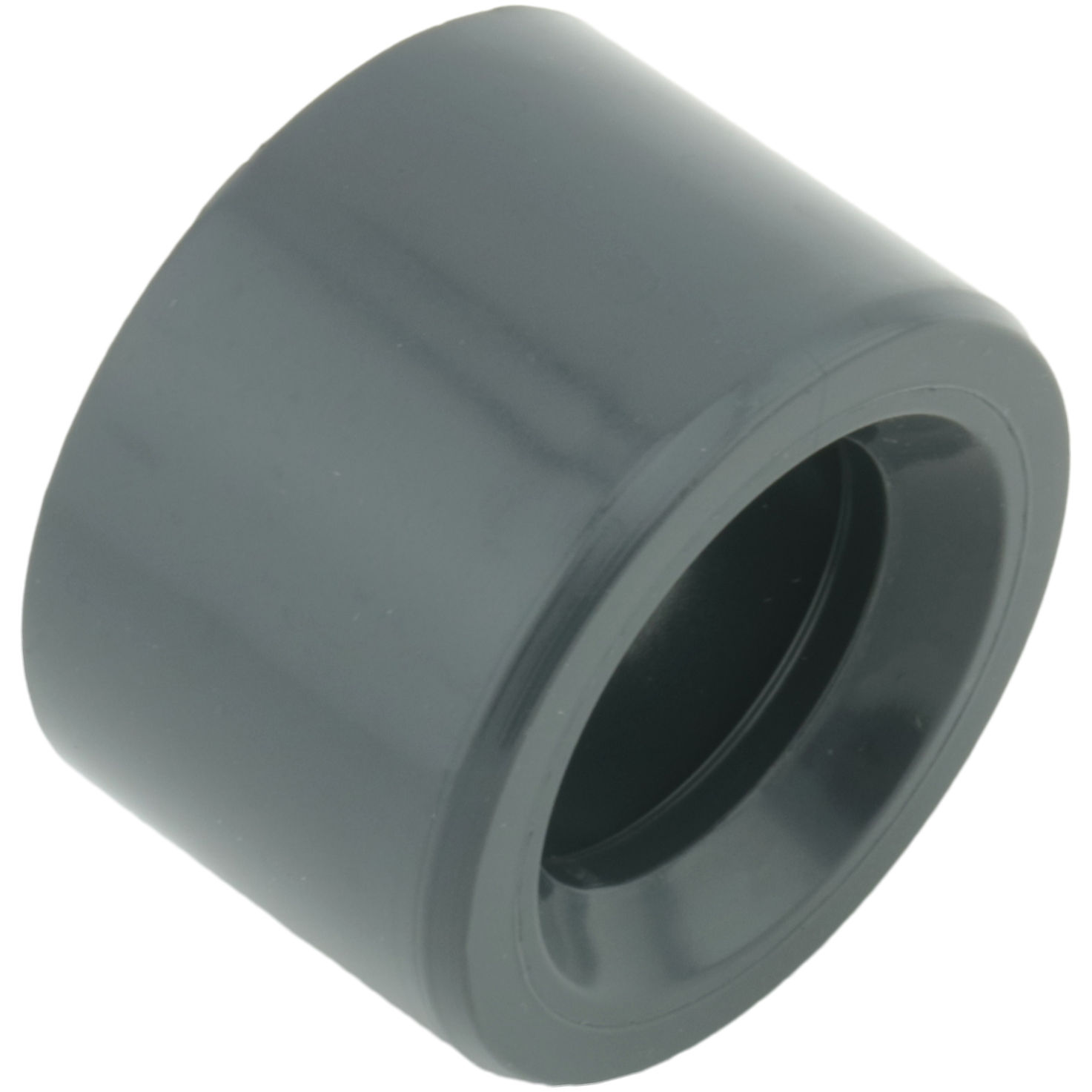

PVC Bussning

  • PVC-U Bussning
  • PN 16 d16-d225 PN 10 d250-d315
  • Utvändig/invändig lim
Visa alla mått +

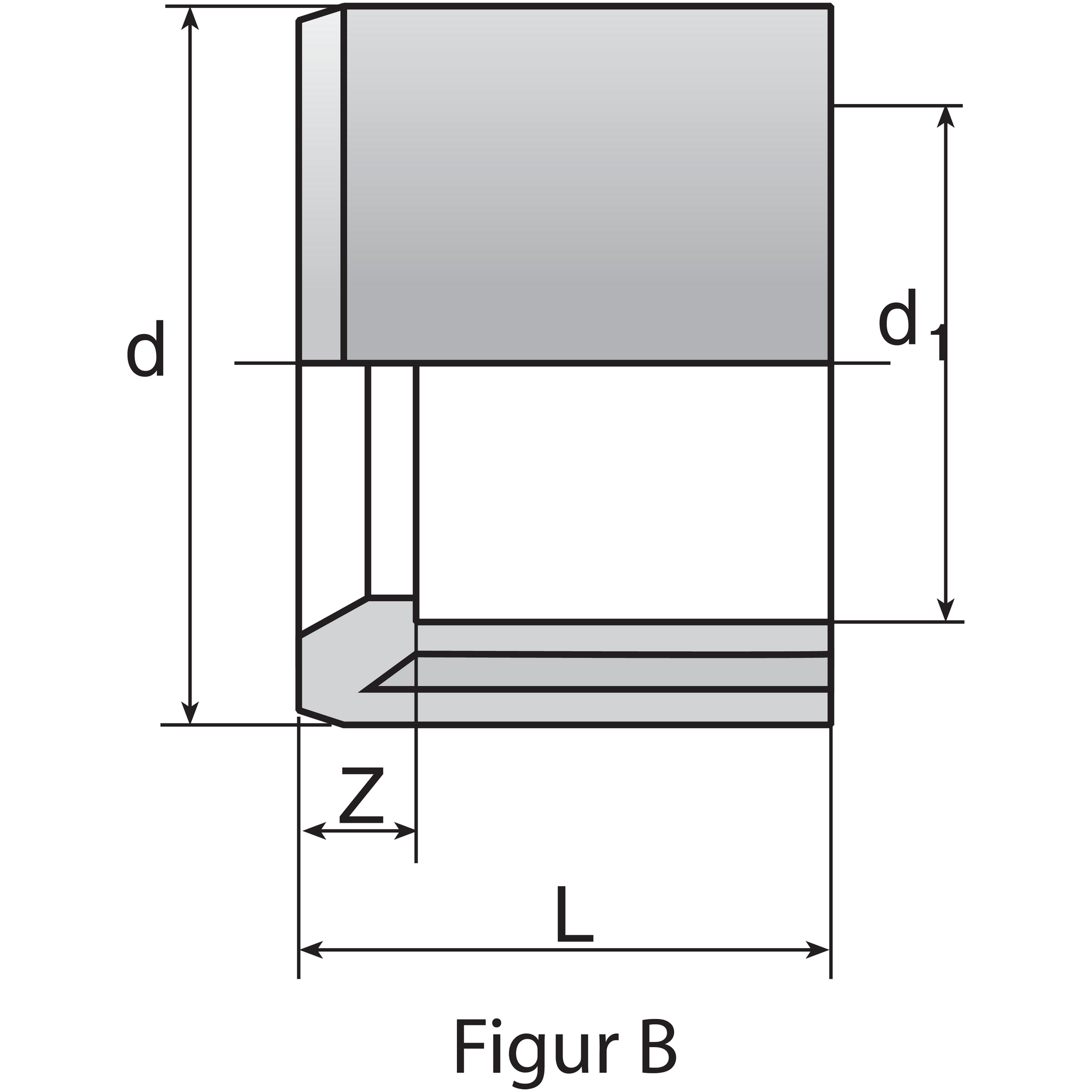

Artikelnummer RSK d×d1LZFigViktFiler
DIV 016-012 2269413 16×12142A1 g CAD/Step
DIV 020-016 2269421 20×16162A3 g CAD/Step
DIV 025-020 2269447 25×20193A5 g CAD/Step
DIV 032-020 2269462 32×20226A15 g CAD/Step
DIV 032-025 2269470 32×25223.5A10 g CAD/Step
DIV 040-020 2269496 40×20269B25 g CAD/Step
DIV 040-025 2269504 40×25267B24 g CAD/Step
DIV 040-032 2269512 40×32264A17 g CAD/Step
DIV 050-032 2269538 50×32318.5B35 g CAD/Step
DIV 050-040 2269546 50×40315A32 g CAD/Step
DIV 063-032 2269561 63×323816B73 g CAD/Step
DIV 063-040 2269579 63×403811.5B75 g CAD/Step
DIV 063-050 2269587 63×50387A65 g CAD/Step
DIV 075-050 2269603 75×504413B120 g CAD/Step
DIV 075-063 2269611 75×63446A85 g CAD/Step
DIV 090-050 2269637 90×505120B200 g CAD/Step
DIV 090-063 2269645 90×635113B210 g CAD/Step
DIV 090-075 2269652 90×75517A150 g CAD/Step
DIV 110-063 2269660 110×636123B340 g CAD/Step
DIV 110-075 2269678 110×756117B360 g CAD/Step
DIV 110-090 2269686 110×90619A270 g CAD/Step
DIV 125-110 2269710 125×110698A285 g CAD/Step
DIV 140-090 2269736 140×907625B730 g CAD/Step
DIV 140-110 2269744 140×1107617A645 g CAD/Step
DIV 140-125 2269751 140×125769.5A350 g CAD/Step
DIV 160-090 2269777 160×908635B1040 g CAD/Step
DIV 160-110 2269785 160×1108624B945 g CAD/Step
DIV 160-140 2269793 160×1408610A565 g CAD/Step
DIV 200-110 2269451 200x110109
DIV 200-160 2269876 200×16010920B710 g CAD/Step
DIV 225-160 2269769 225×16011933B1620 g CAD/Step
DIV 225-200 2269868 225×20011913A1380 g CAD/Step
DIV 250-160 2269452 250×16013245B3100 g CAD/Step
DIV 250-200 2269453 250×20013225A3500 g CAD/Step
DIV 250-225 2269455 250×22513212A2100 g CAD/Step
DIV 280-200 2269456 280×20014640B4100 g CAD/Step
DIV 280-225 2269457 280×22514727B4300 g CAD/Step
DIV 280-250 2269458 280×25014715A2500 g CAD/Step
DIV 315-200 2269459 315×20016558B8650 g CAD/Step
DIV 315-225 2269460 315×22516545B8100 g CAD/Step
DIV 315-250 2269461 315×25016533B5080 g CAD/Step
DIV 315-280 2269464 315×28016518A4590 g CAD/Step
DIV 355-315 2269465 355×31518420A
Datablad

Teknisk information
