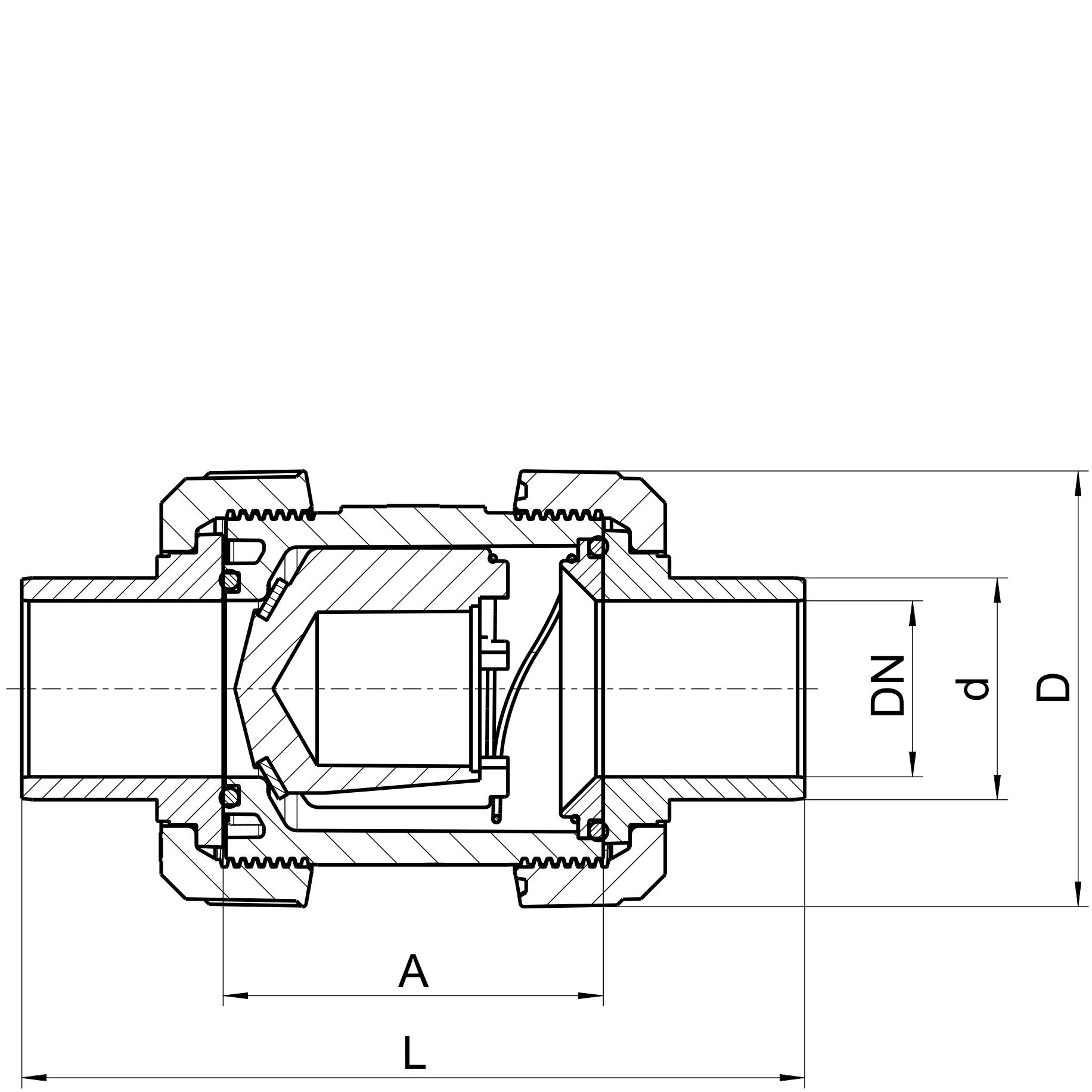

Backventil utv. svets fjäderstängande
| Artikelnummer | RSK | d | DN | D | A | L | Filer |
|---|---|---|---|---|---|---|---|
| CVDF-V-016 | 16 | 10 | 114 | 62 | 52.5 | CAD/Step | |
| CVDF-V-020 | 20 | 15 | 125 | 62 | 52.5 | CAD/Step | |
| CVDF-V-025 | 25 | 20 | 143 | 69 | 63 | CAD/Step | |
| CVDF-V-032 | 32 | 25 | 152 | 73 | 70 | CAD/Step | |
| CVDF-V-040 | 40 | 32 | 171 | 83 | 83 | CAD/Step | |
| CVDF-V-050 | 50 | 40 | 191 | 94 | 98.5 | CAD/Step | |
| CVDF-V-063 | 63 | 50 | 220 | 108 | 118 | CAD/Step | |
| CVDF-V-075 | 75 | 65 | 297 | 133 | 151 | CAD/Step | |
| CVDF-V-090 | 90 | 80 | 295 | 160 | 183 | CAD/Step | |
| CVDF-V-110 | 110 | 80 | 320 | 160 | 183 | CAD/Step |
| Artikelnummer | CVDF-V-016 |
| RSK | |
| d | 16 |
| DN | 10 |
| D | 114 |
| A | 62 |
| L | 52.5 |
| Artikelnummer | CVDF-V-020 |
| RSK | |
| d | 20 |
| DN | 15 |
| D | 125 |
| A | 62 |
| L | 52.5 |
| Artikelnummer | CVDF-V-025 |
| RSK | |
| d | 25 |
| DN | 20 |
| D | 143 |
| A | 69 |
| L | 63 |
| Artikelnummer | CVDF-V-032 |
| RSK | |
| d | 32 |
| DN | 25 |
| D | 152 |
| A | 73 |
| L | 70 |
| Artikelnummer | CVDF-V-040 |
| RSK | |
| d | 40 |
| DN | 32 |
| D | 171 |
| A | 83 |
| L | 83 |
| Artikelnummer | CVDF-V-050 |
| RSK | |
| d | 50 |
| DN | 40 |
| D | 191 |
| A | 94 |
| L | 98.5 |
| Artikelnummer | CVDF-V-063 |
| RSK | |
| d | 63 |
| DN | 50 |
| D | 220 |
| A | 108 |
| L | 118 |
| Artikelnummer | CVDF-V-075 |
| RSK | |
| d | 75 |
| DN | 65 |
| D | 297 |
| A | 133 |
| L | 151 |
| Artikelnummer | CVDF-V-090 |
| RSK | |
| d | 90 |
| DN | 80 |
| D | 295 |
| A | 160 |
| L | 183 |
| Artikelnummer | CVDF-V-110 |
| RSK | |
| d | 110 |
| DN | 80 |
| D | 320 |
| A | 160 |
| L | 183 |
