BIFOV

PVC Union inv.lim/inv.gänga

Visa alla mått +

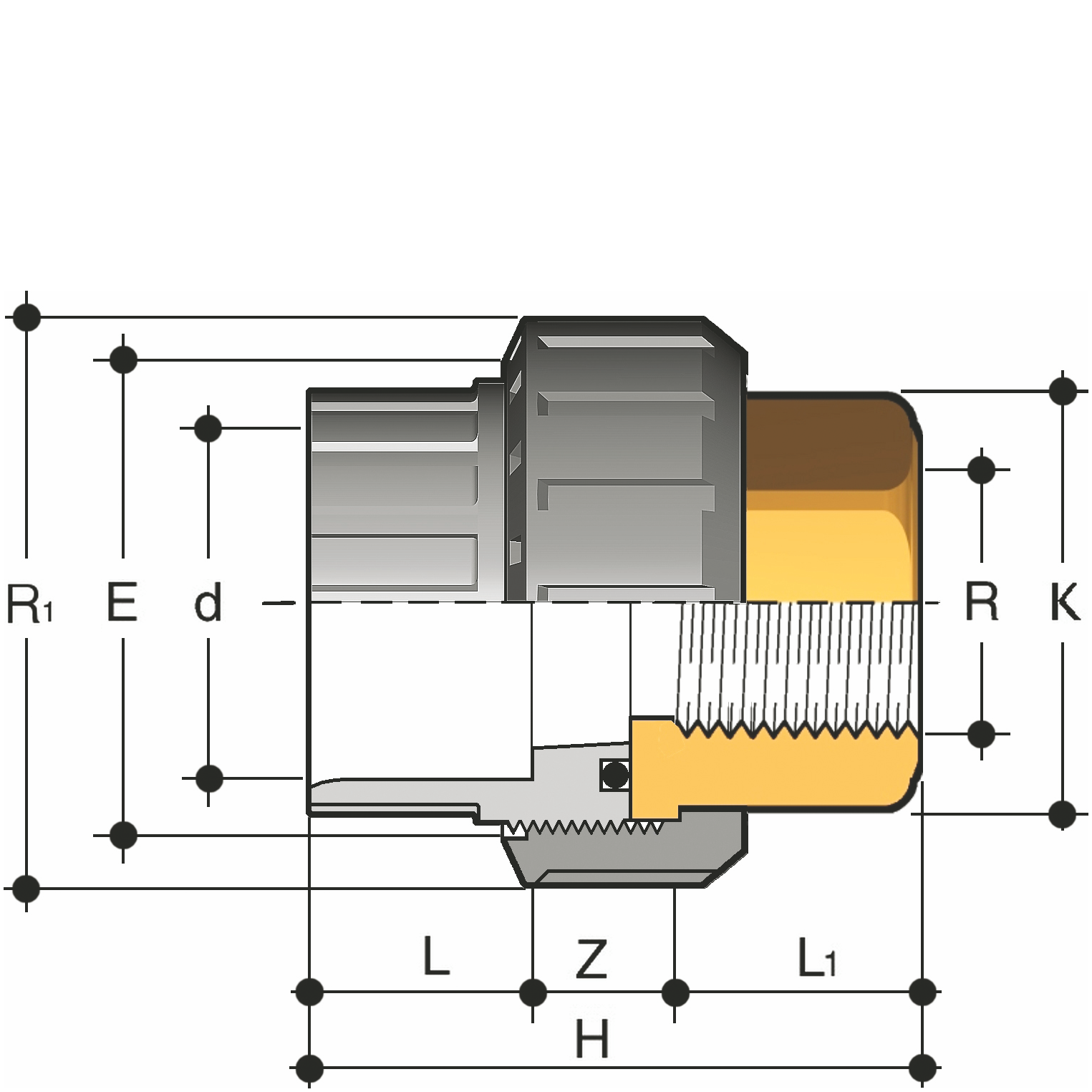

Artikelnummer	RSK	d x R	R1	L1	Z	L	H	K	E	Filer
BIFOV 016-R010	2271816	16×3/8"	3/4"	13.5	18	14	45.5	20	33	CAD/Step
BIFOV 020-R015	2271817	20×1/2"	1"	16.5	16	16	48.5	25	41	CAD/Step
BIFOV 025-R020	2271818	25×3/4"	1 1/4"	18.5	17	19	54.5	32	50	CAD/Step
BIFOV 032-R025	2271819	32×1"	1 1/2"	19.5	18	22	59.5	38	58	CAD/Step
BIFOV 040-R032	2271820	40×1 1/4"	2	21.5	21	26	68.5	48	72	CAD/Step
BIFOV 050-R040	2271821	50×1 1/2"	2 1/4"	23	24.5	31	84.5	55	79	CAD/Step
BIFOV 063-R050	2271822	63×2"	2 3/4"	27	29.5	38	94.5	69	98	CAD/Step

Datablad

Teknisk information
