924T

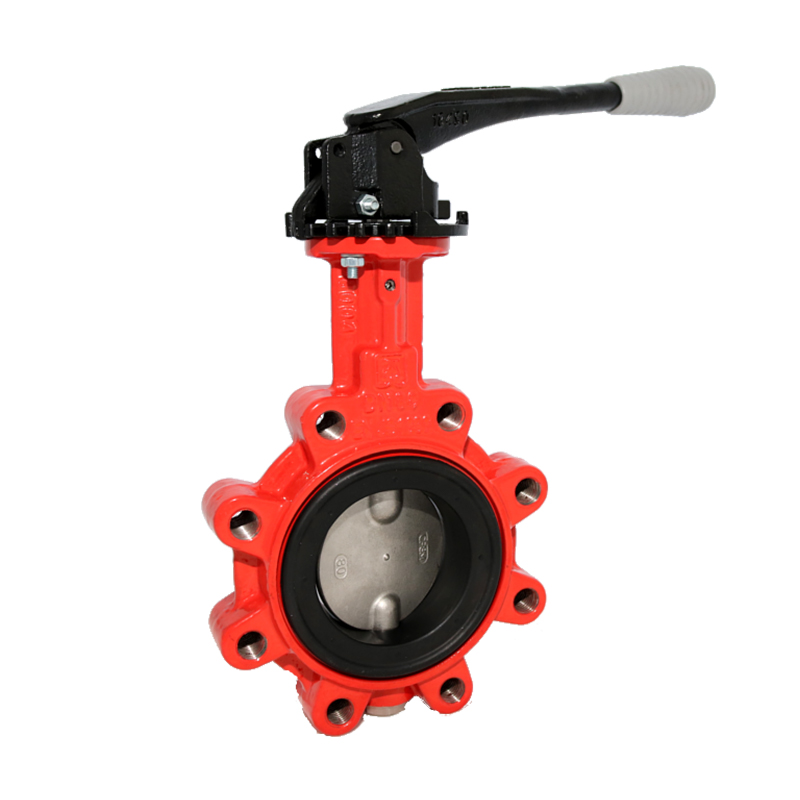

Syrafast Vridspjäll Manuell Handtag Luggat EPDM

Visa alla mått +

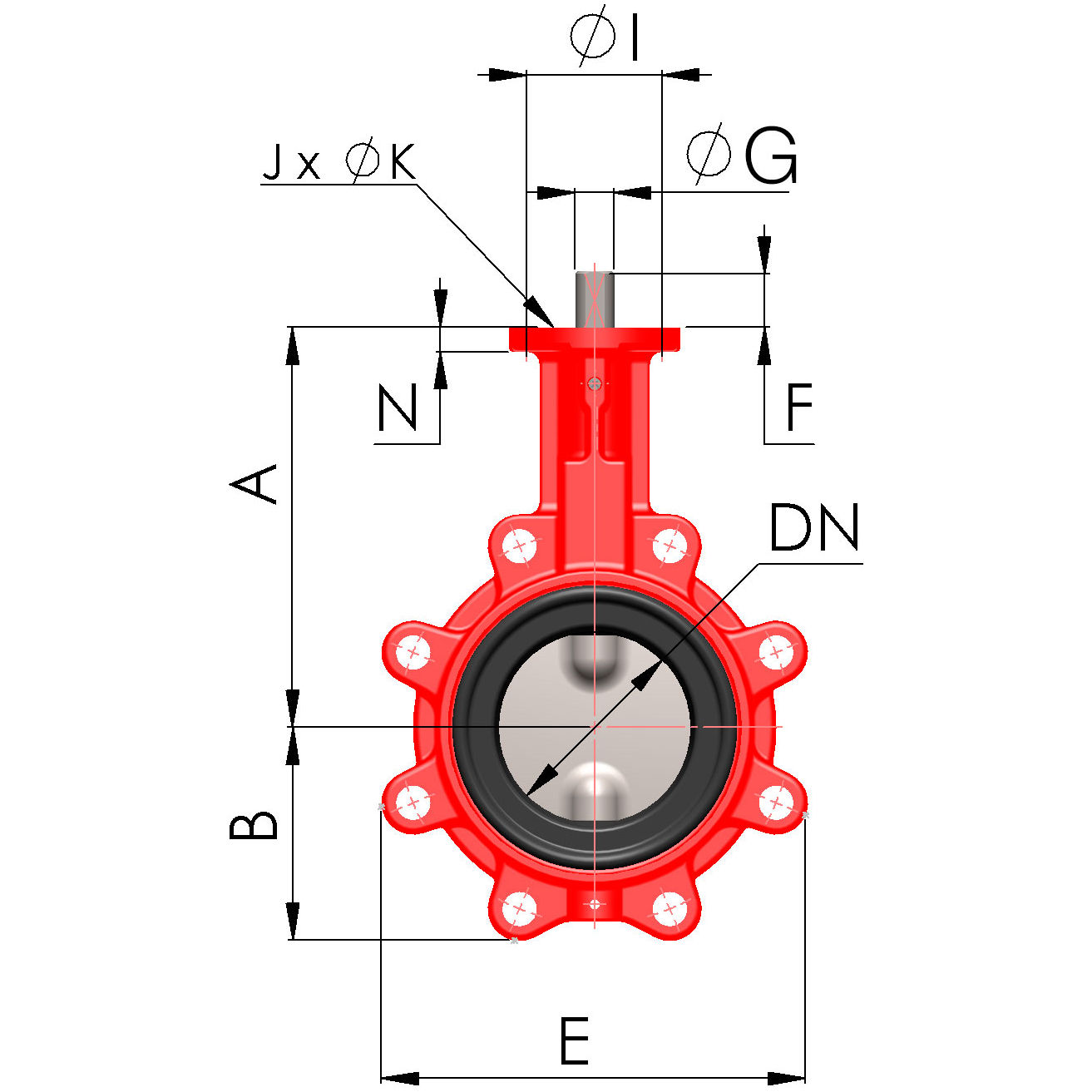

Artikelnummer	DN	A	B	N	F	E	I	G	J	K
924T-E-0050	50	146	64	8	25	115	50	14	4	7
924T-E-0065	65	153.5	72	8	25	129	50	14	4	7
924T-E-0080	80	163	89	8	25	174	50	14	4	7
924T-E-0100	100	172.5	105	8	25	204	50	14	4	7
924T-E-0125	125	192.5	118	10	25	234	70	17	4	9
924T-E-0150	150	205	128	10	25	255	70	17	4	9
924T-E-0200	200	234	166	14	25	319	70	17	4	9

Datablad
